CRL Satin Anodized Custom Size All Electric Fully Automatic Deluxe Sliding Service Window OXXO With Aluminum Full Bottom Track - EDW3402A

Finish: SATIN ANODIZED
This OXXO All Electric Fully Automatic Deluxe Sliding Service Window is perfect for projects that require hands-free operation to take care of transactions. Operation is simple: The clerk steps in front of the window's infrared sensing device and the two center panels slide outward, leaving a generous size service opening. The sliding panels remain open until the clerk walks away. (Open/Close Push Button also included). Each window is custom made to your specifications. OXXO Series Windows include two keyed locks. NOTE: Minimum overall frame width is 48" (1.22 m).
OXXO Series Double Sliding Panels Made to Your Size
Stock or Custom Finishes

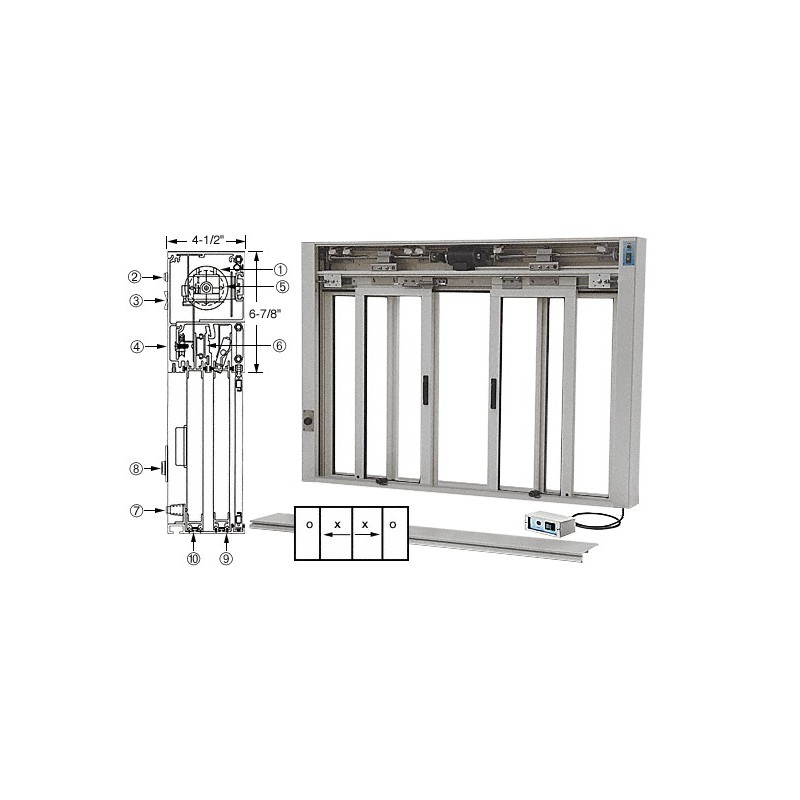

Drawings and Specifications are Available
Catalog Number: EDW3402A
Also Available in These Catalogs:
CRL53R Glass & Glazing Catalog, PAGE 613G
TH18 Transaction and Security Hardware Catalog, PAGE T417
Color: Satin Anodized
Width and Height: Specify
Sill Condition: Aluminum Full Bottom Track
Panels : O = Fixed, X = Sliding
Ship Via: No UPS - Common Carrier Only
CATALOG NUMBER DESCRIPTION COLOR
EDW3402A CRL Satin Anodized Custom Size All Electric Fully Automatic Deluxe Sliding Service Window OXXO With Aluminum Full Bottom Track
EDW3402CA CRL Custom Anodized Custom Size All Electric Fully Automatic Deluxe Sliding Service Window OXXO With Aluminum Full Bottom Track
EDW3402DU CRL Dark Bronze Custom Size All Electric Fully Automatic Deluxe Sliding Service Window OXXO with Aluminum Full Bottom Track
EDW3402K CRL KYNAR Paint (Specify) Custom Size All Electric Fully Automatic Deluxe Sliding Service Window OXXO With Aluminum Full Bottom Track
EDW3402P CRL Powder Painted (Specify) Custom Size All Electric Fully Automatic Deluxe Sliding Service Window OXXO With Aluminum Full Bottom Track
CUSTOM WINDOW SPECIFICATIONS:
Materials: Aluminum Extrusions; Pile Weatherstrip; Glazing Vinyl; Stainless Steel Control Panel Assembly; Keyed Locks
Glazing Options: 1/4" to 1/2" (6 to 12 mm) Tempered, Laminated or Tinted Glass; 1/2" (305 mm) Insulating Glass Unit
Finishes: Satin Anodized, Duranodic Bronze, RAL Powder Painted or Kynar Painted
Other Options: Multiple Infrared Sensing Devices; External "Plug-In" Transformer; Fly Fan Switch
Power Requirements: Hardwire to 115V AC Power Source
