CRL Polished Chrome Atlas Glass Door Hinge - ATL01CH
This innovative CRL Atlas Series 'All-Glass' Door Hinge gives you the best of two worlds; minimal hardware and self-centering action, all wrapped up in a stylish, heavy-duty Hinge. Two of these double-acting Hinges will allow you to create 'all-glass' doors or gates weighing up to 140 lbs. (63.5 kg) with a maximum width of 39" (1 m).
Self-Centering Function
Hold Open at 90 Degrees
Use Monolithic Tempered Glass
Easy to Set Closed Position
Ideal for Large Interior 5/16", 3/8" or 1/2" (8, 10 or 12 mm) Tempered Glass Doors and Gates
Easy Closed Position Adjustment for Double Door or Inline Panel Applications
Four Architectural Finishes
Self-Centering Function
Hold Open at 90 Degrees
Use Monolithic Tempered Glass
Easy to Set Closed Position
Ideal for Large Interior 5/16", 3/8" or 1/2" (8, 10 or 12 mm) Tempered Glass Doors and Gates
Easy Closed Position Adjustment for Double Door or Inline Panel Applications
Four Architectural Finishes
Catalog Number: ATL01CH
Also Available in These Catalogs:
SD16 Frameless Shower Door Hardware 2015, PAGE 126S
CRL14D Door and Entrance Catalog, PAGE 154D
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 176J
AH18 Architectural Hardware Catalog 2018, PAGE 234Z
CRL63A Architectural Hardware Master, PAGE 355H
CRL53R Glass & Glazing Catalog, PAGE 397G
CRL63R Architectural Railing Systems, PAGE 516R
CRL93A Shower Door, PAGE SD032
Color: Polished Chrome

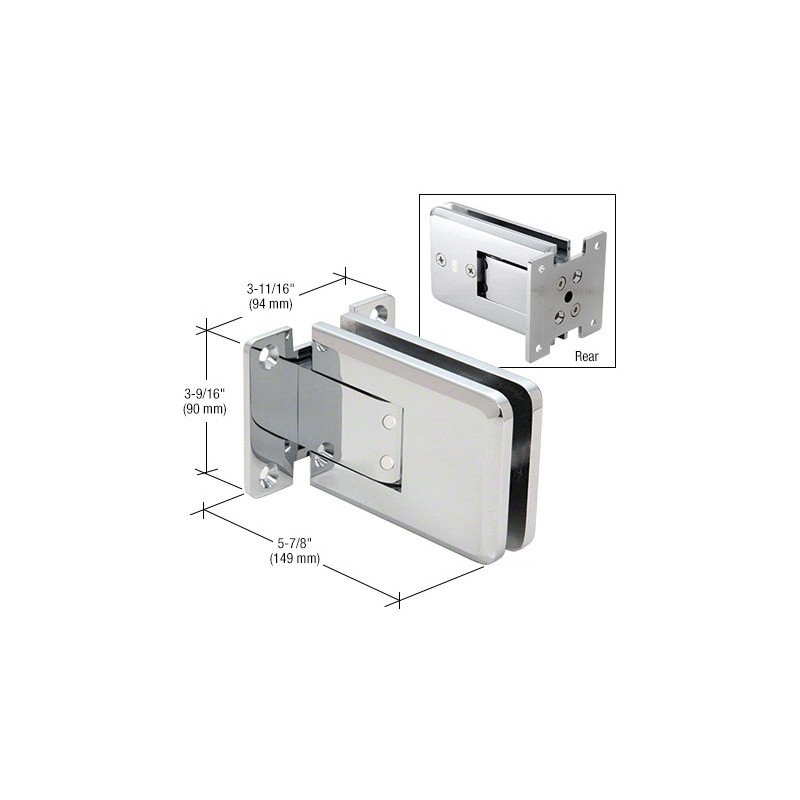

Height: 3-9/16" (90 mm)
Width: 3-11/16" (94 mm)
Length: 5-7/8" (149 mm)
Ship Via: Can Ship UPS
Shipping Weight: 6.5 lb (2.95kg)
Minimum Order: 1 Each
Also Available in These Catalogs:
SD16 Frameless Shower Door Hardware 2015, PAGE 126S
CRL14D Door and Entrance Catalog, PAGE 154D
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 176J
AH18 Architectural Hardware Catalog 2018, PAGE 234Z
CRL63A Architectural Hardware Master, PAGE 355H
CRL53R Glass & Glazing Catalog, PAGE 397G
CRL63R Architectural Railing Systems, PAGE 516R
CRL93A Shower Door, PAGE SD032
Color: Polished Chrome
Height: 3-9/16" (90 mm)
Width: 3-11/16" (94 mm)
Length: 5-7/8" (149 mm)
Ship Via: Can Ship UPS
Shipping Weight: 6.5 lb (2.95kg)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
ATL01CH CRL Polished Chrome Atlas Glass Door Hinge
ATL010RB CRL Oil Rubbed Bronze Atlas Glass Door Hinge
ATL01BN CRL Brushed Nickel Atlas Glass Door Hinge
ATL01CH CRL Polished Chrome Atlas Glass Door Hinge
ATL010RB CRL Oil Rubbed Bronze Atlas Glass Door Hinge
ATL01BN CRL Brushed Nickel Atlas Glass Door Hinge
The automatic self-centering function with adjustable spring strength eliminates the need for any closer mechanism, and will self-center the door from any position. When fully opened, the Atlas Hinge will hold open at 90 degrees. These Hinges offer easy to set custom closed positioning.
The solid brass construction and stainless steel components make the Atlas Hinge a natural for environments that may encounter excess moisture.
NOTE: Do not exceed two Hinges per door.
Glass Thicknesses: 5/16" to 1/2" (8 to 12 mm)
Construction: Solid Brass
Hinge Swings: 90 Degrees Inwards and Outwards
Closing Type: Self-Centering From 0 to 50 Degrees and Precise Closing to 0 Degrees
Special Feature: Holds Open at 90 Degrees;
Easy to Set Closed Position
Notch and Hole Required
Includes: Gaskets, Phillips Screws, and Glass Fabrication Dimensions
The solid brass construction and stainless steel components make the Atlas Hinge a natural for environments that may encounter excess moisture.
NOTE: Do not exceed two Hinges per door.
Glass Thicknesses: 5/16" to 1/2" (8 to 12 mm)
Construction: Solid Brass
Hinge Swings: 90 Degrees Inwards and Outwards
Closing Type: Self-Centering From 0 to 50 Degrees and Precise Closing to 0 Degrees
Special Feature: Holds Open at 90 Degrees;
Easy to Set Closed Position
Notch and Hole Required
Includes: Gaskets, Phillips Screws, and Glass Fabrication Dimensions
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting Glass Experts customer service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
