CRL Brushed Nickel Beretta Crescent Glass Door Hinge - BH01BN

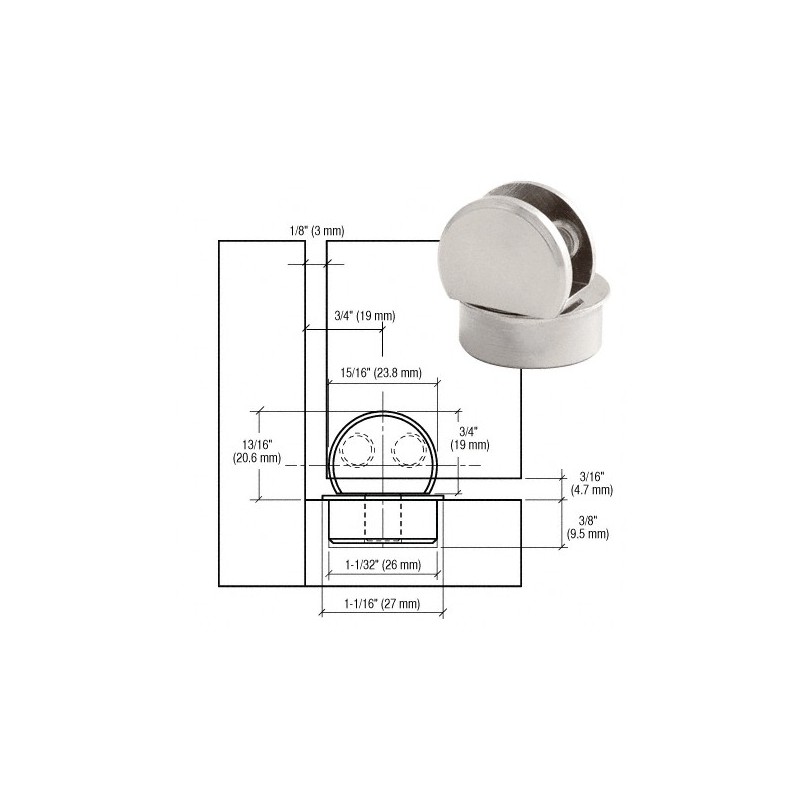

CRL's Berretta Crescent Glass Door Hinges are for 1/4" (6 mm) thick glass. Distinctively designed, the Hinges close to a self-centering position. The Hinges require a 1-1/32" (26 mm) hole drilled into the wood for installation. A phillips head screw in the Hinge base locks and holds the Hinge in position. The maximum recommended door size is 18" (457 mm) wide x 47" (1.20 m) high. Maximum door weight should not exceed 17-1/2 lbs. (8 kgs). Each pack contains two Hinges, one upper and one lower.
For 1/4" (6 mm) Glass
Installs Into Wood Cabinet
Requires One Hole for Installation
No Glass Fabrication Required
Catalog Number: BH01BN
Also Available in These Catalogs:
CRL53R Glass & Glazing Catalog, PAGE 408G
Color: Brushed Nickel
Ship Via: Can Ship UPS
Minimum Order: 1 Pair
CATALOG NUMBER DESCRIPTION COLOR
BH01BN CRL Brushed Nickel Beretta Crescent Glass Door Hinge
BH01CH CRL Chrome Beretta Crescent Glass Door Hinge
No additional product information available at this time.
