CRL Brushed Nickel Beretta Transom/Wall Mount Pivot Patch - BS40BN

Finish: BRUSHED NICKEL
$439.38
Quantity

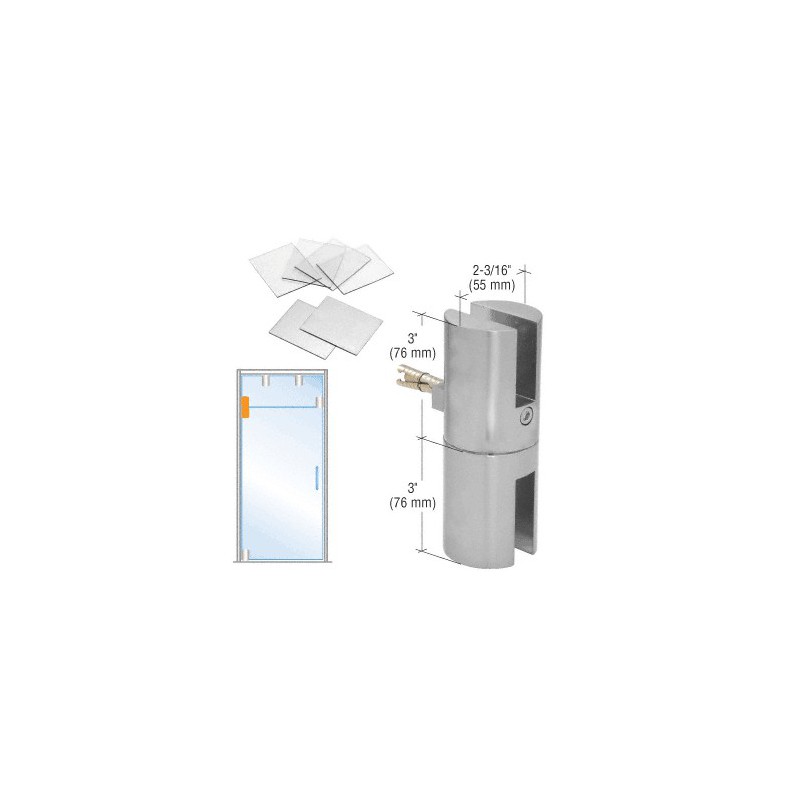

This CRL Beretta Transom/Wall Mount Pivot Patch provides both the Top Door Patch and the Top Pivot for your door when a transom is used. It attaches to both the transom and the wall, or jamb, for rigidity.
For Use with 3/8" to 1/2" (10 to 12 mm) Thick Tempered Glass
Available in Polished Chrome and Brushed Nickel Finishes
Non-Handed
For Light Duty Use Only
Catalog Number: BS40BN
Also Available in These Catalogs:
CRL63A Architectural Hardware Master, PAGE 359H
CRL53R Glass & Glazing Catalog, PAGE 539G
Color: Brushed Nickel
Ship Via: Can Ship UPS
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
BS40BN CRL Brushed Nickel Beretta Transom/Wall Mount Pivot Patch
BS40CH CRL Chrome Beretta Transom/Wall Mount Pivot Patch
Additional Beretta Fixed Glass Fittings or an alternate method of attachment must be used to securely install the transom glass.
NOTE: The door glass requires a corner notch when using this patch. Template, clear gaskets, and stainless steel securing plates included.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting Glass Experts customer service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
