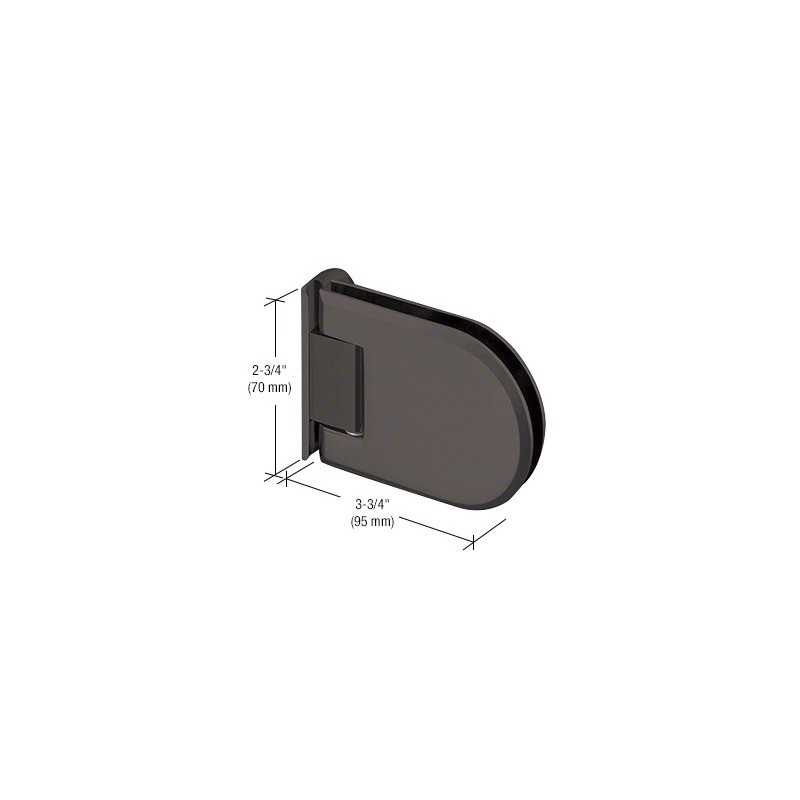

CRL Oil Rubbed Bronze Berlin 044 Series Wall Mount Offset Back Plate Hinge - BER0440RB
The CRL Berlin Series of hinges combines elegant design with superb quality. This family of hinges features a Wall Mount Hinge with Offset Back Plate, which leaves the mounting plate visible only from inside the shower. Three Glass-to-Glass models round out the selection. Choose from a number of beautiful finishes to accentuate the décor of most bathrooms. Berlin Hinges are constructed of solid brass, and will provide a new inspiration combined with a classic past.
Wall Mount Offset Back Plate (Allows Clean Sight Line From Shower Exterior)
Rounded Design Ideal for "Soft Decors"
Contains Reversible Pivot Pin
Available in Several Beautiful Finishes
3 Year Warranty
Wall Mount Offset Back Plate (Allows Clean Sight Line From Shower Exterior)
Rounded Design Ideal for "Soft Decors"
Contains Reversible Pivot Pin
Available in Several Beautiful Finishes
3 Year Warranty
Catalog Number: BER0440RB
Also Available in These Catalogs:
SD16 Frameless Shower Door Hardware 2015, PAGE 147S
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 211J
Color: Oil Rubbed Bronze
Ship Via: Can Ship UPS
Shipping Weight: 2 lb (907g)
Minimum Order: 1 Each
Also Available in These Catalogs:
SD16 Frameless Shower Door Hardware 2015, PAGE 147S
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 211J
Color: Oil Rubbed Bronze
Ship Via: Can Ship UPS
Shipping Weight: 2 lb (907g)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
BER0440RB CRL Oil Rubbed Bronze Berlin 044 Series Wall Mount Offset Back Plate Hinge
BER0440RB CRL Oil Rubbed Bronze Berlin 044 Series Wall Mount Offset Back Plate Hinge
Using two hinges with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 60 lbs. (27 kg) with a maximum door width of 28" (711 mm).
Using three hinges with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 90 lbs. (41 kg) with a maximum door width of 32" (813 mm).
SPECIFICATIONS:
Glass Thickness: 1/4" (6 mm) to 5/16" (8 mm) Tempered Safety Glass
Special Features: Rounded design is ideal for "soft" dcors.
Construction: Solid Brass
Hinge Swings: 90 In and 90 Out
Closing Type: Self-Centering when within 15 of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.
Using three hinges with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 90 lbs. (41 kg) with a maximum door width of 32" (813 mm).
SPECIFICATIONS:
Glass Thickness: 1/4" (6 mm) to 5/16" (8 mm) Tempered Safety Glass
Special Features: Rounded design is ideal for "soft" dcors.
Construction: Solid Brass
Hinge Swings: 90 In and 90 Out
Closing Type: Self-Centering when within 15 of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting Glass Experts customer service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
