CRL Chrome Beveled 135º Glass-to-Glass Clamp - BGC135CH

Catalog Number: BGC135CH
Also Available in These Catalogs:
SD16 Frameless Shower Door Hardware 2015, PAGE 185S
CRL53R Glass & Glazing Catalog, PAGE 273G
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 280J
CRL93A Shower Door, PAGE SD092
Color: Chrome

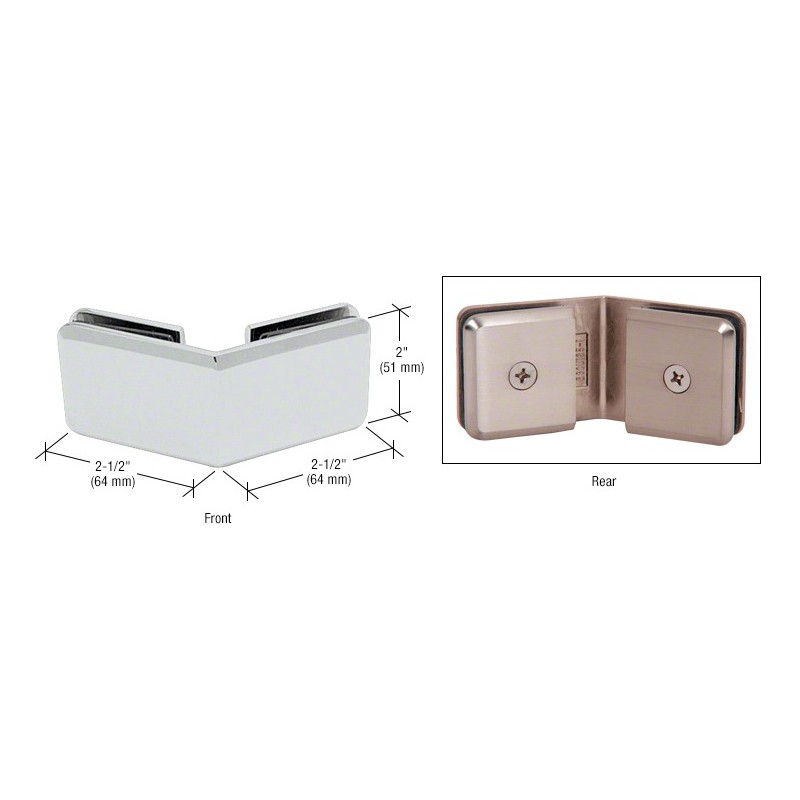

Each Leg Size: 2-1/2" (64 mm) Wide x 2" (51 mm) High
Ship Via: Can Ship UPS
Shipping Weight: 8 oz (227g)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
BGC135CH CRL Chrome Beveled 135 Glass-to-Glass Clamp
BGC135MBL CRL Matte Black Beveled 135 Glass-to-Glass Clamp
BGC135ULBR CRL Unlacquered Brass Beveled 135 Glass-to-Glass Clamp
BGC1350RB CRL Oil Rubbed Bronze Beveled 135 Glass-to-Glass Clamp
BGC135BBRZ CRL Brushed Bronze Beveled 135 Glass-to-Glass Clamp
BGC135BN CRL Brushed Nickel Beveled 135 Glass-to-Glass Clamp
BGC135PN CRL Polished Nickel Beveled 135 Glass-to-Glass Clamp
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (3 to 12 mm)
Glass Fabrication Required: BGC180, BGC135, BGC90, and BGC186 Require 3/4" (19 mm) Holes; BGC188 Requires a 3/4" (19 mm) Hole in the Fixed Panel and a Notch in the Transom
Includes: Gaskets
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting Glass Experts customer service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Specific References
