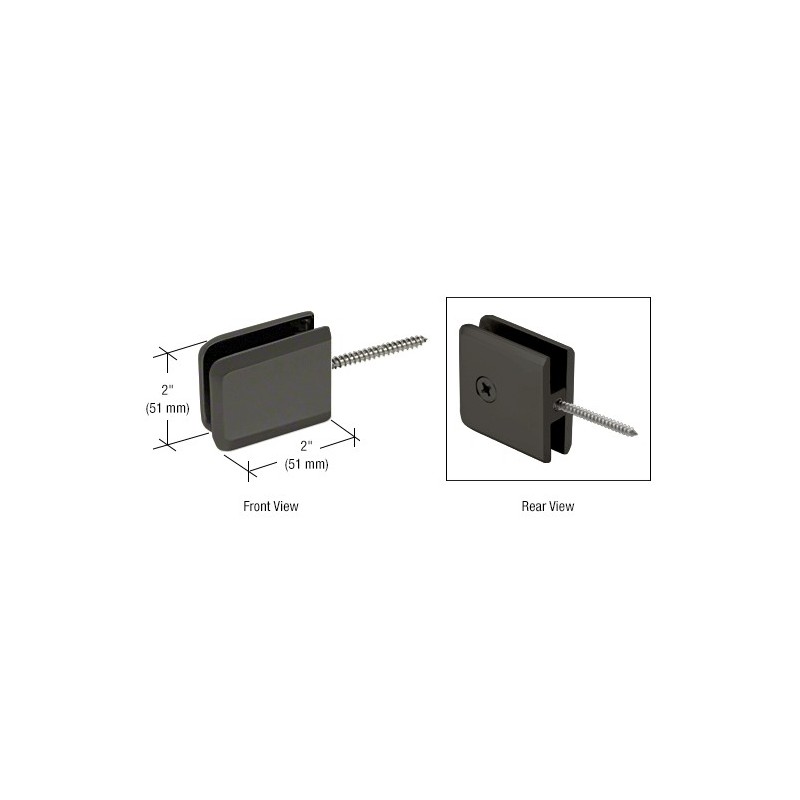

CRL Matte Black Square Beveled Wall Mount Movable Transom Clamp - BGC186MBL
CRL Beveled Wall Mount Movable Transom Clamps are designed to rotate a movable transom off a wall. They can also be used in combination with our Glass-to-Glass Movable Transom Clamps. Clamp must be centered on the transom to achieve balanced movement. Replacement Nylon Washer is Cat. No. 90295A120. Replacement Gasket is Cat. No. BGCU1G.
For 3/8" to 1/2" (10 to 12 mm) Thick Glass
Use Monolithic Tempered Glass
Glass Transom Swivels to Allow Release of Steam
Wall Mount, and 180 Degree Models Available
Solid Brass Material
For 3/8" to 1/2" (10 to 12 mm) Thick Glass
Use Monolithic Tempered Glass
Glass Transom Swivels to Allow Release of Steam
Wall Mount, and 180 Degree Models Available
Solid Brass Material
Catalog Number: BGC186MBL
Also Available in These Catalogs:
Color: Matte Black
Size: 2" (51 mm) Wide x 2" (51 mm) High
Ship Via: Can Ship UPS
Shipping Weight: 8 oz (227g)
Minimum Order: 1 Each
Also Available in These Catalogs:
Color: Matte Black
Size: 2" (51 mm) Wide x 2" (51 mm) High
Ship Via: Can Ship UPS
Shipping Weight: 8 oz (227g)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
BGC186CH CRL Chrome Square Beveled Wall Mount Movable Transom Clamp
BGC1860RB CRL Oil Rubbed Bronze Square Beveled Wall Mount Movable Transom Clamp
BGC186BN CRL Brushed Nickel Square Beveled Wall Mount Movable Transom Clamp
BGC186MBL CRL Matte Black Square Beveled Wall Mount Movable Transom Clamp
BGC186PN CRL Polished Nickel Square Beveled Wall Mount Movable Transom Clamp
BGC186CH CRL Chrome Square Beveled Wall Mount Movable Transom Clamp
BGC1860RB CRL Oil Rubbed Bronze Square Beveled Wall Mount Movable Transom Clamp
BGC186BN CRL Brushed Nickel Square Beveled Wall Mount Movable Transom Clamp
BGC186MBL CRL Matte Black Square Beveled Wall Mount Movable Transom Clamp
BGC186PN CRL Polished Nickel Square Beveled Wall Mount Movable Transom Clamp
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (3 to 12 mm)
Glass Fabrication Required: BGC180, BGC135, BGC90, and BGC186 Require 3/4" (19 mm) Holes; BGC188 Requires a 3/4" (19 mm) Hole in the Fixed Panel and a Notch in the Transom
Includes: Gaskets
NOTE: Maximum transom size is 16" x 30" (406 x 762 mm) wide. Larger transoms require the use of pivot hinges used as transom clamps. Call for details.
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (3 to 12 mm)
Glass Fabrication Required: BGC180, BGC135, BGC90, and BGC186 Require 3/4" (19 mm) Holes; BGC188 Requires a 3/4" (19 mm) Hole in the Fixed Panel and a Notch in the Transom
Includes: Gaskets
NOTE: Maximum transom size is 16" x 30" (406 x 762 mm) wide. Larger transoms require the use of pivot hinges used as transom clamps. Call for details.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting Glass Experts customer service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
