CRL-Blumcraft® Oil Rubbed Bronze 1200ED Series Panic - 1/2" Glass - 12FP120RB
CRL-Blumcraft® 1200 Series Doors can be made up to 12' (3.6 m) tall and have no top or bottom rails. Instead they have a vertical Pivot Tube that runs the height of the door, achieving what appears to be truly 'all-glass' door.
Patented Wedge-Lock® Glass Securing System
Doors Up to 12 Feet (3.66 m) Tall
No Top or Bottom Rails
Fully Glazed with 1/2" (12 mm) Tempered Glass
Available in Six Standard Architectural Finishes
Patented Wedge-Lock® Glass Securing System
Doors Up to 12 Feet (3.66 m) Tall
No Top or Bottom Rails
Fully Glazed with 1/2" (12 mm) Tempered Glass
Available in Six Standard Architectural Finishes
Catalog Number: 12FP120RB
Also Available in These Catalogs:
CRL63A Architectural Hardware Master, PAGE 396H
Color: Oil Rubbed Bronze
Ship Via: No UPS - Common Carrier Only
Also Available in These Catalogs:
CRL63A Architectural Hardware Master, PAGE 396H
Color: Oil Rubbed Bronze
Ship Via: No UPS - Common Carrier Only
CATALOG NUMBER DESCRIPTION COLOR
12FP120RB CRL-Blumcraft Oil Rubbed Bronze 1200ED Series Panic - 1/2" Glass
12FP12BS CRL-Blumcraft Brushed Stainless 1200ED Series Panic - 1/2" Glass
12FP12DU CRL-Blumcraft Dark Bronze 1200ED Series Panic - 1/2" Glass
12FP12PB CRL-Blumcraft Polished Brass 1200ED Series Panic - 1/2" Glass
12FP12PS CRL-Blumcraft Polished Stainless 1200ED Series Panic - 1/2" Glass
12FP120RB CRL-Blumcraft Oil Rubbed Bronze 1200ED Series Panic - 1/2" Glass
12FP12BS CRL-Blumcraft Brushed Stainless 1200ED Series Panic - 1/2" Glass
12FP12DU CRL-Blumcraft Dark Bronze 1200ED Series Panic - 1/2" Glass
12FP12PB CRL-Blumcraft Polished Brass 1200ED Series Panic - 1/2" Glass
12FP12PS CRL-Blumcraft Polished Stainless 1200ED Series Panic - 1/2" Glass

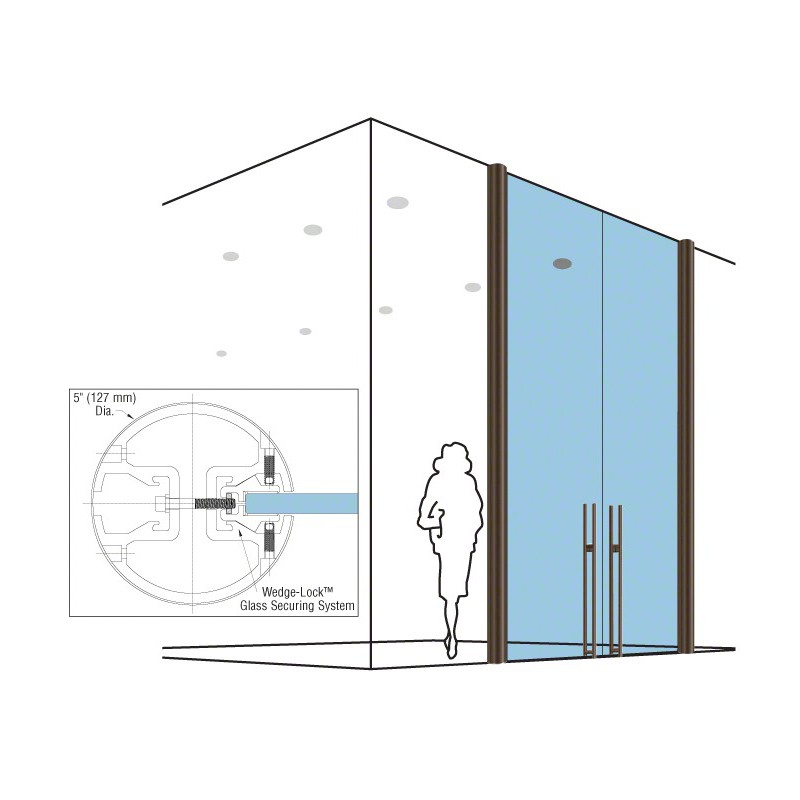

1200 Series Doors are supplied fully glazed with 1/2" (12 mm) tempered glass in clear, tinted or low-iron. We have incorporated our patented Wedge-Lock Glass Securing System into a 5" (127 mm) diameter vertical Pivot Tube, ensuring a non-slip environment for the life of the door. The Pivot Tube is clad in one of six architectural finishes: satin anodized, black bronze anodized, black powder coat, brushed and polished stainless steel, and polished brass. Custom finishes are available on special order.
With no rails top and bottom the entire weight of the door is transferred through the Pivot Tube to a specially engineered, heavy-duty, load-bearing cement case, independent of the floor mounted door closer. 1200 Series Doors utilize a heavy-duty walking beam pivot at the top of the Pivot Tube that can be incorporated into a variety of different headers to create a desired look. Floor mounted door closer functionality is preserved in this uniquely different entrance system.
1200 Series Doors can be equipped with any of our Egress Handles, Locking Ladder Pulls, or Patch Locks to offer a secure opening. All hardware comes mounted to the door and is ready for installation. For additional information contact CRL Technical Sales Department.
With no rails top and bottom the entire weight of the door is transferred through the Pivot Tube to a specially engineered, heavy-duty, load-bearing cement case, independent of the floor mounted door closer. 1200 Series Doors utilize a heavy-duty walking beam pivot at the top of the Pivot Tube that can be incorporated into a variety of different headers to create a desired look. Floor mounted door closer functionality is preserved in this uniquely different entrance system.
1200 Series Doors can be equipped with any of our Egress Handles, Locking Ladder Pulls, or Patch Locks to offer a secure opening. All hardware comes mounted to the door and is ready for installation. For additional information contact CRL Technical Sales Department.
