CRL-Blumcraft® RG200 Series Satin Anodized Two Piece Base Shoe - RG200SA
CRL-Blumcraft®'s RG200 Series Two Piece Base Shoe System is offered in stock lengths or custom fabricated to size with or without factory installed 1/2" (12 mm) glass panels. The system permits easy glass panel installation and replacement by means of bolts. CRL-Blumcraft®'s Glass Railing Systems are designed to meet and exceed typical code requirements for guard rail applications.
For 1/2" (12 mm) Monolithic Tempered Glass
Two Piece Mounting Base Isolates Glass Panels Against Shock of Building Movement
Permits Easy Glass Panel Replacement by Means of Bolts
Wet Glazed System Only
Railglass® Factory Controlled Bonding of Glass is Also Available
6063 Alloy, T52 Temper in Three Finishes
For 1/2" (12 mm) Monolithic Tempered Glass
Two Piece Mounting Base Isolates Glass Panels Against Shock of Building Movement
Permits Easy Glass Panel Replacement by Means of Bolts
Wet Glazed System Only
Railglass® Factory Controlled Bonding of Glass is Also Available
6063 Alloy, T52 Temper in Three Finishes
Catalog Number: RG200SA
Also Available in These Catalogs:
CRL63R Architectural Railing Systems, PAGE 152R
HR18 Architectural Railing Systems 2018, PAGE 178B
CRL93A Architectural Railings, PAGE HR040
Color: Satin Anodized
Stock Length: 144" (3.65 m)
Hole Size: 5/8" (16 mm)
Hole Type
Center-to-Center: Flat Head
12" (305 mm)
Ship Via: No UPS - Common Carrier Only
Shipping Weight: 99 lb (44.91kg)
Minimum Order: 1 Each
Also Available in These Catalogs:
CRL63R Architectural Railing Systems, PAGE 152R
HR18 Architectural Railing Systems 2018, PAGE 178B
CRL93A Architectural Railings, PAGE HR040
Color: Satin Anodized
Stock Length: 144" (3.65 m)
Hole Size: 5/8" (16 mm)
Hole Type
Center-to-Center: Flat Head
12" (305 mm)
Ship Via: No UPS - Common Carrier Only
Shipping Weight: 99 lb (44.91kg)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
RG200DU CRL-Blumcraft RG200 Series Dark Bronze Anodized Two Piece Base Shoe
RG200MCA CRL-Blumcraft RG200 Series Mill Clear Anodized Two Piece Base Shoe
RG200SA CRL-Blumcraft RG200 Series Satin Anodized Two Piece Base Shoe
RG200SAPK CRL-Blumcraft RG200 Series Satin Anodized Two Piece Base Shoe - 6" Sample
RG200DU CRL-Blumcraft RG200 Series Dark Bronze Anodized Two Piece Base Shoe
RG200MCA CRL-Blumcraft RG200 Series Mill Clear Anodized Two Piece Base Shoe
RG200SA CRL-Blumcraft RG200 Series Satin Anodized Two Piece Base Shoe
RG200SAPK CRL-Blumcraft RG200 Series Satin Anodized Two Piece Base Shoe - 6" Sample

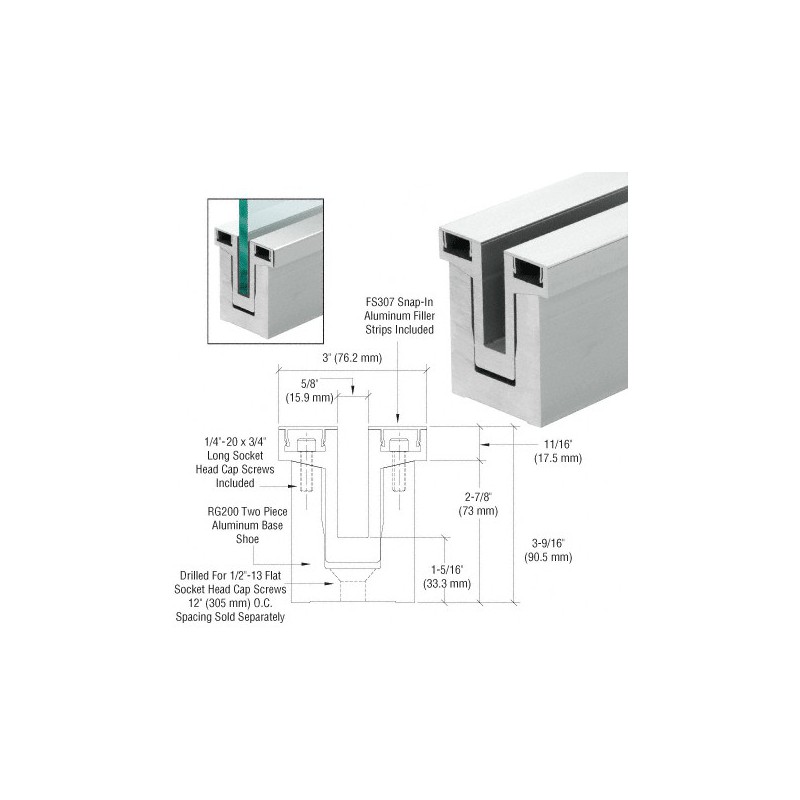

Typical Mountings for 1/2" (12 mm) Glass, Steel Sub-Structures by Others.
GLASS SPECIFICATIONS: 1/2" (12 mm) Thick Glass Using Wet Glaze System.
TEMPERED GLASS: Shall be 1/2" (12 mm) thick safety glass meeting the requirements of ANSI Standard 297.1 for Safety Glazing Materials and Consumer Product Safety Commission Standard 16 CFR 1201 Categories 1 and 2.
INSTALLATION NOTE: The RG200 base is furnished with pre-drilled thru holes 12" (305 mm) O.C. spacing for 1/2"-13 Flat Socket Head Cap Screws. Customer to drill and tap thru 1/2" (12 mm) thick (minimum) continuous steel plate using RG200 base as a template for hole location.
SHIPPING NOTE: Due to the difficulty in packaging and handling 144" (3.65 m) stock lengths, it is suggested that you take delivery of these at any of our distribution centers. If requiring shipment, all packaging and handling concerns must be agreed to by CRL and the customer prior to shipping. All shipping arrangements will be documented on your quotation for your signed approval.
GLASS SPECIFICATIONS: 1/2" (12 mm) Thick Glass Using Wet Glaze System.
TEMPERED GLASS: Shall be 1/2" (12 mm) thick safety glass meeting the requirements of ANSI Standard 297.1 for Safety Glazing Materials and Consumer Product Safety Commission Standard 16 CFR 1201 Categories 1 and 2.
INSTALLATION NOTE: The RG200 base is furnished with pre-drilled thru holes 12" (305 mm) O.C. spacing for 1/2"-13 Flat Socket Head Cap Screws. Customer to drill and tap thru 1/2" (12 mm) thick (minimum) continuous steel plate using RG200 base as a template for hole location.
SHIPPING NOTE: Due to the difficulty in packaging and handling 144" (3.65 m) stock lengths, it is suggested that you take delivery of these at any of our distribution centers. If requiring shipment, all packaging and handling concerns must be agreed to by CRL and the customer prior to shipping. All shipping arrangements will be documented on your quotation for your signed approval.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting Glass Experts customer service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
