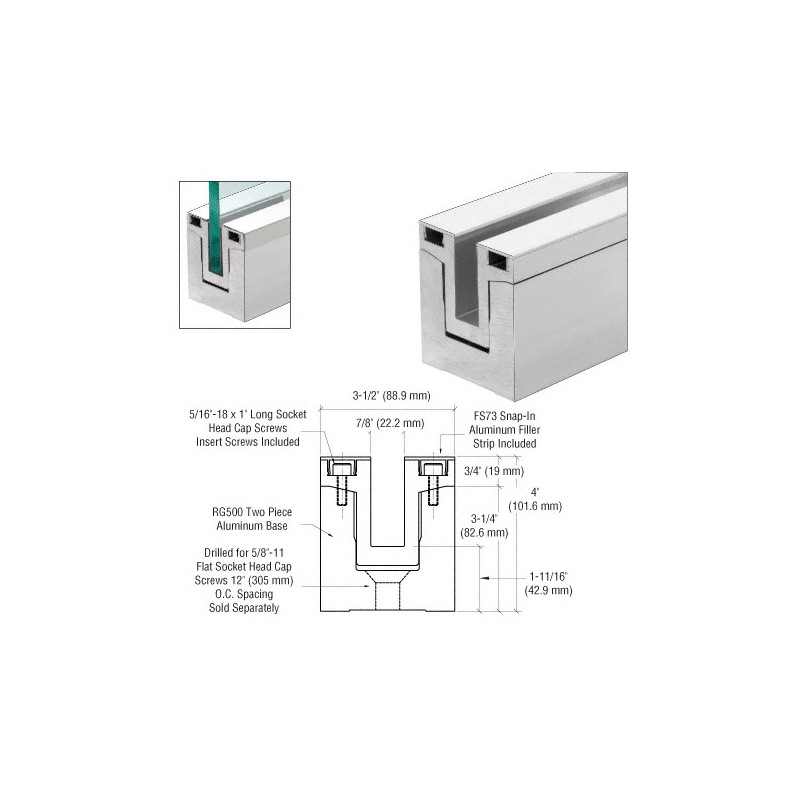

CRL-Blumcraft® Satin Anodized RG500 Series Two Piece Base Shoe - RG500SA
CRL-Blumcraft®'s RG500 Series Two Piece Base Shoe System is offered in stock lengths or custom fabricated to size with or without factory installed 3/4" (19 mm) glass panels. The system permits easy glass panel installation and replacement by means of bolts. CRL-Blumcraft®'s Glass Railing Systems are designed to meet and exceed typical code requirements for guard rail applications.
For 3/4" (19 mm) Monolithic Tempered Glass
Two Piece Mounting Base Isolates Glass Panels Against Shock of Building Movement
Permits Easy Glass Panel Replacement by Means of Bolts
Railglass® Factory Controlled Bonding of Glass is Also Available
6063 Alloy, T52 Temper in Three Finishes
For 3/4" (19 mm) Monolithic Tempered Glass
Two Piece Mounting Base Isolates Glass Panels Against Shock of Building Movement
Permits Easy Glass Panel Replacement by Means of Bolts
Railglass® Factory Controlled Bonding of Glass is Also Available
6063 Alloy, T52 Temper in Three Finishes
Catalog Number: RG500SA
Also Available in These Catalogs:
CRL63R Architectural Railing Systems, PAGE 156R
HR18 Architectural Railing Systems 2018, PAGE 182B
CRL93A Architectural Railings, PAGE HR044
Color: Satin Anodized
Stock Length: 144" (3.65 m)
Hole Size: 5/8" (16 mm)
Hole Type
Center-to-Center: Flat Head
12" (305 mm)
Ship Via: No UPS - Common Carrier Only
Shipping Weight: 155 lb (70.31kg)
Minimum Order: 1 Each
Also Available in These Catalogs:
CRL63R Architectural Railing Systems, PAGE 156R
HR18 Architectural Railing Systems 2018, PAGE 182B
CRL93A Architectural Railings, PAGE HR044
Color: Satin Anodized
Stock Length: 144" (3.65 m)
Hole Size: 5/8" (16 mm)
Hole Type
Center-to-Center: Flat Head
12" (305 mm)
Ship Via: No UPS - Common Carrier Only
Shipping Weight: 155 lb (70.31kg)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
RG500MCA CRL-Blumcraft Mill Clear Anodized RG500 Series Two Piece Base Shoe
RG500SA CRL-Blumcraft Satin Anodized RG500 Series Two Piece Base Shoe
RG500MCA CRL-Blumcraft Mill Clear Anodized RG500 Series Two Piece Base Shoe
RG500SA CRL-Blumcraft Satin Anodized RG500 Series Two Piece Base Shoe
Typical Mountings for 3/4" (19 mm) Glass, Steel Sub-Structures by Others.
Installation Note: The RG500 Base is furnished with pre-drilled thru holes 12" (305 mm) O.C. spacing for 5/8"-11 Flat Socket Head Cap Screws. Customer to drill and tap thru 5/8" (16 mm) thick (minimum) Continuous Steel Plate using RG500 Base as a template for hole location.
Glass Specifications: 3/4" (19 mm) Thick Glass using Wet Glaze System.
Tempered Glass: Shall be 3/4" (19 mm) thick safety glass meeting the requirements of ANSI Standard 297.1 for Safety Glazing Materials and Consumer Product Safety Commission Standard 16 CFR 1201 Categories 1 and 2.
Shipping Note: Due to the difficulty in packaging and handling 144" (3.65 m) stock lengths, it is suggested that you take delivery of these at any of our distribution centers. If requiring shipment, all packaging and handling concerns must be agreed to by CRL and the customer prior to shipping. All shipping arrangements will be documented on your quotation for your signed approval.
Installation Note: The RG500 Base is furnished with pre-drilled thru holes 12" (305 mm) O.C. spacing for 5/8"-11 Flat Socket Head Cap Screws. Customer to drill and tap thru 5/8" (16 mm) thick (minimum) Continuous Steel Plate using RG500 Base as a template for hole location.
Glass Specifications: 3/4" (19 mm) Thick Glass using Wet Glaze System.
Tempered Glass: Shall be 3/4" (19 mm) thick safety glass meeting the requirements of ANSI Standard 297.1 for Safety Glazing Materials and Consumer Product Safety Commission Standard 16 CFR 1201 Categories 1 and 2.
Shipping Note: Due to the difficulty in packaging and handling 144" (3.65 m) stock lengths, it is suggested that you take delivery of these at any of our distribution centers. If requiring shipment, all packaging and handling concerns must be agreed to by CRL and the customer prior to shipping. All shipping arrangements will be documented on your quotation for your signed approval.
