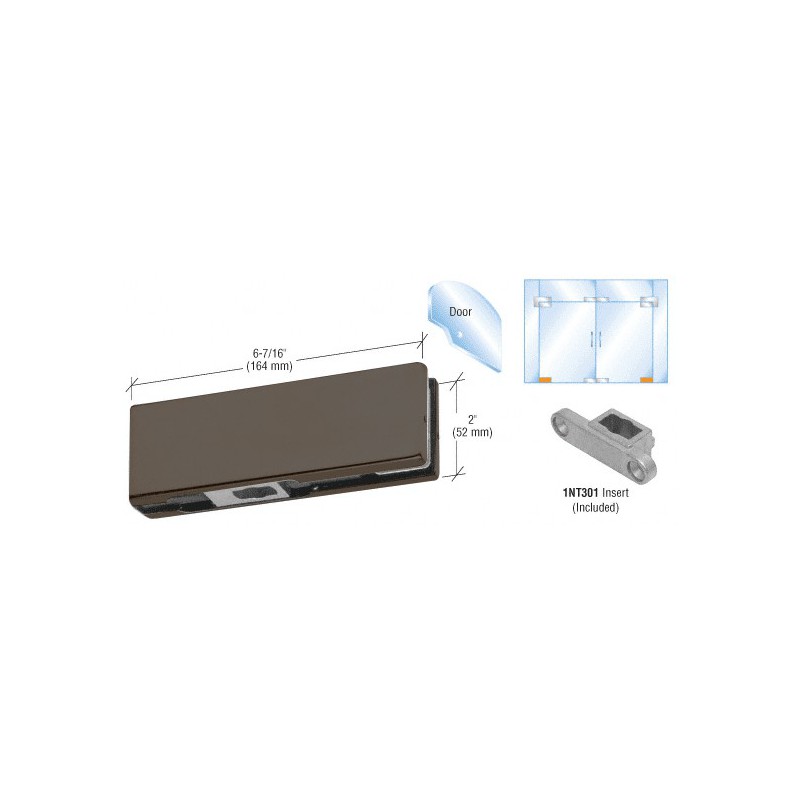

CRL Black Bronze Bottom Door Patch with 1NT301 Insert - PH11CDU
The CRL Bottom Door Patch Fitting includes the Catalog Number 1NT301 Insert for use with tapered style spindle Floor Closers or Free Swing Pivots. Covers are available in four standard finishes. Gaskets are supplied that allow this >Patch Fitting to be used with either 3/8" or 1/2" (10 or 12 mm) Glass.
2-9/16" (65 mm) Pivot Setback
For 3/8" or 1/2" (10 or 12 mm) Glass
2-9/16" (65 mm) Pivot Setback
For 3/8" or 1/2" (10 or 12 mm) Glass
Catalog Number: PH11CDU
Also Available in These Catalogs:
CRL14D Door and Entrance Catalog, PAGE 138D
AH18 Architectural Hardware Catalog 2018, PAGE 210Z
CRL93A Architectural Hardware, PAGE CH123
Color: Black Bronze
Ship Via: Can Ship UPS
Shipping Weight: 1 lb (454g)
Minimum Order: 1 Each
Also Available in These Catalogs:
CRL14D Door and Entrance Catalog, PAGE 138D
AH18 Architectural Hardware Catalog 2018, PAGE 210Z
CRL93A Architectural Hardware, PAGE CH123
Color: Black Bronze
Ship Via: Can Ship UPS
Shipping Weight: 1 lb (454g)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
PH11CA CRL Satin Anodized Bottom Door Patch with 1NT301 Insert
PH11CBR CRL Brass Bottom Door Patch with 1NT301 Insert
PH11CBS CRL Brushed Stainless Bottom Door Patch with 1NT301 Insert
PH11CDU CRL Black Bronze Bottom Door Patch with 1NT301 Insert
PH11CPS CRL Polished Stainless Bottom Door Patch with 1NT301 Insert
PH11CSB CRL Satin Brass Bottom Door Patch with 1NT301 Insert
PH11CA CRL Satin Anodized Bottom Door Patch with 1NT301 Insert
PH11CBR CRL Brass Bottom Door Patch with 1NT301 Insert
PH11CBS CRL Brushed Stainless Bottom Door Patch with 1NT301 Insert
PH11CDU CRL Black Bronze Bottom Door Patch with 1NT301 Insert
PH11CPS CRL Polished Stainless Bottom Door Patch with 1NT301 Insert
PH11CSB CRL Satin Brass Bottom Door Patch with 1NT301 Insert
The following guidelines are to be used when making a door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 Lbs. (88 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch
COMES WITH:
Template and Instructions
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 Lbs. (88 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch
COMES WITH:
Template and Instructions
