CRL Satin Chrome Bullet Resistant Protective Barrier System Bottom Mount T-Clamp - PB009SC

Finish: SATIN CHROME
$252.84
Quantity

CRL Protective Barrier Clamps are made to secure bullet resistant barrier systems in high - security applications. All clamps are made of high quality stainless steel to provide reliable security, are available in a variety of finishes, and provide an attractive design to your installation. Custom Clamps are available on special order for 3/4" (19 mm) thick glazing material.
Create Your Own Complete Barrier System with CRL Components
Made to Secure Bullet Resistant 1-1/4" (32 mm) Acrylic or Polycarbonate Barrier Systems in High-Security Applications
Made of high Quality Stainless Steel to provide Reliable Security
Available in Several Finishes
Catalog Number: PB009SC
Also Available in These Catalogs:
CRL53R Glass & Glazing Catalog, PAGE 659G
TH18 Transaction and Security Hardware Catalog, PAGE T486
Color: Satin Chrome
Width: 4" (102 mm)
Height: 2" (51 mm)
Ship Via: Can Ship UPS
Shipping Weight: 1 lb (454g)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
PB009BS CRL Brushed Stainless Bullet Resistant Protective Barrier System Bottom Mount T-Clamp
PB009PS CRL Polished Stainless Bullet Resistant Protective Barrier System Bottom Mount T-Clamp
PB009SC CRL Satin Chrome Bullet Resistant Protective Barrier System Bottom Mount T-Clamp

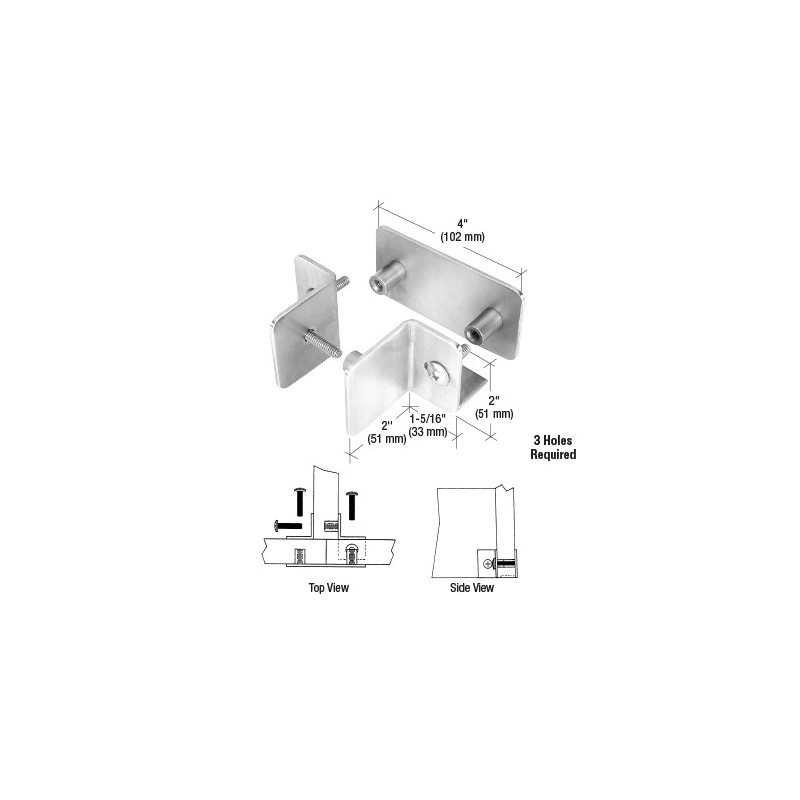

This CRL Bottom Mount T-Clamp is made to secure bullet resistant acrylic or polycarbonate to the counter surface. Three screws secure the glazing material, and one screw secures the clamp to the counter surface. If the glazing material will sit flush on the counter, a notch for the base mounting plate is required. If the glazing material is not notched for the base mounting plate an 1/8" (3 mm) gap will be created.
SPECIFICATIONS:
Material: 11 Gauge Stainless Steel
Finishes: Brushed Stainless, Polished Stainless, Satin Chrome
Glazing: Use with 1-1/4" (32 mm) Acrylic or 1-1/4" (32 mm) Polycarbonate
Includes: Mounting Screws, Instructions
Glass Fabrication: 3/4" (19 mm) hole required.
