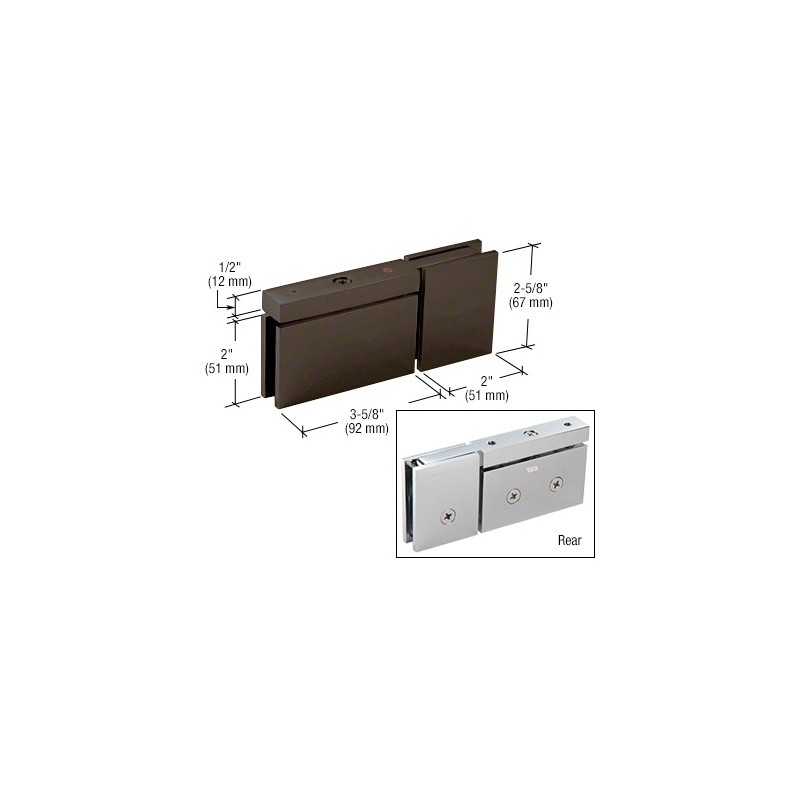

CRL Oil Rubbed Bronze Top or Bottom Cardiff Mount Pivot Hinge with Attached U-Clamp - CAR070RB
CRL Cardiff Series Pivot Hinges are designed for use with 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass, and provide an extra number of application possibilities. Some advantages of pivot type hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. Cardiff Series Pivot Hinges are self-centering, with four springs for maximum retention strength. Optional 5º Pre-Set Pivot Pin Sets may be ordered separately. The Cardiff Series is adaptable to our Deluxe Header System for shower enclosures not going all the way up to the ceiling.
Top or Bottom Mount with Attached U-Clamp
Provides Alternative to Using Traditional Horizontal Metal Header Systems Across Enclosure
3 Year Warranty
U.S. Patent 5,297,313
Can Also Be Mounted at Bottom of Door and Adjacent Panel for Symmetry
For 3/8" and 5/16" (10 and 8 mm) Thick Tempered Glass
Stocked in Seven Popular Finishes, with Custom Finishes Available
Design and Installation Criteria Available
Use Monolithic Tempered Glass
Top or Bottom Mount with Attached U-Clamp
Provides Alternative to Using Traditional Horizontal Metal Header Systems Across Enclosure
3 Year Warranty
U.S. Patent 5,297,313
Can Also Be Mounted at Bottom of Door and Adjacent Panel for Symmetry
For 3/8" and 5/16" (10 and 8 mm) Thick Tempered Glass
Stocked in Seven Popular Finishes, with Custom Finishes Available
Design and Installation Criteria Available
Use Monolithic Tempered Glass
Catalog Number: CAR070RB
Also Available in These Catalogs:
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 129J
SD16 Frameless Shower Door Hardware 2015, PAGE 136S
CRL93A Shower Door, PAGE SD055
Color: Oil Rubbed Bronze
Height: 2" (51 mm)
Width: 3-5/8" (92 mm)
Ship Via: Can Ship UPS
Minimum Order: 1 Each
Also Available in These Catalogs:
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 129J
SD16 Frameless Shower Door Hardware 2015, PAGE 136S
CRL93A Shower Door, PAGE SD055
Color: Oil Rubbed Bronze
Height: 2" (51 mm)
Width: 3-5/8" (92 mm)
Ship Via: Can Ship UPS
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
CAR07CH CRL Polished Chrome Top or Bottom Mount Cardiff Pivot Hinge with Attached U-Clamp
CAR070RB CRL Oil Rubbed Bronze Top or Bottom Cardiff Mount Pivot Hinge with Attached U-Clamp
CAR07BBRZ CRL Brushed Bronze Top or Bottom Mount Cardiff Pivot Hinge with Attached U-Clamp
CAR07BN CRL Brushed Nickel Top or Bottom Mount Cardiff Pivot Hinge with Attached U-Clamp
CAR07PN CRL Polished Nickel Top or Bottom Mount Cardiff Pivot Hinge with Attached U-Clamp
CAR07CH CRL Polished Chrome Top or Bottom Mount Cardiff Pivot Hinge with Attached U-Clamp
CAR070RB CRL Oil Rubbed Bronze Top or Bottom Cardiff Mount Pivot Hinge with Attached U-Clamp
CAR07BBRZ CRL Brushed Bronze Top or Bottom Mount Cardiff Pivot Hinge with Attached U-Clamp
CAR07BN CRL Brushed Nickel Top or Bottom Mount Cardiff Pivot Hinge with Attached U-Clamp
CAR07PN CRL Polished Nickel Top or Bottom Mount Cardiff Pivot Hinge with Attached U-Clamp
NOTE: Optional 5 Pivot Pin Set (for Cardiff, Prima, Rondo, and Shell Series) Optional 5 Pivot Pin sets are available when you want to alter the closing position of the door by 5. These Pivot Pins may be inserted prior to installation, or retrofitted after the installation is complete. Sold as a set of two, one for the top, and one for the bottom. Not included with hinge purchase.
Using two hinges with 5/16" or 3/8" glass (8 or 10 mm) the hinge will hold up to 100 lbs. (45 kg) with maximum door width of 31" (787 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Top and Bottom Mount design allows more glass to show. Use of these hinges will reduce quantity of cut-outs required when compared to standard side mount glass-to-glass hinges. Cat. No. CAR01 can be mounted floor and ceiling, or floor and header.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).
Using two hinges with 5/16" or 3/8" glass (8 or 10 mm) the hinge will hold up to 100 lbs. (45 kg) with maximum door width of 31" (787 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Top and Bottom Mount design allows more glass to show. Use of these hinges will reduce quantity of cut-outs required when compared to standard side mount glass-to-glass hinges. Cat. No. CAR01 can be mounted floor and ceiling, or floor and header.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).
