CRL Brushed Bronze Cardiff Series Top or Bottom Mount Hinge - CAR01BBRZ
CRL Cardiff Series Pivot Hinges are designed for use with 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass, and provide an extra number of application possibilities. Some advantages of pivot type hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. Cardiff Series Pivot Hinges are self-centering, with four springs for maximum retention strength. Optional 5º Pre-Set Pivot Pin Sets may be ordered separately. The Cardiff Series is adaptable to our Deluxe Header System for shower enclosures not going all the way up to the ceiling. (Must order HAB01 Adaptor Block Separately.)
Top or Bottom Mount (Can be Adapted to Deluxe Header Kit)
Available in Several Beautiful Finishes
3 Year Warranty
Use Monolithic Tempered Glass
U.S. Patent 5,297,313
Top or Bottom Mount (Can be Adapted to Deluxe Header Kit)
Available in Several Beautiful Finishes
3 Year Warranty
Use Monolithic Tempered Glass
U.S. Patent 5,297,313
Catalog Number: CAR01BBRZ
Also Available in These Catalogs:
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 128J
SD16 Frameless Shower Door Hardware 2015, PAGE 136S
CRL53R Glass & Glazing Catalog, PAGE 400G
Color: Brushed Bronze

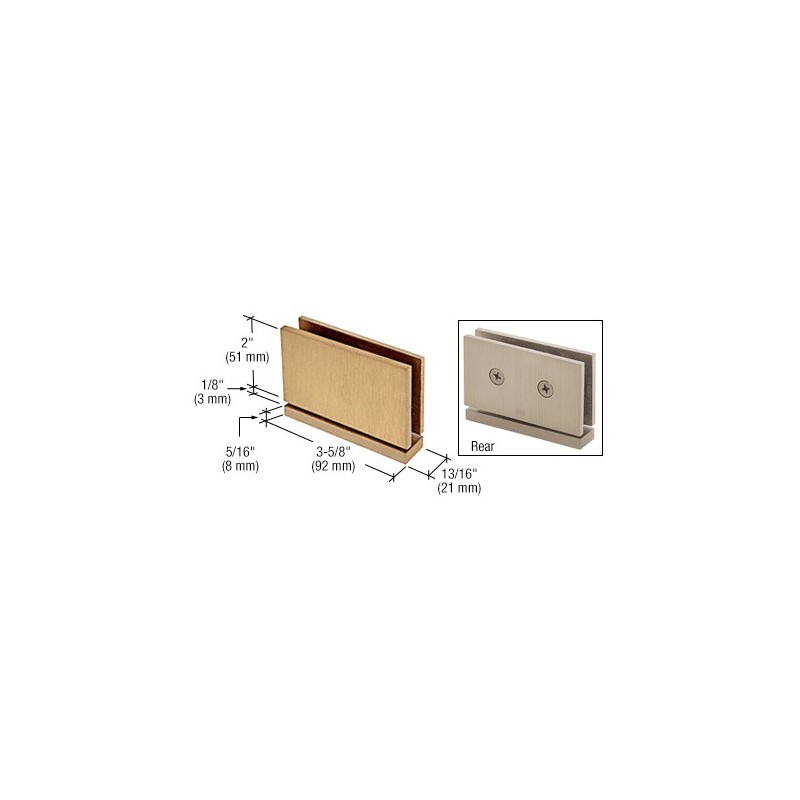

Height: 2" (51 mm)
Width: 3-5/8" (92 mm)
Ship Via: Can Ship UPS
Shipping Weight: 1 lb (454g)
Minimum Order: 1 Each
Also Available in These Catalogs:
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 128J
SD16 Frameless Shower Door Hardware 2015, PAGE 136S
CRL53R Glass & Glazing Catalog, PAGE 400G
Color: Brushed Bronze
Height: 2" (51 mm)
Width: 3-5/8" (92 mm)
Ship Via: Can Ship UPS
Shipping Weight: 1 lb (454g)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
CAR01CH CRL Polished Chrome Cardiff Series Top or Bottom Mount Hinge
CAR01BR CRL Polished Brass Cardiff Series Top or Bottom Mount Hinge
CAR010RB CRL Oil Rubbed Bronze Cardiff Series Top or Bottom Mount Hinge
CAR01ABR CRL Antique Brass Cardiff Series Top or Bottom Mount Hinge
CAR01BBRZ CRL Brushed Bronze Cardiff Series Top or Bottom Mount Hinge
CAR01BN CRL Brushed Nickel Cardiff Series Top or Bottom Mount Hinge
CAR01MBL CRL Matte Black Cardiff Series Top or Bottom Mount Hinge
CAR01PN CRL Polished Nickel Cardiff Series Top or Bottom Mount Hinge
CAR01SC CRL Satin Chrome Cardiff Series Top or Bottom Mount Hinge
CAR01SN CRL Satin Nickel Cardiff Series Top or Bottom Mount Hinge
CAR01ULBR CRL Unlacquered Brass Cardiff Series Top or Bottom Mount Hinge
CAR01CH CRL Polished Chrome Cardiff Series Top or Bottom Mount Hinge
CAR01BR CRL Polished Brass Cardiff Series Top or Bottom Mount Hinge
CAR010RB CRL Oil Rubbed Bronze Cardiff Series Top or Bottom Mount Hinge
CAR01ABR CRL Antique Brass Cardiff Series Top or Bottom Mount Hinge
CAR01BBRZ CRL Brushed Bronze Cardiff Series Top or Bottom Mount Hinge
CAR01BN CRL Brushed Nickel Cardiff Series Top or Bottom Mount Hinge
CAR01MBL CRL Matte Black Cardiff Series Top or Bottom Mount Hinge
CAR01PN CRL Polished Nickel Cardiff Series Top or Bottom Mount Hinge
CAR01SC CRL Satin Chrome Cardiff Series Top or Bottom Mount Hinge
CAR01SN CRL Satin Nickel Cardiff Series Top or Bottom Mount Hinge
CAR01ULBR CRL Unlacquered Brass Cardiff Series Top or Bottom Mount Hinge
NOTE: Optional 5 Pivot Pin Set (for Cardiff, Prima, Rondo, and Shell Series) Optional 5 Pivot Pin sets are available when you want to alter the closing position of the door by 5. These Pivot Pins may be inserted prior to installation, or retrofitted after the installation is complete. Sold as a set of two, one for the top, and one for the bottom. Not included with hinge purchase.
Using two hinges with 5/16" or 3/8" glass (8 or 10 mm) the hinge will hold up to 100 lbs. (45 kg) with maximum door width of 31" (787 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Top and Bottom Mount design allows more glass to show. Use of these hinges will reduce quantity of cut-outs required when compared to standard side mount glass-to-glass hinges. Cat. No. CAR01 can be mounted floor and ceiling, or floor and header.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).
Using two hinges with 5/16" or 3/8" glass (8 or 10 mm) the hinge will hold up to 100 lbs. (45 kg) with maximum door width of 31" (787 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Top and Bottom Mount design allows more glass to show. Use of these hinges will reduce quantity of cut-outs required when compared to standard side mount glass-to-glass hinges. Cat. No. CAR01 can be mounted floor and ceiling, or floor and header.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).
