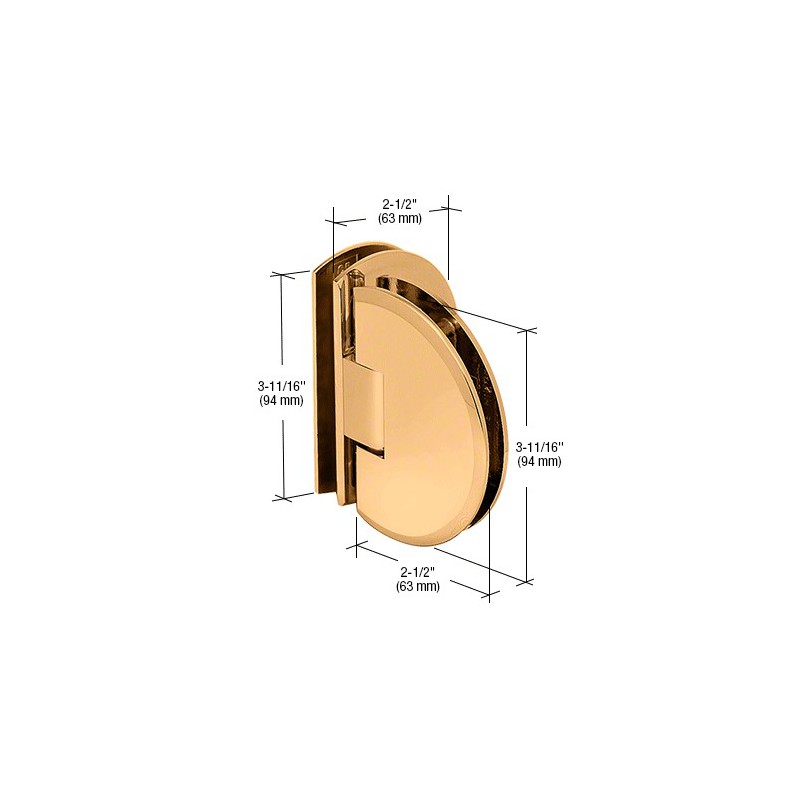

CRL Gold Plated Classique 090 Series 90º Glass-to-Glass Hinge - CLA090GP
The CRL Classique Shower Door Hinge is a design apart from traditional hinges. The beautiful round design and beveled edges are the result of an artist's unique concept of the perfect hinge for dcors with strong curved and contoured influences. There are five distinct models, including a Flush Back Plate Wall Mount Hinge for clean exterior sight lines. The Classique's beveled edges make an excellent presentation of sleek design, while the solid brass construction ensures superior quality and long life.
Catalog Number: CLA090GP
Also Available in These Catalogs:
SD16 Frameless Shower Door Hardware 2015, PAGE 128S
Color: Gold Plated
Ship Via: Can Ship UPS
Shipping Weight: 2 lb (907g)
Also Available in These Catalogs:
SD16 Frameless Shower Door Hardware 2015, PAGE 128S
Color: Gold Plated
Ship Via: Can Ship UPS
Shipping Weight: 2 lb (907g)
Using two hinges with 5/16" or 3/8" glass (8 or 10 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 31" (787 mm).
Using three hinges with 5/16" or 3/8" glass (8 or 10 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 34" (864 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" to 3/8" (8 to 10 mm) Tempered Safety Glass
Special Features: Round design and beveled edges to match curved or contoured dcors.
Construction: Solid Brass
Hinge Swings: 90 In and 90 Out
Closing Type: Precise Closing to 0
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.
Using three hinges with 5/16" or 3/8" glass (8 or 10 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 34" (864 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" to 3/8" (8 to 10 mm) Tempered Safety Glass
Special Features: Round design and beveled edges to match curved or contoured dcors.
Construction: Solid Brass
Hinge Swings: 90 In and 90 Out
Closing Type: Precise Closing to 0
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.
