CRL DRS 1202 Polished Brass Custom Size Pivoting Single Hold Open Door for 3/8" Glass - D12022PB38

Finish: POLISHED BRASS
CRL DRS 1202 Series Doors can be made up to 96" (2.44 m) tall as a single door or as a pair and have no top or bottom rails. Instead they have a vertical pivot tube that runs the height of the door and houses a fully adjustable hydraulic closer. Optional hardware available for a transom above the door for openings up to 127" (3.23 m) tall. Options for use with adjacent sidelites as well.
Maximum Panel Weight 135 Lbs. (61 kg)
Opening Force 7.1 Lbs. (3.2 kg)
Includes Top and Bottom Pivot
Optional Top and Bottom Low Profile Rails With or Without Locks
Custom Fabricated to Meet Your Design Requirements

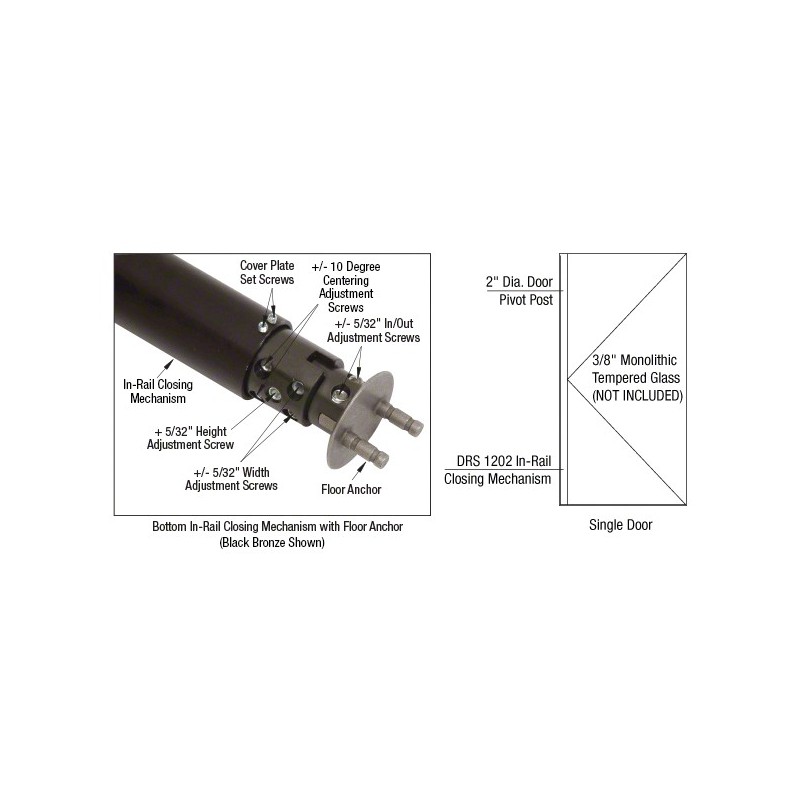

Unique Closing Device Located in Vertical Rail
Optional Transom Hardware Sold Separate
Catalog Number: D12022PB38
Also Available in These Catalogs:
Color: Polished Brass
Glass Thickness: 3/8" (10 mm)
Ship Via: No UPS - Common Carrier Only
CATALOG NUMBER DESCRIPTION COLOR
D12022BS38 CRL DRS 1202 Brushed Stainless Custom Size Pivoting Single Hold Open Door for 3/8" Glass
D12022PS38 CRL DRS 1202 Polished Stainless Custom Size Pivoting Single Hold Open Door for 3/8" Glass
D12022DU38 CRL DRS 1202 Black Bronze Custom Size Pivoting Single Hold Open Door for 3/8" Glass
D12022SA38 CRL DRS 1202 Satin Anodized Custom Size Pivoting Single Hold Open Door for 3/8" Glass
D12022PB38 CRL DRS 1202 Polished Brass Custom Size Pivoting Single Hold Open Door for 3/8" Glass
No additional product information available at this time.
