CRL Antique Bronze Cologne 044 Series Wall Mount Offset Back Plate Hinge - C0L044ABRZ
CRL Cologne Hinges are similar to the popular Vienna Hinges, but with one change: They have radius corners and beveled edges to provide a sleek appearance. Cologne Hinges are the solution for wider, heavier doors that traditional hinges are not strong enough to support. Two strategically placed steel pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. For the safety of "mouse-ears" type cut-outs, the two steel pins should be left in place. This allows the Cologne Hinge to be used with its own CRL "mouse-ears" cut-out. On the other hand, to enable increased adjustability, the two pins can be removed. This allows the Cologne Hinge to fit its own CRL rectangular shaped, square cornered cut-out. In some cases, it will also fit competitive rectangular, square cornered cut-outs.
Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
Available in Several Beautiful Finishes
3 Year Warranty
Wall Mount Offset Back Plate Standard Model
Use Monolithic Tempered Glass
Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
Available in Several Beautiful Finishes
3 Year Warranty
Wall Mount Offset Back Plate Standard Model
Use Monolithic Tempered Glass
Catalog Number: C0L044ABRZ
Also Available in These Catalogs:
SD16 Frameless Shower Door Hardware 2015, PAGE 122S
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 161J
Color: Antique Bronze

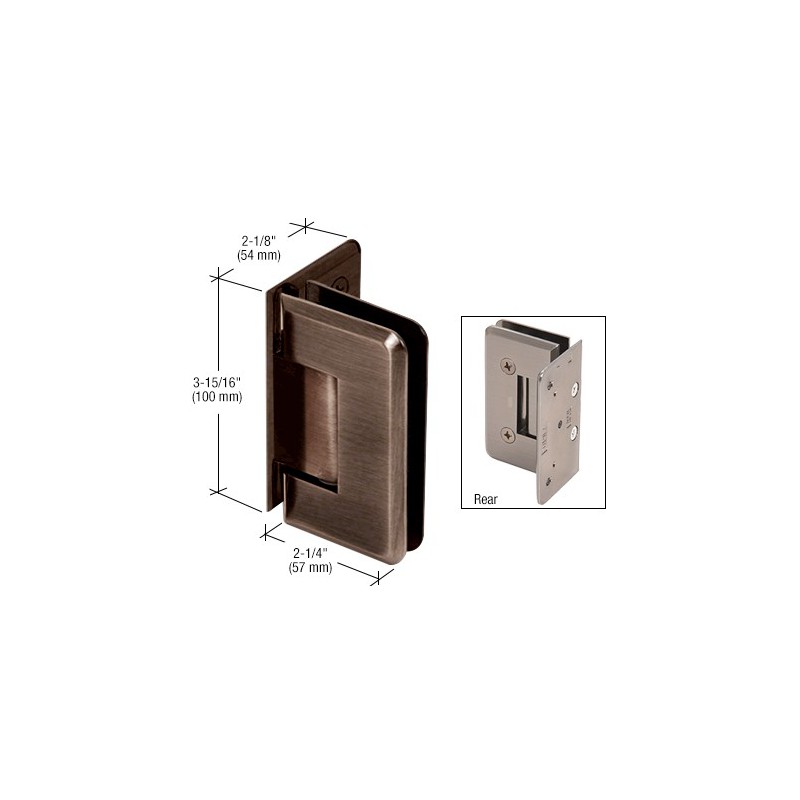

Height: 3-15/16" (100 mm)
Width: 2-1/4" (57 mm)
Ship Via: Can Ship UPS
Shipping Weight: 1 lb (454g)
Minimum Order: 1 Each
Also Available in These Catalogs:
SD16 Frameless Shower Door Hardware 2015, PAGE 122S
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 161J
Color: Antique Bronze
Height: 3-15/16" (100 mm)
Width: 2-1/4" (57 mm)
Ship Via: Can Ship UPS
Shipping Weight: 1 lb (454g)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
C0L044CH CRL Polished Chrome Cologne 044 Series Wall Mount Offset Back Plate Hinge
C0L044BR CRL Polished Brass Cologne 044 Series Wall Mount Offset Back Plate Hinge
C0L0440RB CRL Oil Rubbed Bronze Cologne 044 Series Wall Mount Offset Back Plate Hinge
C0L044ABC0 CRL Antique Brushed Copper Cologne 044 Series Wall Mount Offset Back Plate Hinge
C0L044ABN CRL Antique Brushed Nickel Cologne 044 Series Wall Mount Offset Back Plate Hinge
C0L044ABR CRL Antique Brass Cologne 044 Series Wall Mount Offset Back Plate Hinge
C0L044ABRZ CRL Antique Bronze Cologne 044 Series Wall Mount Offset Back Plate Hinge
C0L044AW CRL All White Cologne 044 Series Wall Mount Offset Back Plate Hinge
C0L044BBRZ CRL Brushed Bronze Cologne 044 Series Wall Mount Offset Back Plate Hinge
C0L044BN CRL Brushed Nickel Cologne 044 Series Wall Mount Offset Back Plate Hinge
C0L044BSC CRL Brushed Satin Chrome Cologne 044 Series Wall Mount Offset Back Plate Hinge
C0L044GP CRL Gold Plated Cologne 044 Series Wall Mount Offset Back Plate Hinge
C0L044MBL CRL Matte Black Cologne 044 Series Wall Mount Offset Back Plate Hinge
C0L044PN CRL Polished Nickel Cologne 044 Series Wall Mount Offset Back Plate Hinge
C0L044SB CRL Satin Brass Cologne 044 Series Wall Mount Offset Back Plate Hinge
C0L044SC CRL Satin Chrome Cologne 044 Series Wall Mount Offset Back Plate Hinge
C0L044SN CRL Satin Nickel Cologne 044 Series Wall Mount Offset Back Plate Hinge
C0L044ULBR CRL Unlacquered Brass Cologne 044 Series Wall Mount Offset Back Plate Hinge
C0L044CH CRL Polished Chrome Cologne 044 Series Wall Mount Offset Back Plate Hinge
C0L044BR CRL Polished Brass Cologne 044 Series Wall Mount Offset Back Plate Hinge
C0L0440RB CRL Oil Rubbed Bronze Cologne 044 Series Wall Mount Offset Back Plate Hinge
C0L044ABC0 CRL Antique Brushed Copper Cologne 044 Series Wall Mount Offset Back Plate Hinge
C0L044ABN CRL Antique Brushed Nickel Cologne 044 Series Wall Mount Offset Back Plate Hinge
C0L044ABR CRL Antique Brass Cologne 044 Series Wall Mount Offset Back Plate Hinge
C0L044ABRZ CRL Antique Bronze Cologne 044 Series Wall Mount Offset Back Plate Hinge
C0L044AW CRL All White Cologne 044 Series Wall Mount Offset Back Plate Hinge
C0L044BBRZ CRL Brushed Bronze Cologne 044 Series Wall Mount Offset Back Plate Hinge
C0L044BN CRL Brushed Nickel Cologne 044 Series Wall Mount Offset Back Plate Hinge
C0L044BSC CRL Brushed Satin Chrome Cologne 044 Series Wall Mount Offset Back Plate Hinge
C0L044GP CRL Gold Plated Cologne 044 Series Wall Mount Offset Back Plate Hinge
C0L044MBL CRL Matte Black Cologne 044 Series Wall Mount Offset Back Plate Hinge
C0L044PN CRL Polished Nickel Cologne 044 Series Wall Mount Offset Back Plate Hinge
C0L044SB CRL Satin Brass Cologne 044 Series Wall Mount Offset Back Plate Hinge
C0L044SC CRL Satin Chrome Cologne 044 Series Wall Mount Offset Back Plate Hinge
C0L044SN CRL Satin Nickel Cologne 044 Series Wall Mount Offset Back Plate Hinge
C0L044ULBR CRL Unlacquered Brass Cologne 044 Series Wall Mount Offset Back Plate Hinge
STANDARD REVERSIBLE PIVOT PIN: Each Cologne Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard Cologne Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.
CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).
Using two hinges with 3/8" glass (10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 34" (864 mm).
Using two hinges with 1/2" glass (12 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 32" (813 mm).
Using three hinges with 3/8" glass (10 mm) the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 34" (864 mm).
Using three hinges with 1/2" glass (12 mm) the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 32" (813 mm).
SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required - Except C0L092 Which Requires Cut-Out for Door and Two Holes for Fixed Panel
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request by contacting CRL Technical Sales Department.
CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).
Using two hinges with 3/8" glass (10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 34" (864 mm).
Using two hinges with 1/2" glass (12 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 32" (813 mm).
Using three hinges with 3/8" glass (10 mm) the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 34" (864 mm).
Using three hinges with 1/2" glass (12 mm) the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 32" (813 mm).
SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required - Except C0L092 Which Requires Cut-Out for Door and Two Holes for Fixed Panel
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request by contacting CRL Technical Sales Department.
