CRL Polished Brass Cologne 537 Series Wall Mount Full Back Plate Standard Hinge with 5º Offset - C0L537BR
CRL Cologne Hinges are similar to the popular Vienna Hinges, but with one change: They have radius corners and beveled edges to provide a sleek appearance. Cologne Hinges are the solution for wider, heavier doors that traditional hinges are not strong enough to support. Two strategically placed steel pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. For the safety of "mouse-ears" type cut-outs, the two steel pins should be left in place. This allows the Cologne Hinge to be used with its own CRL "mouse-ears" cut-out. On the other hand, to enable increased adjustability, the two pins can be removed. This allows the Cologne Hinge to fit its own CRL rectangular shaped, square cornered cut-out. In some cases, it will also fit competitive rectangular, square cornered cut-outs.
Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
Available in Several Beautiful Finishes
3 Year Warranty
5º Pre-Set Model (Factory Set for 5º Tighter Closure Into Shower Interior)
Use Monolithic Tempered Glass
Self-Centering with Reversible 5 Degree Pivot Pin
Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
Available in Several Beautiful Finishes
3 Year Warranty
5º Pre-Set Model (Factory Set for 5º Tighter Closure Into Shower Interior)
Use Monolithic Tempered Glass
Self-Centering with Reversible 5 Degree Pivot Pin
Catalog Number: C0L537BR
Also Available in These Catalogs:
SD16 Frameless Shower Door Hardware 2015, PAGE 122S
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 160J
CRL93A Shower Door, PAGE SD027
Color: Polished Brass

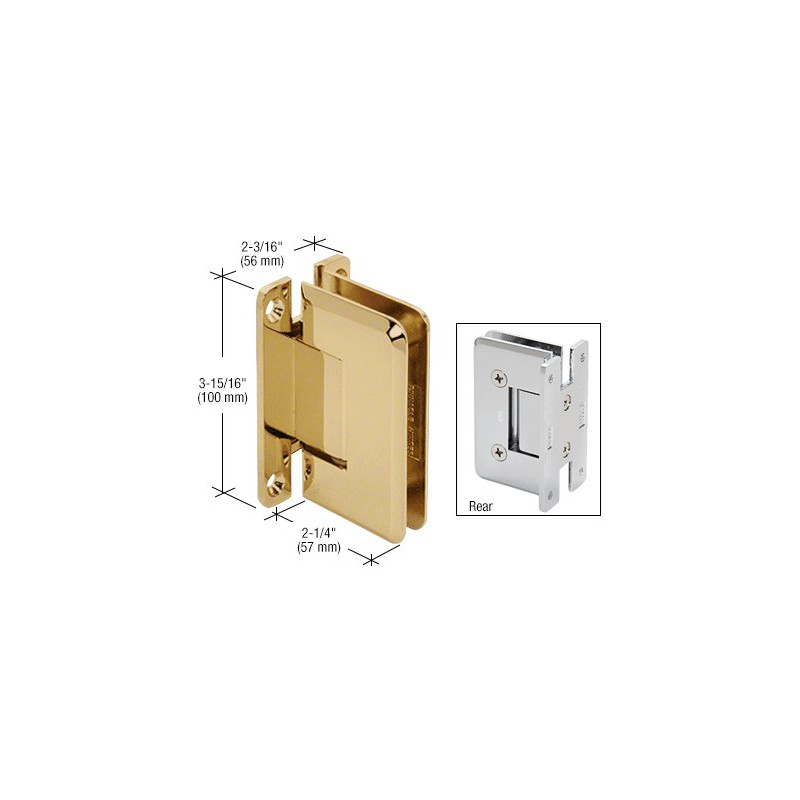

Height: 3-15/16" (100 mm)
Width: 2-1/4" (57 mm)
Ship Via: Can Ship UPS
Shipping Weight: 2 lb (907g)
Minimum Order: 1 Each
Also Available in These Catalogs:
SD16 Frameless Shower Door Hardware 2015, PAGE 122S
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 160J
CRL93A Shower Door, PAGE SD027
Color: Polished Brass
Height: 3-15/16" (100 mm)
Width: 2-1/4" (57 mm)
Ship Via: Can Ship UPS
Shipping Weight: 2 lb (907g)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
C0L537CH CRL Polished Chrome Cologne 537 Series Wall Mount Full Back Plate Standard Hinge with 5 Offset
C0L537BR CRL Polished Brass Cologne 537 Series Wall Mount Full Back Plate Standard Hinge with 5 Offset
C0L5370RB CRL Oil Rubbed Bronze Cologne 537 Series Wall Mount Full Back Plate Standard Hinge with 5 Offset
C0L537BN CRL Brushed Nickel Cologne 537 Series Wall Mount Full Back Plate Standard Hinge with 5 Offset
C0L537MBL CRL Matte Black Cologne 537 Series Wall Mount Full Back Plate Standard Hinge with 5 Offset
C0L537CH CRL Polished Chrome Cologne 537 Series Wall Mount Full Back Plate Standard Hinge with 5 Offset
C0L537BR CRL Polished Brass Cologne 537 Series Wall Mount Full Back Plate Standard Hinge with 5 Offset
C0L5370RB CRL Oil Rubbed Bronze Cologne 537 Series Wall Mount Full Back Plate Standard Hinge with 5 Offset
C0L537BN CRL Brushed Nickel Cologne 537 Series Wall Mount Full Back Plate Standard Hinge with 5 Offset
C0L537MBL CRL Matte Black Cologne 537 Series Wall Mount Full Back Plate Standard Hinge with 5 Offset
STANDARD REVERSIBLE PIVOT PIN: Each Cologne Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90. The opposite side of the Pin is marked 85. Standard Cologne Hinges come with the 90 side activated. Pre-Set Models come with the Pin pre-set for 85 (5 tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.
CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90. If the standard 5 Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45).
Using two hinges with 3/8" to 1/2" glass (10 and 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).
Using three hinges with 3/8" and 1/2" glass (10 and 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum width of 36" (914 mm).
SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 In and 90 Out
Closing Type: Self-Centering when within 15 of closed position.
Cut-Out Required - Except C0L092 Which Requires Cut-Out for Door and Two Holes for Fixed Panel
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request by contacting CRL Technical Sales Department.
CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90. If the standard 5 Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45).
Using two hinges with 3/8" to 1/2" glass (10 and 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).
Using three hinges with 3/8" and 1/2" glass (10 and 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum width of 36" (914 mm).
SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 In and 90 Out
Closing Type: Self-Centering when within 15 of closed position.
Cut-Out Required - Except C0L092 Which Requires Cut-Out for Door and Two Holes for Fixed Panel
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request by contacting CRL Technical Sales Department.
