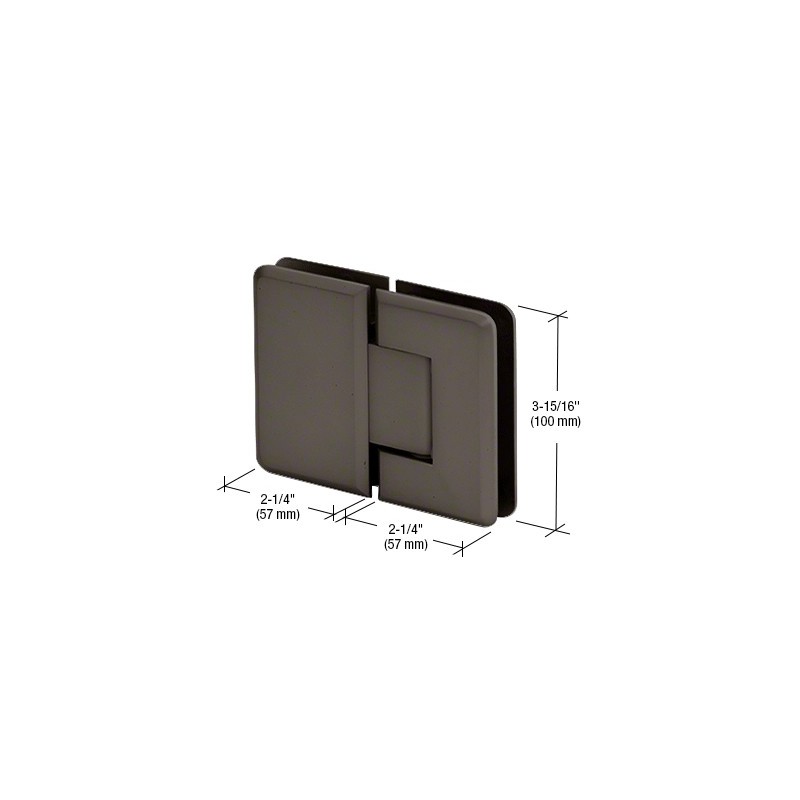

CRL Oil Rubbed Bronze 180º Glass-to-Glass Positive Close Cologne Hinge - C0L7800RB
The Positive Close Cologne Hinge contains an internal grooved pivot pin that allow the door a precise and positive closing action. This is a different closing action than the typical self-centering Cologne Hinges. Stocked in our four most popular finishes, and available in other finishes upon special order.
Special Grooved Internal Pivot Pin Allows Positive and Precise Closing Action
Stocked in Wall Mount and 180º Glass-to-Glass Hinges
Stocked in our Four Most Popular Finishes
Other Finished Available Upon Special Order
Special Grooved Internal Pivot Pin Allows Positive and Precise Closing Action
Stocked in Wall Mount and 180º Glass-to-Glass Hinges
Stocked in our Four Most Popular Finishes
Other Finished Available Upon Special Order
Catalog Number: C0L7800RB
Also Available in These Catalogs:
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 161J
Color: Oil Rubbed Bronze
Ship Via: Can Ship UPS
Minimum Order: 1 Each
Also Available in These Catalogs:
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 161J
Color: Oil Rubbed Bronze
Ship Via: Can Ship UPS
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
C0L780CH CRL Chrome 180 Glass-to-Glass Positive Close Cologne Hinge
C0L7800RB CRL Oil Rubbed Bronze 180 Glass-to-Glass Positive Close Cologne Hinge
C0L780BN CRL Brushed Nickel 180 Glass-to-Glass Positive Close Cologne Hinge
C0L780CH CRL Chrome 180 Glass-to-Glass Positive Close Cologne Hinge
C0L7800RB CRL Oil Rubbed Bronze 180 Glass-to-Glass Positive Close Cologne Hinge
C0L780BN CRL Brushed Nickel 180 Glass-to-Glass Positive Close Cologne Hinge
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).
Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).
SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 Degrees Inwards and Outwards
Closing Type: Positive Closing to Zero Degrees
Cut-Out Required
Includes: Gaskets, Phillips Screws, Allen Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact CRL Technical Sales Shower Door Department.
Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).
SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 Degrees Inwards and Outwards
Closing Type: Positive Closing to Zero Degrees
Cut-Out Required
Includes: Gaskets, Phillips Screws, Allen Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact CRL Technical Sales Shower Door Department.
