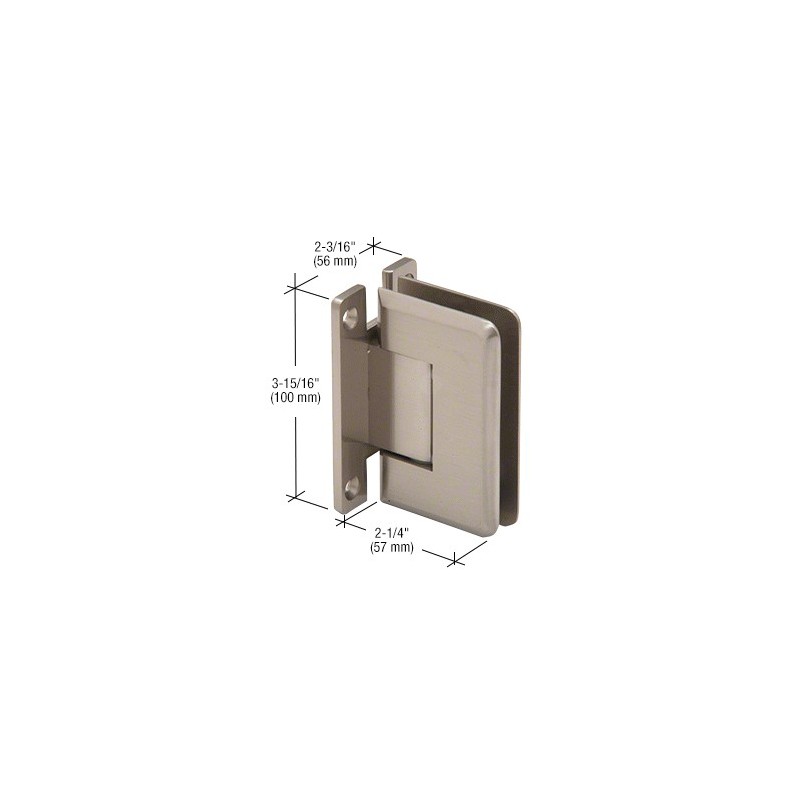

CRL Brushed Nickel Cologne Series Wall Mount Positive Close Hinge - C0L067BN
The Positive Close Cologne Hinge contains an internal grooved pivot pin that allow the door a precise and positive closing action. This is a different closing action than the typical self-centering Cologne Hinges. Stocked in our four most popular finishes, and available in other finishes upon special order.
Special Grooved Internal Pivot Pin Allows Positive and Precise Closing Action
Stocked in Wall Mount and 180 Degree Glass-to-Glass Hinges
Stocked in Four Most Popular Finishes
Other Finished Available Upon Special Order
Special Grooved Internal Pivot Pin Allows Positive and Precise Closing Action
Stocked in Wall Mount and 180 Degree Glass-to-Glass Hinges
Stocked in Four Most Popular Finishes
Other Finished Available Upon Special Order
Catalog Number: C0L067BN
Also Available in These Catalogs:
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 161J
Color: Brushed Nickel
Ship Via: Can Ship UPS
Minimum Order: 1 Each
Also Available in These Catalogs:
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 161J
Color: Brushed Nickel
Ship Via: Can Ship UPS
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
C0L067CH CRL Chrome Cologne Series Wall Mount Positive Close Cologne Hinge
C0L0670RB CRL Oil Rubbed Bronze Cologne Series Wall Mount Positive Close Hinge
C0L067BN CRL Brushed Nickel Cologne Series Wall Mount Positive Close Hinge
C0L067CH CRL Chrome Cologne Series Wall Mount Positive Close Cologne Hinge
C0L0670RB CRL Oil Rubbed Bronze Cologne Series Wall Mount Positive Close Hinge
C0L067BN CRL Brushed Nickel Cologne Series Wall Mount Positive Close Hinge
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).
Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).
SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 Degrees Inwards and Outwards
Closing Type: Positive Closing to Zero Degrees
Cut-Out Required
Includes: Gaskets, Phillips Screws, Allen Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact CRL Technical Sales Shower Door Department.
Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).
SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 Degrees Inwards and Outwards
Closing Type: Positive Closing to Zero Degrees
Cut-Out Required
Includes: Gaskets, Phillips Screws, Allen Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact CRL Technical Sales Shower Door Department.
