CRL Black Powder Coat Wide U-Channel with Top Load Roll-In Glazing Gasket for 3/8" and 1/2" Glass - 120" Length - NH2BLSL
Catalog Number: NH2BLSL
Also Available in These Catalogs:
AH18 Architectural Hardware Catalog 2018, PAGE 154Z
CRL63A Architectural Hardware Master, PAGE 160H
CRL53R Glass & Glazing Catalog, PAGE 394G
CRL93A Architectural Hardware, PAGE CH042
Color: Black
Length: 120" (3.05 m)

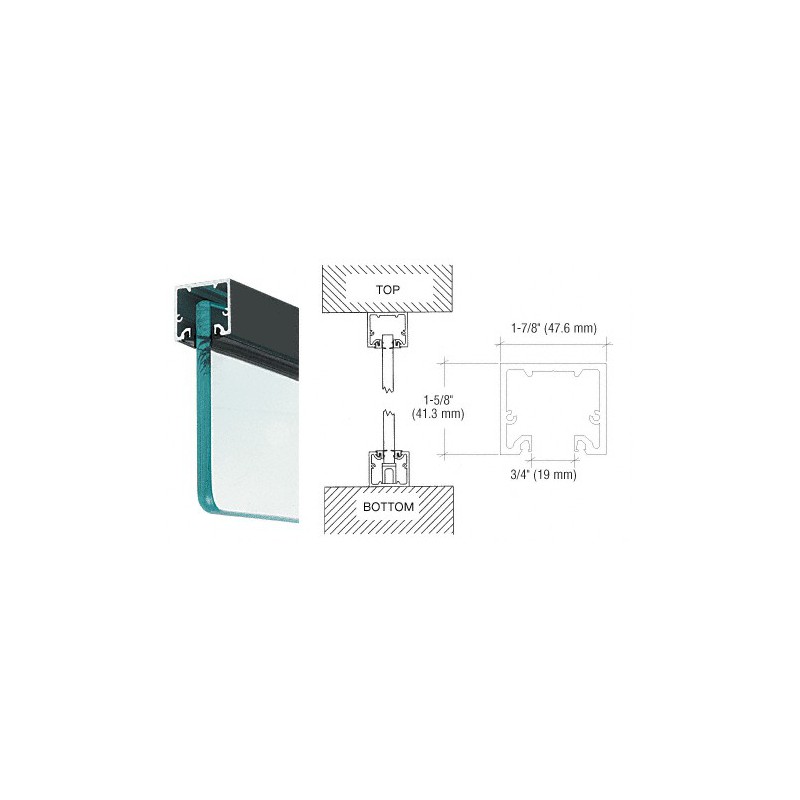

Size: 1-7/8" x 1-5/8" (47 x 41 mm)
Height: 1-5/8" (41 mm)
Ship Via: No UPS - Common Carrier Only
Shipping Weight: 12 lb (5.44kg)
Minimum Order: 1 Stock Length
Packing Charge: $ 6.50 for orders of fewer than 5 stock length of overhead u-channel
Finishes and/or shapes may be combined to meet minimum quantity.
Also Available in These Catalogs:
AH18 Architectural Hardware Catalog 2018, PAGE 154Z
CRL63A Architectural Hardware Master, PAGE 160H
CRL53R Glass & Glazing Catalog, PAGE 394G
CRL93A Architectural Hardware, PAGE CH042
Color: Black
Length: 120" (3.05 m)
Size: 1-7/8" x 1-5/8" (47 x 41 mm)
Height: 1-5/8" (41 mm)
Ship Via: No UPS - Common Carrier Only
Shipping Weight: 12 lb (5.44kg)
Minimum Order: 1 Stock Length
Packing Charge: $ 6.50 for orders of fewer than 5 stock length of overhead u-channel
Finishes and/or shapes may be combined to meet minimum quantity.
CATALOG NUMBER DESCRIPTION COLOR
NH2SASL CRL Satin Anodized Wide U-Channel with Top Load Roll-In Glazing Gasket for 3/8" and 1/2" Glass - 120" Length
NH2DUSL CRL Black Bronze Anodized Wide U-Channel with Top Load Roll-In Glazing Gasket for 3/8" and 1/2" Glass - 120" Length
NH2BLSL CRL Black Powder Coat Wide U-Channel with Top Load Roll-In Glazing Gasket for 3/8" and 1/2" Glass - 120" Length
NH2BSSL CRL Brushed Stainless Wide U-Channel with Top Load Roll-In Glazing Gasket for 3/8" and 1/2" Glass - 120" Length
NH2PBSL CRL Polished Brass Wide U-Channel with Top Load Roll-In Glazing Gasket for 3/8" and 1/2" Glass - 120" Length
NH2PSSL CRL Polished Stainless Wide U-Channel with Top Load Roll-In Glazing Gasket for 3/8" and 1/2" Glass - 120" Length
NH2SASL CRL Satin Anodized Wide U-Channel with Top Load Roll-In Glazing Gasket for 3/8" and 1/2" Glass - 120" Length
NH2DUSL CRL Black Bronze Anodized Wide U-Channel with Top Load Roll-In Glazing Gasket for 3/8" and 1/2" Glass - 120" Length
NH2BLSL CRL Black Powder Coat Wide U-Channel with Top Load Roll-In Glazing Gasket for 3/8" and 1/2" Glass - 120" Length
NH2BSSL CRL Brushed Stainless Wide U-Channel with Top Load Roll-In Glazing Gasket for 3/8" and 1/2" Glass - 120" Length
NH2PBSL CRL Polished Brass Wide U-Channel with Top Load Roll-In Glazing Gasket for 3/8" and 1/2" Glass - 120" Length
NH2PSSL CRL Polished Stainless Wide U-Channel with Top Load Roll-In Glazing Gasket for 3/8" and 1/2" Glass - 120" Length
(1) As a U-Channel that would be the same width as our Sidelite Rails and Door Rails;
(2) As a Narrow Header that is the same width as our Sidelite Rails and Door Rails, and will accept a Top Free-Swinging Pivot to secure the top of the doors;
(3) As an Even Sight Line System, accomplished by first securing the fabricated Narrow Header to the top of the opening, then securing the Sidelite Rail to the Narrow Header with the 1/4" (6 mm) Header Saddle. All drilling, tapping, and fabrication can be done at your request during manufacturing to save time while installing.
Our policy for Quick Pick products is as follows: These products are stocked in our centralized service center, and upon your order will be shipped on our next re-supply truck to your regional CRL service center. Re-supply trucks ship every week, so if your regional service center does not have stock of the product you require, your order can be filled in just a few days.
You can check the stock availability of any CRL product when you click on the box above marked "CHECK STOCK AVAILABILITY".
(2) As a Narrow Header that is the same width as our Sidelite Rails and Door Rails, and will accept a Top Free-Swinging Pivot to secure the top of the doors;
(3) As an Even Sight Line System, accomplished by first securing the fabricated Narrow Header to the top of the opening, then securing the Sidelite Rail to the Narrow Header with the 1/4" (6 mm) Header Saddle. All drilling, tapping, and fabrication can be done at your request during manufacturing to save time while installing.
Our policy for Quick Pick products is as follows: These products are stocked in our centralized service center, and upon your order will be shipped on our next re-supply truck to your regional CRL service center. Re-supply trucks ship every week, so if your regional service center does not have stock of the product you require, your order can be filled in just a few days.
You can check the stock availability of any CRL product when you click on the box above marked "CHECK STOCK AVAILABILITY".
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting Glass Experts customer service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
