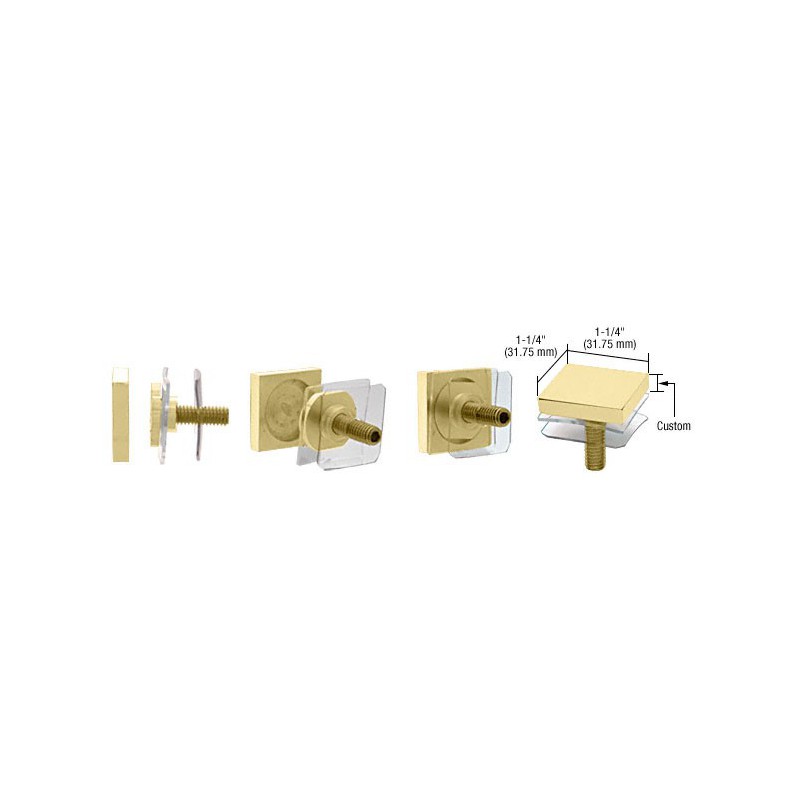

CRL's 1-1/4" (31.7 mm) Custom Square Standoff Cap Assemblies are easily installed with the Square Standoff Bases due to our exclusive design. The secondary cap, with removable allen screw, has two flat sides which are used to secure the cap to the panel material. When firmly in place, the top cap is paced over the secondary cap, then aligned with the square base and held in position with undetectable double-sided tape. With this design there is no "adjustment" or "trial-and-error" required to line up the cap with the base. Requires a 5/8" (16 mm) hole for assembly. The complete assembly consists of: (1) square cap with double sided tape, (1) secondary cap, (1) 5/16"-18 x 1" allen screw, (1) clear plastic washer with sleeve, and (1) clear plastic washer.
Uniquely Styled
Custom Thickness
Use with 1-1/4" (31.7 mm) Square Base or as Decorative Wall Fastener
Uniquely Styled
Custom Thickness
Use with 1-1/4" (31.7 mm) Square Base or as Decorative Wall Fastener
Catalog Number: SCAP125CSB
Also Available in These Catalogs:
Color: Satin Brass
Width: 1-1/4" (31.7 mm) square
Thickness: Custom
Ship Via: Can Ship UPS
Shipping Weight: 1 lb (454g)
Also Available in These Catalogs:
Color: Satin Brass
Width: 1-1/4" (31.7 mm) square
Thickness: Custom
Ship Via: Can Ship UPS
Shipping Weight: 1 lb (454g)
CATALOG NUMBER DESCRIPTION COLOR
SCAP125C0RB CRL Custom Oil Rubbed Bronze 1-1/4" Square Standoff Cap
SCAP125CBR CRL Custom Brass 1-1/4" Square Standoff Cap
SCAP125CBS CRL Custom Brushed Stainless 1-1/4" Square Standoff Cap
SCAP125CPS CRL Custom Polished Stainless 1-1/4" Square Standoff Cap
SCAP125CPT CRL Custom Painted 1-1/4" Square Standoff Cap
SCAP125CSB CRL Custom Satin Brass 1-1/4" Square Standoff Cap
SCAP125CSC CRL Custom Satin Chrome 1-1/4" Square Standoff Cap
SCAP125C0RB CRL Custom Oil Rubbed Bronze 1-1/4" Square Standoff Cap
SCAP125CBR CRL Custom Brass 1-1/4" Square Standoff Cap
SCAP125CBS CRL Custom Brushed Stainless 1-1/4" Square Standoff Cap
SCAP125CPS CRL Custom Polished Stainless 1-1/4" Square Standoff Cap
SCAP125CPT CRL Custom Painted 1-1/4" Square Standoff Cap
SCAP125CSB CRL Custom Satin Brass 1-1/4" Square Standoff Cap
SCAP125CSC CRL Custom Satin Chrome 1-1/4" Square Standoff Cap
No additional product information available at this time.
