CRL Black 1/2" Fixed Panel Shower Door Deep U-Channel - 95" - SDCD12BL

Finish: BLACK
$22.01
Quantity

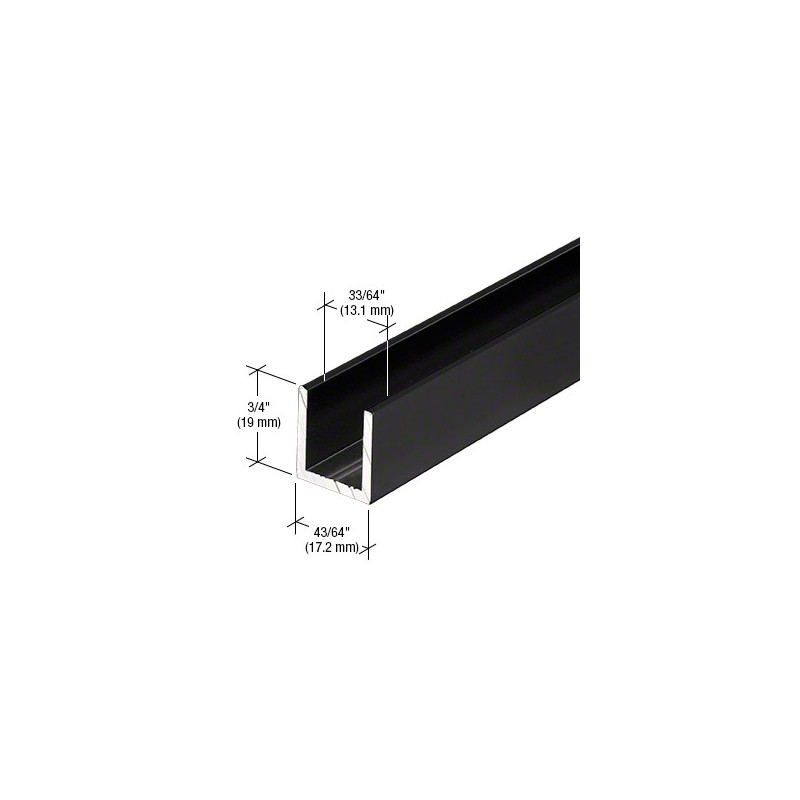

CRL Deep U-Channel is for securing fixed panels of glass to the wall, ceiling or floor. Widths suitable for 1/2" (12 mm) thick glass are available, and are individually wrapped to protect the finish. The 3/4" (19 mm) high profile Deep U-Channel can be used also as the top channel in installations where the glass must be inserted into the top, then lowered into the Regular U-Channel used at the bottom of the enclosure. Over a dozen stock finishes are offered.
For 3/8" and 1/2" (10 and 12 mm) Thick Glass
Deep Pocket Does Excellent Job of Securing Fixed Panels of Glass
May Be Used Alone or with Regular Depth U-Channel
Wet Glazed with Clear Silicone to Secure Glass
All Available in Popular 95" (2.41 m) Lengths, Some Available in Economical 144" (3.66 m) Stock Lengths
End Caps Offered to Conceal Ends of Channel
Use Monolithic Tempered Glass
Catalog Number: SDCD12BL
Also Available in These Catalogs:
SD16 Frameless Shower Door Hardware 2015, PAGE 196S
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 302J
CRL53R Glass & Glazing Catalog, PAGE 592G
Color: Black
Length: 95" (2.41 m)
Ship Via: UPS Oversize Rate
Shipping Weight: 1.527 lb (693g)
Minimum Order: 1 Each
Packing Charge: $ 6.50 for orders of fewer than 5 each of stock length material
Finishes and/or shapes may be combined to meet minimum quantity.
CATALOG NUMBER DESCRIPTION COLOR
SDCD12BA CRL Brite Anodized 1/2" Fixed Panel Shower Door Deep U-Channel - 95"
SDCD12MBL CRL Matte Black 1/2" Fixed Panel Shower Door Deep U-Channel - 95"
SDCD12BGA CRL Brite Gold Anodized 1/2" Fixed Panel Shower Door Deep U-Channel - 95"
SDCD120RB CRL Oil Rubbed Bronze 1/2" Fixed Panel Shower Door Deep U-Channel - 95"
SDCD12A CRL Satin Anodized 1/2" Fixed Panel Shower Door Deep U-Channel - 95"
SDCD12AB CRL Brushed Anodized 1/2" Fixed Panel Shower Door Deep U-Channel - 95"
SDCD12ABC0 CRL Antique Brushed Copper 1/2" Fixed Panel Shower Door Deep U-Channel - 95"
SDCD12ABN CRL Antique Brushed Nickel 1/2" Fixed Panel Shower Door Deep U-Channel - 95"
SDCD12ABRS CRL Antique Brass 1/2" Fixed Panel Shower Door Deep U-Channel - 95"
SDCD12BBRZ CRL Brushed Bronze 1/2" Fixed Panel Shower Door Deep U-Channel - 95"
SDCD12BL CRL Black 1/2" Fixed Panel Shower Door Deep U-Channel - 95"
SDCD12BN CRL Brushed Nickel 1/2" Fixed Panel Shower Door Deep U-Channel - 95"
SDCD12BS CRL Brushed Stainless 1/2" Fixed Panel Shower Door Deep U-Channel - 95"
SDCD12GM CRL Gun Metal 1/2" Fixed Panel Shower Door Deep U-Channel - 95"
SDCD12PC0 CRL Polished Copper 1/2" Fixed Panel Shower Door Deep U-Channel - 95"
SDCD12PN CRL Polished Nickel 1/2" Fixed Panel Shower Door Deep U-Channel - 95"
SDCD12PS CRL Polished Stainless 1/2" Fixed Panel Shower Door Deep U-Channel - 95"
SDCD12SB CRL Satin Brass 1/2" Fixed Panel Shower Door Deep U-Channel - 95"
SDCD12SN CRL Satin Nickel 1/2" Fixed Panel Shower Door Deep U-Channel - 95"
SDCD12W CRL White 1/2" Fixed Panel Shower Door Deep U-Channel - 95"
SPECIFICATIONS:
Typical Uses: Most Commonly Used in Frameless Shower Installations for Securing Fixed Panels of Glass to the Wall, Ceiling or Floor
