CRL Polished Chrome Essence Series Basic Sliding Door Kit - ESS1CH
Finish: POLISHED CHROME
$603.00

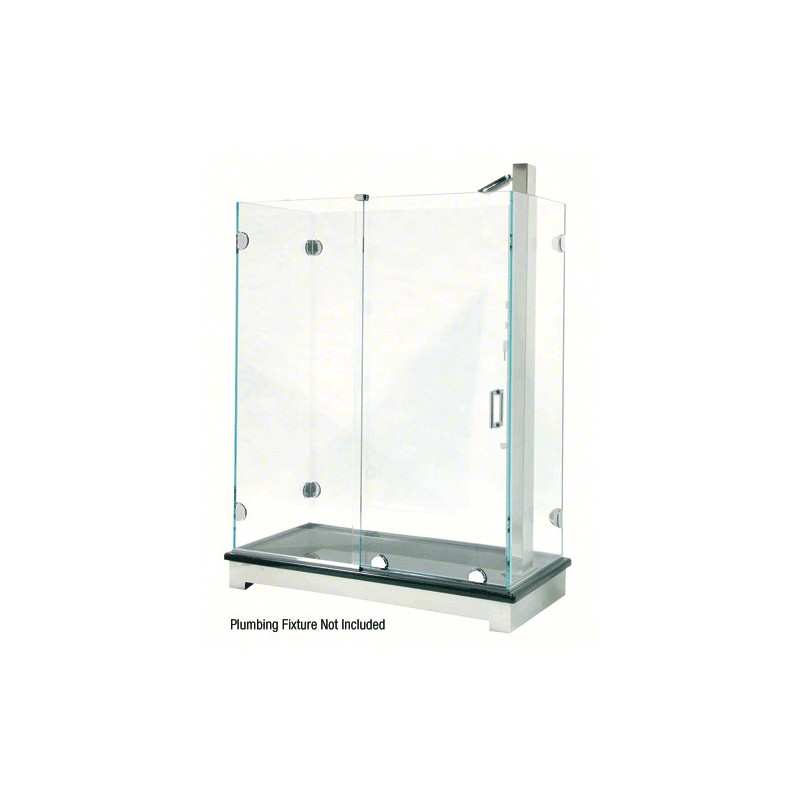

The CRL Essence Series Basic Sliding Door Kit is a headerless system that offers a frameless appearance both vertically and horizontally. Smooth and quiet operation is the cornerstone of the Essence Series. Water management is achieved horizontally via the use of the bottom track, and vertically with the use of our DK98L Clear Seal. The anti-derail/anti-pinch guard features of the curved shaped bottom rollers make them unique. The Essence Series is for use with only 1/2" (12 mm) thick tempered safety glass (not included). Stocked in four popular finishes.
Patents: U.S. 9,364,121; Canada 2,853,462; Australia 2012328876
Headerless System Offers Frameless Look Both Vertically and Horizontally
Bottom Rolling System has Integrated Height Adjustment
Rollers Include Anti-Derail/Anti-Pinch Features
For Use with Only 1/2" (12 mm) Thick Tempered Safety Glass (Not Included)
Stocked in Four Popular Finishes
Glass Brackets and Door Handle or Knob Sold Separately
Use Monolithic Tempered Glass
Patents: U.S. 9,364,121; Canada 2,853,462; Australia 2012328876
Headerless System Offers Frameless Look Both Vertically and Horizontally
Bottom Rolling System has Integrated Height Adjustment
Rollers Include Anti-Derail/Anti-Pinch Features
For Use with Only 1/2" (12 mm) Thick Tempered Safety Glass (Not Included)
Stocked in Four Popular Finishes
Glass Brackets and Door Handle or Knob Sold Separately
Use Monolithic Tempered Glass
Catalog Number: ESS1CH
Also Available in These Catalogs:
SD16 Frameless Shower Door Hardware 2015, PAGE 214S
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 328J
CRL83R Door and Window Replacement, PAGE 371W
FS14 Frameless Shower Door Systems, PAGE FS02
CRL93A Shower Door, PAGE SD138
Color: Polished Chrome
Glass Thickness Range: 1/2" (12 mm)
Maximum Door Size: 34" (864 mm) Wide, 84" (2.13 m) High, or 127 lbs. (57.6 kg)
Basic Kit Fabrication: Notch Required for Bottom Rollers, Holes Required for Top Guide
Ship Via: UPS Oversize Rate
Minimum Order: 1 Each
Also Available in These Catalogs:
SD16 Frameless Shower Door Hardware 2015, PAGE 214S
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 328J
CRL83R Door and Window Replacement, PAGE 371W
FS14 Frameless Shower Door Systems, PAGE FS02
CRL93A Shower Door, PAGE SD138
Color: Polished Chrome
Glass Thickness Range: 1/2" (12 mm)
Maximum Door Size: 34" (864 mm) Wide, 84" (2.13 m) High, or 127 lbs. (57.6 kg)
Basic Kit Fabrication: Notch Required for Bottom Rollers, Holes Required for Top Guide
Ship Via: UPS Oversize Rate
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
ESS1CH CRL Polished Chrome Essence Series Basic Sliding Door Kit
ESS1BR CRL Polished Brass Essence Series Basic Sliding Door Kit
ESS10RB CRL Oil Rubbed Bronze Essence Series Basic Sliding Door Kit
ESS1BN CRL Brushed Nickel Essence Series Basic Sliding Door Kit
ESS1CH CRL Polished Chrome Essence Series Basic Sliding Door Kit
ESS1BR CRL Polished Brass Essence Series Basic Sliding Door Kit
ESS10RB CRL Oil Rubbed Bronze Essence Series Basic Sliding Door Kit
ESS1BN CRL Brushed Nickel Essence Series Basic Sliding Door Kit
KIT INCLUDES:
Two - Bottom Rollers
One - Spanner Wrench for Roller Adjustment
One - Top Door Guide
One - 64" (1.63 m) Bottom Track
One - 98" (2.49 m) U-Channel
One - 98" (2.49 m) Plastic L-Seal
One - SDCEC12 End Cap for Channel
One - 1/16" (1.6 mm) Neoprene Setting Block
NOTE: Glass Brackets, Handle or Knob, and Other Accessories Sold Separately.
Two - Bottom Rollers
One - Spanner Wrench for Roller Adjustment
One - Top Door Guide
One - 64" (1.63 m) Bottom Track
One - 98" (2.49 m) U-Channel
One - 98" (2.49 m) Plastic L-Seal
One - SDCEC12 End Cap for Channel
One - 1/16" (1.6 mm) Neoprene Setting Block
NOTE: Glass Brackets, Handle or Knob, and Other Accessories Sold Separately.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting Glass Experts customer service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
