CRL Brushed Stainless European Patch Door Kit for Use with Fixed Transom and Two Sidelites - With Lock - PHE5LBS
CRL PHE5 European Door Kits come with all the hardware to complete a free-swinging door with fixed transom and two sidelites, (except glass and additional supports for the fixed transom and sidelites). Pivot setback is 2-9/16" (65 mm). Floor closer with tapered spindle (ordered separately) may be used with this Kit.
All-Glass' Look
For 3/8" or 1/2" (10 or 12 mm) Tempered Glass
Available With or Without Locks
All-Glass' Look
For 3/8" or 1/2" (10 or 12 mm) Tempered Glass
Available With or Without Locks
Catalog Number: PHE5LBS
Also Available in These Catalogs:
CRL14D Door and Entrance Catalog, PAGE 141D
AH18 Architectural Hardware Catalog 2018, PAGE 203Z
Color: Brushed Stainless
Ship Via: Can Ship UPS
Also Available in These Catalogs:
CRL14D Door and Entrance Catalog, PAGE 141D
AH18 Architectural Hardware Catalog 2018, PAGE 203Z
Color: Brushed Stainless
Ship Via: Can Ship UPS
CATALOG NUMBER DESCRIPTION COLOR
PHE5LA CRL Satin Anodized European Patch Door Kit for Use with Fixed Transom and Two Sidelites - With Lock
PHE5LBR CRL Polished Brass European Patch Door Kit for Use with Fixed Transom and Two Sidelites - With Lock
PHE5LBS CRL Brushed Stainless European Patch Door Kit for Use with Fixed Transom and Two Sidelites - With Lock
PHE5LDU CRL Black Bronze Anodized European Patch Door Kit for Use with Fixed Transom and Two Sidelites - With Lock
PHE5LPS CRL Polished Stainless European Patch Door Kit for Use with Fixed Transom and Two Sidelites - With Lock
PHE5LSB CRL Satin Brass European Patch Door Kit for Use with Fixed Transom and Two Sidelites - With Lock
PHE5LA CRL Satin Anodized European Patch Door Kit for Use with Fixed Transom and Two Sidelites - With Lock
PHE5LBR CRL Polished Brass European Patch Door Kit for Use with Fixed Transom and Two Sidelites - With Lock
PHE5LBS CRL Brushed Stainless European Patch Door Kit for Use with Fixed Transom and Two Sidelites - With Lock
PHE5LDU CRL Black Bronze Anodized European Patch Door Kit for Use with Fixed Transom and Two Sidelites - With Lock
PHE5LPS CRL Polished Stainless European Patch Door Kit for Use with Fixed Transom and Two Sidelites - With Lock
PHE5LSB CRL Satin Brass European Patch Door Kit for Use with Fixed Transom and Two Sidelites - With Lock

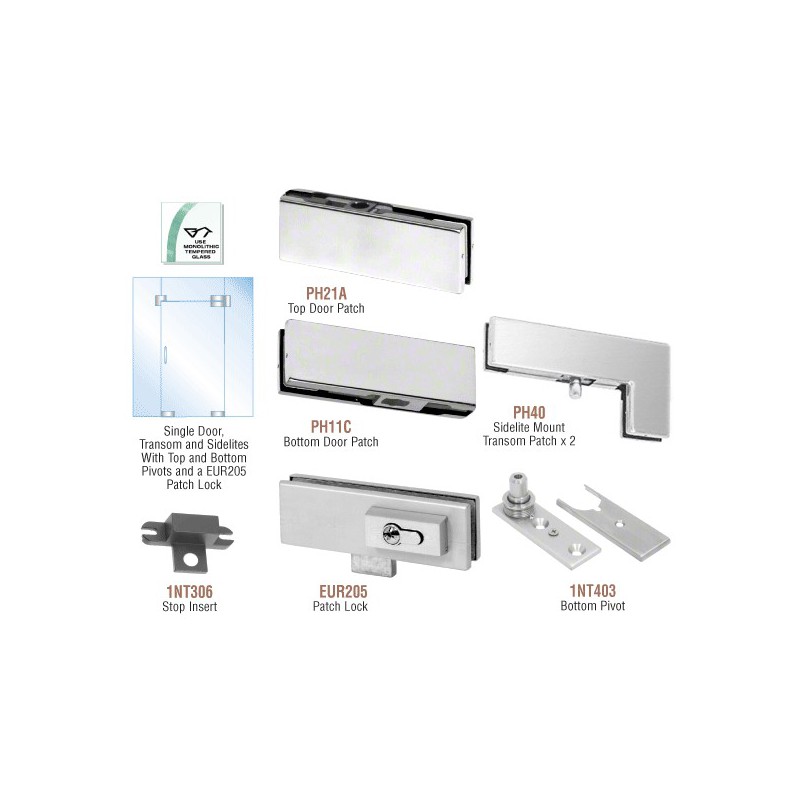

Kit Contains:
2 - PH40 Sidelite Mount Transom Patches
1 - PH21A Top Door Patch
1 - PH11C Bottom Door Patch
1 - 1NT306 Stop Insert
1 - 1NT403 Bottom Pivot
Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass. (Holes and notches are required in the glass.)
Kits with lock also come with one each Cat. No. EUR205 patch lock. Cylinders, thumbturns, and keepers are ordered separately.
NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.
2 - PH40 Sidelite Mount Transom Patches
1 - PH21A Top Door Patch
1 - PH11C Bottom Door Patch
1 - 1NT306 Stop Insert
1 - 1NT403 Bottom Pivot
Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass. (Holes and notches are required in the glass.)
Kits with lock also come with one each Cat. No. EUR205 patch lock. Cylinders, thumbturns, and keepers are ordered separately.
NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.
