CRL Satin Brass European Patch Door Kit for Use with Fixed Transom - With Lock - PHE3LSB
CRL PHE3 European Patch Door Kits come with all the hardware to complete a single free-swinging door with fixed transom, (except glass and additional supports for the fixed transom). Pivot setback is 2-9/16" (65 mm). Floor closers with tapered spindles (ordered separately) may be used with this Kit.
Fittings for Fixed Glass Transom
High Density Cast Body
Fittings for Fixed Glass Transom
High Density Cast Body
Catalog Number: PHE3LSB
Also Available in These Catalogs:
AH18 Architectural Hardware Catalog 2018, PAGE 201Z
Color: Satin Brass
Ship Via: Can Ship UPS
Also Available in These Catalogs:
AH18 Architectural Hardware Catalog 2018, PAGE 201Z
Color: Satin Brass
Ship Via: Can Ship UPS
CATALOG NUMBER DESCRIPTION COLOR
PHE3LA CRL Satin Anodized European Patch Door Kit for Use with Fixed Transom - With Lock
PHE3LBR CRL Polished Brass European Patch Door Kit for Use with Fixed Transom - With Lock
PHE3LBS CRL Brushed Stainless European Patch Door Kit for Use with Fixed Transom - With Lock
PHE3LDU CRL Black Bronze Anodized European Patch Door Kit for Use with Fixed Transom - With Lock
PHE3LPS CRL Polished Stainless European Patch Door Kit for Use with Fixed Transom - With Lock
PHE3LSB CRL Satin Brass European Patch Door Kit for Use with Fixed Transom - With Lock
PHE3LA CRL Satin Anodized European Patch Door Kit for Use with Fixed Transom - With Lock
PHE3LBR CRL Polished Brass European Patch Door Kit for Use with Fixed Transom - With Lock
PHE3LBS CRL Brushed Stainless European Patch Door Kit for Use with Fixed Transom - With Lock
PHE3LDU CRL Black Bronze Anodized European Patch Door Kit for Use with Fixed Transom - With Lock
PHE3LPS CRL Polished Stainless European Patch Door Kit for Use with Fixed Transom - With Lock
PHE3LSB CRL Satin Brass European Patch Door Kit for Use with Fixed Transom - With Lock

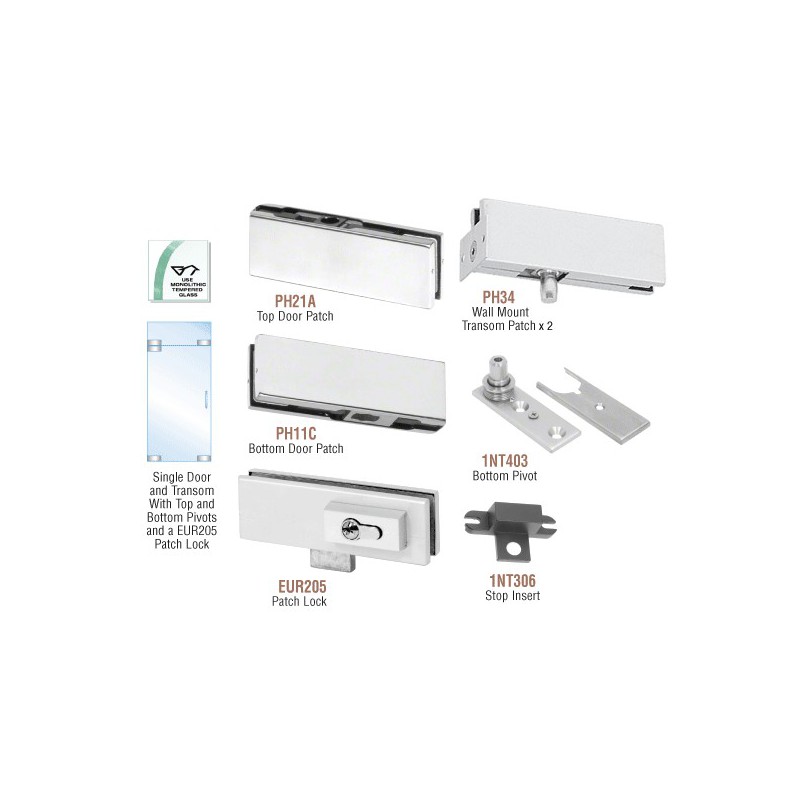

Kit Contains:
1 - PH21A Top Door Patch
1 - PH11C Bottom Door Patch
2 - PH34 Wall Mount Transom Patches
1 - 1NT306 Stop Insert
1 - 1NT403 Bottom Pivot
Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass. (Holes and notches are required in the glass.)
Kits with lock also come with one each Cat. No. EUR205 patch lock. Cylinders, thumbturns, and keepers are ordered separately.
NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.
1 - PH21A Top Door Patch
1 - PH11C Bottom Door Patch
2 - PH34 Wall Mount Transom Patches
1 - 1NT306 Stop Insert
1 - 1NT403 Bottom Pivot
Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass. (Holes and notches are required in the glass.)
Kits with lock also come with one each Cat. No. EUR205 patch lock. Cylinders, thumbturns, and keepers are ordered separately.
NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.
