CRL Matte Black Geneva 037 Series Wall Mount Full Back Plate Standard Hinge - GEN037MBL
The CRL Geneva Series of professional Hinges is able to accommodate 5/16" (8 mm) to 1/2" (12 mm) glass. A variety of six styles gives design flexibility, including three different Wall Mount and three different Glass-to-Glass types. Geneva Hinges are self-centering and contain a Reversible 5 Degree Pivot Pin. In addition, Custom Pivot Pins are available to accommodate "off-angle" installations. Made of solid brass with all moving parts (pins and springs) in stainless steel.
Self-Centering with Reversible 5 Degree Pivot Pin
Use Monolithic Tempered Glass
Available in Several Beautiful Finishes
Three Year Warranty
Wall Mount Full Back Plate Standard Model (Factory Set for Standard Closing Position)
Self-Centering with Reversible 5 Degree Pivot Pin
Use Monolithic Tempered Glass
Available in Several Beautiful Finishes
Three Year Warranty
Wall Mount Full Back Plate Standard Model (Factory Set for Standard Closing Position)
Catalog Number: GEN037MBL
Also Available in These Catalogs:
Color: Matte Black
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)

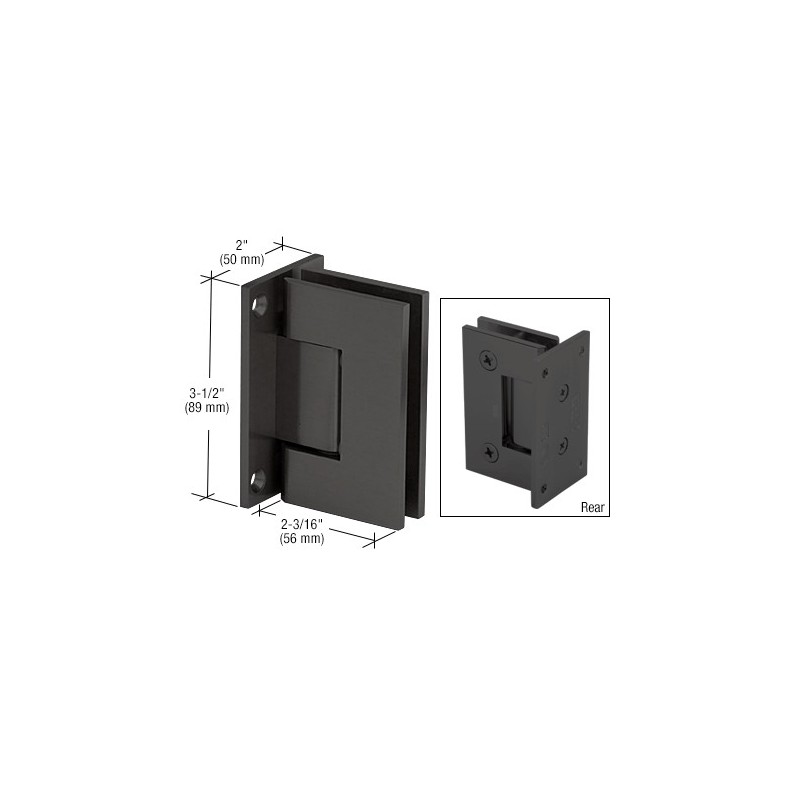

Height: 3-1/2" (89 mm)
Width: 2" (50 mm)
Ship Via: Can Ship UPS
Shipping Weight: 2 lb (907g)
Minimum Order: 1 Each
Also Available in These Catalogs:
Color: Matte Black
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Height: 3-1/2" (89 mm)
Width: 2" (50 mm)
Ship Via: Can Ship UPS
Shipping Weight: 2 lb (907g)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
GEN037CH CRL Polished Chrome Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037BR CRL Polished Brass Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN0370RB CRL Oil Rubbed Bronze Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037ABC0 CRL Antique Brushed Copper Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037ABL CRL All Black Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037ABN CRL Antique Brushed Nickel Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037ABR CRL Antique Brass Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037ABRZ CRL Antique Bronze Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037AW CRL All White Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037BBRZ CRL Brushed Bronze Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037BC0 CRL Brushed Copper Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037BL CRL Black with Chrome Center Block Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037BN CRL Brushed Nickel Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037BSC CRL Brushed Satin Chrome Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037CBA CRL Chrome with Brass Accent Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037GM CRL Gun Metal Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037GP CRL Gold Plated Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037MBL CRL Matte Black Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037PC0 CRL Polished Copper Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037PN CRL Polished Nickel Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037SB CRL Satin Brass Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037SC CRL Satin Chrome Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037SN CRL Satin Nickel Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037UBR CRL Ultra Brass Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037CH CRL Polished Chrome Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037BR CRL Polished Brass Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN0370RB CRL Oil Rubbed Bronze Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037ABC0 CRL Antique Brushed Copper Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037ABL CRL All Black Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037ABN CRL Antique Brushed Nickel Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037ABR CRL Antique Brass Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037ABRZ CRL Antique Bronze Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037AW CRL All White Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037BBRZ CRL Brushed Bronze Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037BC0 CRL Brushed Copper Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037BL CRL Black with Chrome Center Block Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037BN CRL Brushed Nickel Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037BSC CRL Brushed Satin Chrome Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037CBA CRL Chrome with Brass Accent Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037GM CRL Gun Metal Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037GP CRL Gold Plated Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037MBL CRL Matte Black Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037PC0 CRL Polished Copper Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037PN CRL Polished Nickel Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037SB CRL Satin Brass Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037SC CRL Satin Chrome Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037SN CRL Satin Nickel Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
GEN037UBR CRL Ultra Brass Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
Standard Reversible Pivot Pin: Each Geneva Hinge contains a Reversible Pivot Pin. One side of the Pin is marked 90 Degrees. The opposite side is marked 85 Degrees. Standard Geneva Hinges come with the 90 Degrees side activated. Offset Models come with the Pin pre-set to 85 Degrees (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.
Custom Pivot Pin: Custom Pivot Pins (Cat. No. GENP1N) are available to accommodate "off-angle" installations. If the 5 Degree Reversible Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degrees). If using the Custom Pivot Pin, contact our Technical Sales Shower Door Department. Your glass sizes and the aesthetics of the enclosure may be affected by the use of the Custom Pivot Pin.
Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).
Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Offers choice of Standard Model factory set at standard 0 degree closing position, or 5 degree Pre-Set Model for tighter closure into shower interior.
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree Out
Closing Type: Self-Centering when within 15 degree of Closed Position
Cut-Out Required Includes: Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.
Custom finishes are available on request. Contact Technical Sales Shower Door Division.
Custom Pivot Pin: Custom Pivot Pins (Cat. No. GENP1N) are available to accommodate "off-angle" installations. If the 5 Degree Reversible Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degrees). If using the Custom Pivot Pin, contact our Technical Sales Shower Door Department. Your glass sizes and the aesthetics of the enclosure may be affected by the use of the Custom Pivot Pin.
Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).
Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Offers choice of Standard Model factory set at standard 0 degree closing position, or 5 degree Pre-Set Model for tighter closure into shower interior.
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree Out
Closing Type: Self-Centering when within 15 degree of Closed Position
Cut-Out Required Includes: Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.
Custom finishes are available on request. Contact Technical Sales Shower Door Division.
