CRL Matte Black Geneva Series Wall Mount Offset Back Plate Hinge - GEN044MBL

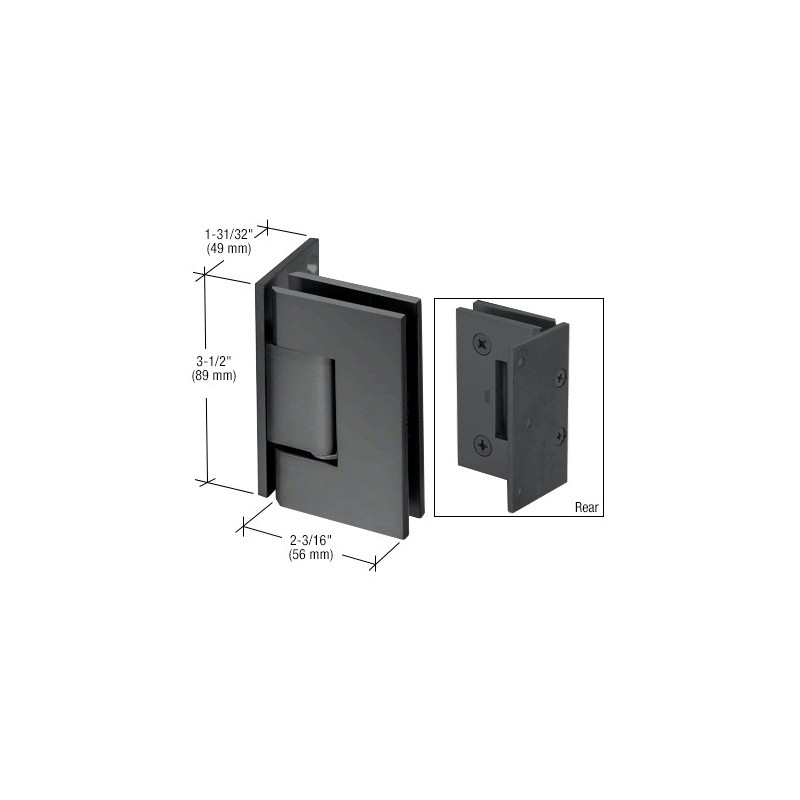

The CRL Geneva Series of professional Hinges is able to accommodate 5/16" (8 mm) to 1/2" (12 mm) glass. A variety of six styles gives design flexibility, including three different Wall Mount and three different Glass-to-Glass types. Geneva Hinges are self-centering and contain a Reversible 5 Degree Pivot Pin. In addition, Custom Pivot Pins are available to accommodate "off-angle" installations. Made of solid brass with all moving parts (pins and springs) in stainless steel.
Wall Mount Offset Back Plate Model (Factory Set for Standard Closing Position)
Self-Centering with Reversible 5 Degree Pivot Pin
Wall Mount Offset Back Plate (Factory Set for Standard Closing Position)
Use Monolithic Tempered Glass
Wall Mount Offset Back Plate Model (Factory Set for Standard Closing Position)
Self-Centering with Reversible 5 Degree Pivot Pin
Wall Mount Offset Back Plate (Factory Set for Standard Closing Position)
Use Monolithic Tempered Glass
Catalog Number: GEN044MBL
Also Available in These Catalogs:
Color: Matte Black
Width: 1-31/32" (49 mm)
Height: 3-1/2" (89 mm)
Depth: 2-3/16" (56 mm)
Ship Via: Can Ship UPS
Shipping Weight: 2 lb (907g)
Minimum Order: 1 Each
Also Available in These Catalogs:
Color: Matte Black
Width: 1-31/32" (49 mm)
Height: 3-1/2" (89 mm)
Depth: 2-3/16" (56 mm)
Ship Via: Can Ship UPS
Shipping Weight: 2 lb (907g)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
GEN044CH CRL Polished Chrome Geneva 044 Series Wall Mount Offset Back Plate Hinge
GEN044BR CRL Polished Brass Geneva 044 Series Wall Mount Offset Back Plate Hinge
GEN0440RB CRL Oil Rubbed Bronze Geneva 044 Series Wall Mount Offset Back Plate Hinge
GEN044ABC0 CRL Antique Brushed Copper Geneva 044 Series Wall Mount Offset Back Plate Hinge
GEN044ABL CRL All Black Geneva 044 Series Wall Mount Offset Back Plate Hinge
GEN044ABN CRL Antique Brushed Nickel Geneva 044 Series Wall Mount Offset Back Plate Hinge
GEN044ABR CRL Antique Brass Geneva 044 Series Wall Mount Offset Back Plate Hinge
GEN044ABRZ CRL Antique Bronze Geneva 044 Series Wall Mount Offset Back Plate Hinge
GEN044AW CRL All White Geneva 044 Series Wall Mount Offset Back Plate Hinge
GEN044BBRZ CRL Brushed Bronze Geneva 044 Series Wall Mount Offset Back Plate Hinge
GEN044BN CRL Brushed Nickel Geneva 044 Series Wall Mount Offset Back Plate Hinge
GEN044BSC CRL Brushed Satin Chrome Geneva 044 Series Wall Mount Offset Back Plate Hinge
GEN044GP CRL Gold Plated Geneva 044 Series Wall Mount Offset Back Plate Hinge
GEN044MBL CRL Matte Black Geneva Series Wall Mount Offset Back Plate Hinge
GEN044PN CRL Polished Nickel Geneva 044 Series Wall Mount Offset Back Plate Hinge
GEN044SB CRL Satin Brass Geneva 044 Series Wall Mount Offset Back Plate Hinge
GEN044SC CRL Satin Chrome Geneva 044 Series Wall Mount Offset Back Plate Hinge
GEN044SN CRL Satin Nickel Geneva 044 Series Wall Mount Offset Back Plate Hinge
GEN044UBR CRL Ultra Brass Geneva 044 Series Wall Mount Offset Back Plate Hinge
GEN044CH CRL Polished Chrome Geneva 044 Series Wall Mount Offset Back Plate Hinge
GEN044BR CRL Polished Brass Geneva 044 Series Wall Mount Offset Back Plate Hinge
GEN0440RB CRL Oil Rubbed Bronze Geneva 044 Series Wall Mount Offset Back Plate Hinge
GEN044ABC0 CRL Antique Brushed Copper Geneva 044 Series Wall Mount Offset Back Plate Hinge
GEN044ABL CRL All Black Geneva 044 Series Wall Mount Offset Back Plate Hinge
GEN044ABN CRL Antique Brushed Nickel Geneva 044 Series Wall Mount Offset Back Plate Hinge
GEN044ABR CRL Antique Brass Geneva 044 Series Wall Mount Offset Back Plate Hinge
GEN044ABRZ CRL Antique Bronze Geneva 044 Series Wall Mount Offset Back Plate Hinge
GEN044AW CRL All White Geneva 044 Series Wall Mount Offset Back Plate Hinge
GEN044BBRZ CRL Brushed Bronze Geneva 044 Series Wall Mount Offset Back Plate Hinge
GEN044BN CRL Brushed Nickel Geneva 044 Series Wall Mount Offset Back Plate Hinge
GEN044BSC CRL Brushed Satin Chrome Geneva 044 Series Wall Mount Offset Back Plate Hinge
GEN044GP CRL Gold Plated Geneva 044 Series Wall Mount Offset Back Plate Hinge
GEN044MBL CRL Matte Black Geneva Series Wall Mount Offset Back Plate Hinge
GEN044PN CRL Polished Nickel Geneva 044 Series Wall Mount Offset Back Plate Hinge
GEN044SB CRL Satin Brass Geneva 044 Series Wall Mount Offset Back Plate Hinge
GEN044SC CRL Satin Chrome Geneva 044 Series Wall Mount Offset Back Plate Hinge
GEN044SN CRL Satin Nickel Geneva 044 Series Wall Mount Offset Back Plate Hinge
GEN044UBR CRL Ultra Brass Geneva 044 Series Wall Mount Offset Back Plate Hinge
Each Geneva Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard Geneva Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 Degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.
Custom Pivot Pin: Custom Pivot Pins (Cat. No. GENP1N) are available to accommodate "off-angle" installations. If the 5 Degree Reversible Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degrees). If using the Custom Pivot Pin, contact our Technical Sales Shower Door Department. Your glass sizes and the aesthetics of the enclosure may be affected by the use of the Custom Pivot Pin.
Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).
Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Offers choice of Standard Model factory set at standard 0 degree closing position, or 5 degree Pre-Set Model for tighter closure into shower interior.
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree Out
Closing Type: Self-Centering when within 15 Degree of Closed Position
Cut-Out Required Includes: Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.
Custom finishes are available on request. Contact Technical Sales Shower Door Division.
Custom Pivot Pin: Custom Pivot Pins (Cat. No. GENP1N) are available to accommodate "off-angle" installations. If the 5 Degree Reversible Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degrees). If using the Custom Pivot Pin, contact our Technical Sales Shower Door Department. Your glass sizes and the aesthetics of the enclosure may be affected by the use of the Custom Pivot Pin.
Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).
Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Offers choice of Standard Model factory set at standard 0 degree closing position, or 5 degree Pre-Set Model for tighter closure into shower interior.
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree Out
Closing Type: Self-Centering when within 15 Degree of Closed Position
Cut-Out Required Includes: Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.
Custom finishes are available on request. Contact Technical Sales Shower Door Division.
