CRL Polished Stainless Glass Rail Standoff Base and Cap - 1" Projection - RS0B21PS

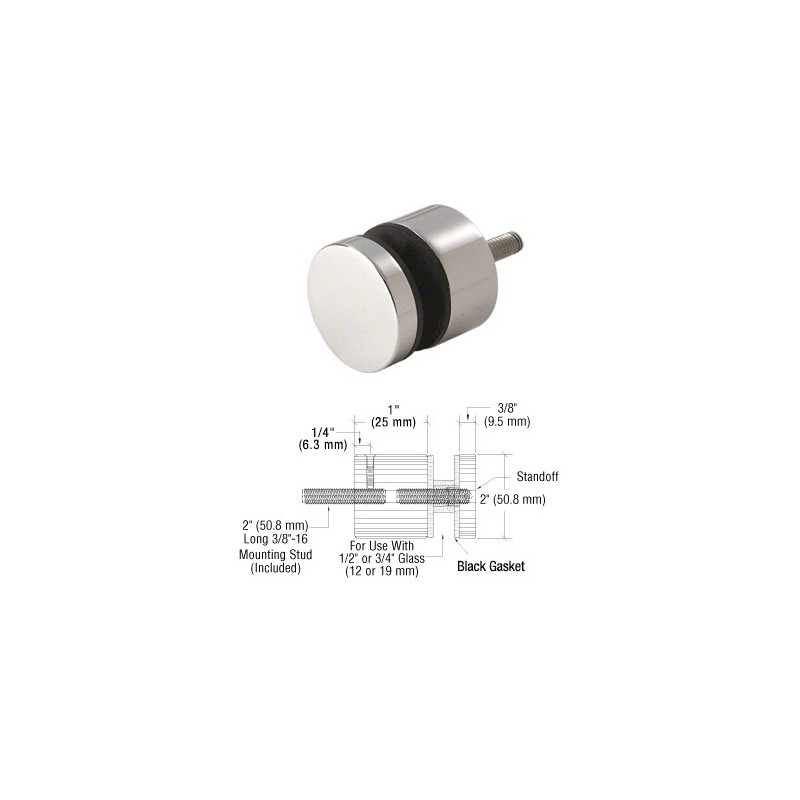

The heavy-duty CRL Glass Rail Standoff Base and Cap works with hand or guard railings. Fabricated with Alloy 316 grade stainless steel in brushed or polished finishes, the standoff fitting is 2" (51 mm) in diameter with a 1" (25.4 mm) base. It comes with a 3/8"-16 x 2" Allen stud for mounting to steel, along with necessary gaskets and grommet. Use our Cat. No. SSW12 Spanner Wrench to tighten the cap.
Compact Design with Base, Cap, and Mounting Stud
For Use with 1/2" and 3/4" (12 and 19 mm) Monolithic Tempered Glass or 9/16" and 27/32" (13.52 and 21.52 mm) Laminated Tempered Glass Using Kuraray SentryGlas® Interlayer
High Grade Alloy 316 Stainless Steel Standard
For Mounting to Steel, Concrete, or Wood Substrate
Compact Design with Base, Cap, and Mounting Stud
For Use with 1/2" and 3/4" (12 and 19 mm) Monolithic Tempered Glass or 9/16" and 27/32" (13.52 and 21.52 mm) Laminated Tempered Glass Using Kuraray SentryGlas® Interlayer
High Grade Alloy 316 Stainless Steel Standard
For Mounting to Steel, Concrete, or Wood Substrate
Catalog Number: RS0B21PS
Also Available in These Catalogs:
HR18 Architectural Railing Systems 2018, PAGE 269B
Color: Polished Stainless
Glass Fabrication: One 3/4" (19 mm) Hole Per Fitting
Diameter: 2" (51 mm)
Length: 1" (25.4 mm)
Ship Via: Can Ship UPS
Shipping Weight: 2 lb (907g)
Minimum Order: 1 Each
Also Available in These Catalogs:
HR18 Architectural Railing Systems 2018, PAGE 269B
Color: Polished Stainless
Glass Fabrication: One 3/4" (19 mm) Hole Per Fitting
Diameter: 2" (51 mm)
Length: 1" (25.4 mm)
Ship Via: Can Ship UPS
Shipping Weight: 2 lb (907g)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
RS0B2134BS CRL Brushed Stainless Glass Rail Standoff Base and Cap - 1-3/4" Projection
RS0B2134MBL CRL Matte Black Glass Rail Standoff Base and Cap - 1-3/4" Projection
RS0B2134PS CRL Polished Stainless Glass Rail Standoff Base and Cap - 1-3/4" Projection
RS0B21BS CRL Brushed Stainless Glass Rail Standoff Base and Cap - 1" Projection
RS0B21PS CRL Polished Stainless Glass Rail Standoff Base and Cap - 1" Projection
RS0B2134BS CRL Brushed Stainless Glass Rail Standoff Base and Cap - 1-3/4" Projection
RS0B2134MBL CRL Matte Black Glass Rail Standoff Base and Cap - 1-3/4" Projection
RS0B2134PS CRL Polished Stainless Glass Rail Standoff Base and Cap - 1-3/4" Projection
RS0B21BS CRL Brushed Stainless Glass Rail Standoff Base and Cap - 1" Projection
RS0B21PS CRL Polished Stainless Glass Rail Standoff Base and Cap - 1" Projection
NOTE: Bracket spacing and maximum glass panel widths vary depending on use and mounting conditions.
