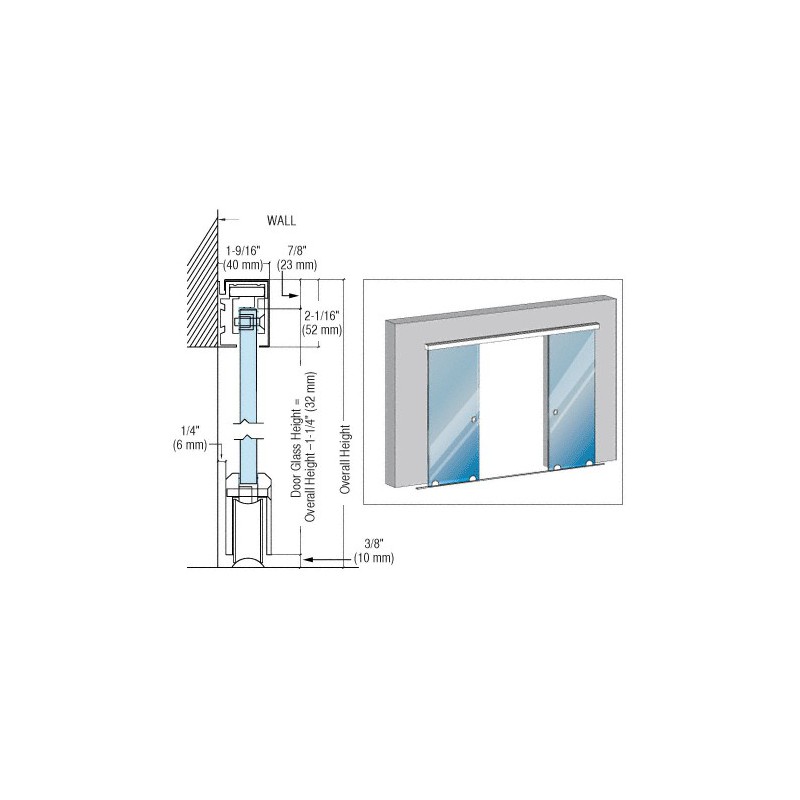

CRL Brushed Stainless GSDH2 Series Bi-Parting Bottom Rolling Door Installation Assembly - 118" - GSDH2BS
There are two configurations of GSDH Series Kits for glass doors. Both come with everything you need (except the tempered glass) to complete the installation, including Top and Bottom Track, Top Guides, Top Guide Roller Stops, End Covers, and the Bottom Rollers. Kits are available in a Brushed or Polished Stainless Steel finishes for both single and bi-parting rolling doors.
118" (3 m) Top and Bottom Tracks
Kits Contain All Necessary Hardware to Complete the Installation
For Use with 5/16" to 1/2" (8 to 12 mm) Tempered Glass
One Pair of Rollers Can Accommodate Doors Weighing Up to 286 Lbs. (130 kg)
Use Monolithic Tempered Glass
Configurations for a Single Rolling Door or Bi-Parting Rolling Doors
118" (3 m) Top and Bottom Tracks
Kits Contain All Necessary Hardware to Complete the Installation
For Use with 5/16" to 1/2" (8 to 12 mm) Tempered Glass
One Pair of Rollers Can Accommodate Doors Weighing Up to 286 Lbs. (130 kg)
Use Monolithic Tempered Glass
Configurations for a Single Rolling Door or Bi-Parting Rolling Doors
Catalog Number: GSDH2BS
Also Available in These Catalogs:
USAL14 U.S. Aluminum Architectural Design Manual, PAGE 27G1
USAL15 U.S. Aluminum Curtain Wall Catalog, PAGE 27P1
CRL63A Architectural Hardware Master, PAGE 328H
CRL14D Door and Entrance Catalog, PAGE 384D
AH18 Architectural Hardware Catalog 2018, PAGE 430Z
CRL53R Glass & Glazing Catalog, PAGE 526G
CRL93A Architectural Hardware, PAGE CH275
Color: Brushed Stainless
Length: 118" (3 m)
Max Bi-Part Panel Width: 30" (762 mm)
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Ship Via: No UPS - Common Carrier Only
Minimum Order: 1 Each
Also Available in These Catalogs:
USAL14 U.S. Aluminum Architectural Design Manual, PAGE 27G1
USAL15 U.S. Aluminum Curtain Wall Catalog, PAGE 27P1
CRL63A Architectural Hardware Master, PAGE 328H
CRL14D Door and Entrance Catalog, PAGE 384D
AH18 Architectural Hardware Catalog 2018, PAGE 430Z
CRL53R Glass & Glazing Catalog, PAGE 526G
CRL93A Architectural Hardware, PAGE CH275
Color: Brushed Stainless
Length: 118" (3 m)
Max Bi-Part Panel Width: 30" (762 mm)
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Ship Via: No UPS - Common Carrier Only
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
GSDH2BS CRL Brushed Stainless GSDH2 Series Bi-Parting Bottom Rolling Door Installation Assembly - 118"
GSDH2PS CRL Polished Stainless GSDH2 Series Bi-Parting Bottom Rolling Door Installation Assembly - 118"
GSDH2BS CRL Brushed Stainless GSDH2 Series Bi-Parting Bottom Rolling Door Installation Assembly - 118"
GSDH2PS CRL Polished Stainless GSDH2 Series Bi-Parting Bottom Rolling Door Installation Assembly - 118"
For more information on this versatile and easy-to-install system, contact CRL Technical Sales Department.
NOTE: Laminated glass should not be used with the GSDH System.
GLASS FABRICATION REQUIRED: Four holes and two notches per panel. Glass templates included in kits.
NOTE: Laminated glass should not be used with the GSDH System.
GLASS FABRICATION REQUIRED: Four holes and two notches per panel. Glass templates included in kits.
