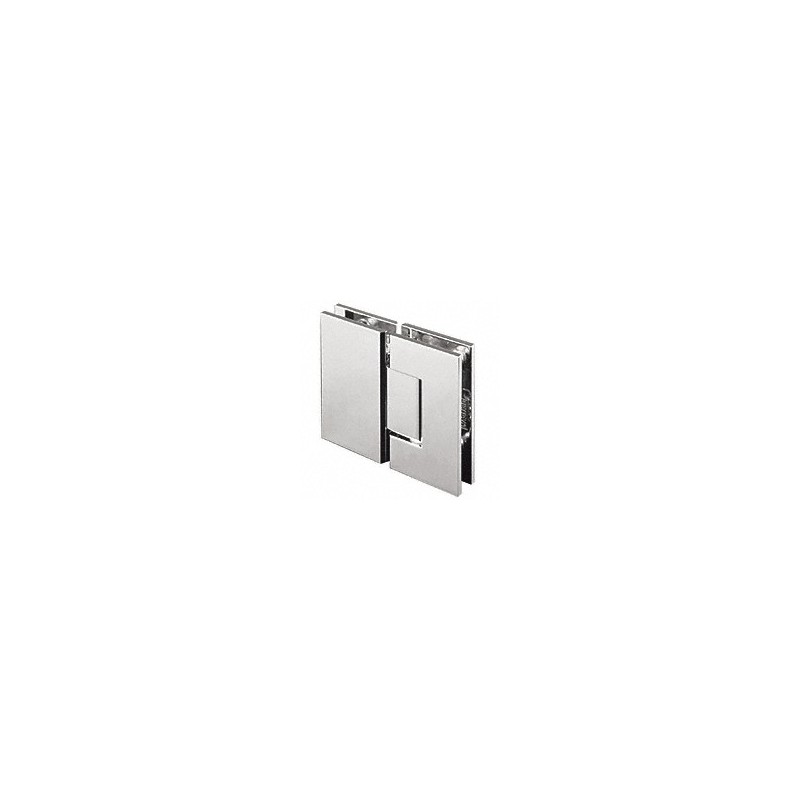

CRL Chrome International Series 180° Glass-to-Glass Square Corner Hinge - SGM1CH
Our CRL International Series Hinge blends value with performance. Offered in both traditional square cornered style, and also with modern beveled edges, the International Series Hinge provides design flexibility. Wall Mount with Full Back Plate and 180 Degree Glass-to-Glass Models cover the majority of popular installation configurations. The solid brass International Series Hinge will accommodate 5/16" (8 mm), 3/8" (10 mm), and 1/2" (12 mm) thick tempered glass. They are stocked in popular polished chrome and brushed nickel finishes.
Reliable Performance at a Value Price
180º Glass-to-Glass
Square Corners
Reliable Performance at a Value Price
180º Glass-to-Glass
Square Corners
Catalog Number: SGM1CH
Also Available in These Catalogs:
Color: Chrome
Max Weight 2 Hinges: 80 lbs. (36 kg) - Width 28" (711 mm)
Max Weight 3 Hinges: 120 lbs. (54 kg) - Width 32" (813 mm)
Ship Via: UPS Oversize Rate
Minimum Order: 1 Each
Also Available in These Catalogs:
Color: Chrome
Max Weight 2 Hinges: 80 lbs. (36 kg) - Width 28" (711 mm)
Max Weight 3 Hinges: 120 lbs. (54 kg) - Width 32" (813 mm)
Ship Via: UPS Oversize Rate
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
SGM1CH CRL Chrome International Series 180 Glass-to-Glass Square Corner Hinge
SGM1CH CRL Chrome International Series 180 Glass-to-Glass Square Corner Hinge
Using two hinges with 5/16" (8 mm), 3/8" (10 mm), and 1/2" (12 mm) glass the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).
Using three hinges with 5/16" (8 mm), 3/8" (10 mm), and 1/2" (12 mm) glass the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).
SPECIFICATIONS:
Glass Thickness Range: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out
Closing Type: Self-Centering when within 10 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.
Using three hinges with 5/16" (8 mm), 3/8" (10 mm), and 1/2" (12 mm) glass the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).
SPECIFICATIONS:
Glass Thickness Range: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out
Closing Type: Self-Centering when within 10 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting Glass Experts customer service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
