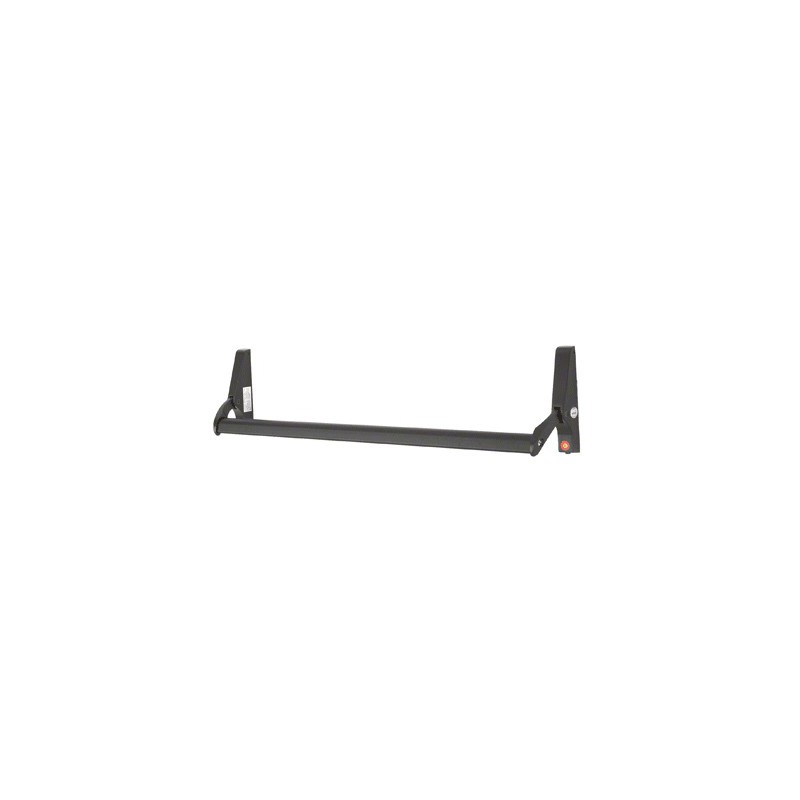

CRL Aluminum 48" Jackson® 10 Series Non-Handed Concealed Vertical Rod Panic Exit Device - 31108547628
Jackson® Exit Devices are universally recognized as the standard for aluminum storefront hardware. This crossbar designed with simplicity in mind, yet it will provide many years of smooth, reliable operation. Available in both a Rim and Concealed Vertical Rod version this device is suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The 48" (1.22 m) long contoured crossbar is field sizeable, and the device is shipped to fit up to 84" (2.13 m) tall door. Extensions for taller doors are available. The 10 Series Exit Device is the perfect solution when considering a reliable maintenance free means to satisfy life safety requirements.
Designed for Use with 1-3/4" (44.5 mm) Narrow, Medium and Wide Stile Aluminum, Wood or Hollow Metal Doors
Concealed Fastening for Added Security
Designed for Use with 1-3/4" (44.5 mm) Narrow, Medium and Wide Stile Aluminum, Wood or Hollow Metal Doors
Concealed Fastening for Added Security
Catalog Number: 31108547628
Also Available in These Catalogs:
USAL14 U.S. Aluminum Architectural Design Manual, PAGE 03A3
CRL63A Architectural Hardware Master, PAGE 210H
USAL15 U.S. Aluminum Curtain Wall Catalog, PAGE 23H9
CRL14D Door and Entrance Catalog, PAGE 408D
CRL83R Door and Window Replacement, PAGE 734W
CRL93A Architectural Hardware, PAGE CH076
DC14 Door Controls Catalog 2014, PAGE D456
Color: Aluminum
Type: Concealed Vertical Rod
Handing: Non-Handed
Ship Via: UPS Oversize Rate
Shipping Weight: 6 lb (2.72kg)
Minimum Order: 1 Each
Also Available in These Catalogs:
USAL14 U.S. Aluminum Architectural Design Manual, PAGE 03A3
CRL63A Architectural Hardware Master, PAGE 210H
USAL15 U.S. Aluminum Curtain Wall Catalog, PAGE 23H9
CRL14D Door and Entrance Catalog, PAGE 408D
CRL83R Door and Window Replacement, PAGE 734W
CRL93A Architectural Hardware, PAGE CH076
DC14 Door Controls Catalog 2014, PAGE D456
Color: Aluminum
Type: Concealed Vertical Rod
Handing: Non-Handed
Ship Via: UPS Oversize Rate
Shipping Weight: 6 lb (2.72kg)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
31108547313 CRL Dark Bronze 48" Jackson 10 Series Non-Handed Concealed Vertical Rod Panic Exit Device
31108547628 CRL Aluminum 48" Jackson 10 Series Non-Handed Concealed Vertical Rod Panic Exit Device
31108548628 CRL Aluminum 48" Jackson 10 Series Non-Handed Concealed Vertical Rod Panic Exit Device with 12" Extension for 96" Door
31108547313 CRL Dark Bronze 48" Jackson 10 Series Non-Handed Concealed Vertical Rod Panic Exit Device
31108547628 CRL Aluminum 48" Jackson 10 Series Non-Handed Concealed Vertical Rod Panic Exit Device
31108548628 CRL Aluminum 48" Jackson 10 Series Non-Handed Concealed Vertical Rod Panic Exit Device with 12" Extension for 96" Door
This device is supplied standard with a 48" crossbar for use with doors up to 48" wide. The customer can cut the bar to exact length needed. For Locking Outside Entry: Use 8500LV02313 Locking Lever Trim or Cylinder Only: Use DL2170 OR DRA50 Type Mortise Cylinder with MS Cam - Will Require use of 3089610958313 Cylinder Mounting Pad. Panic Ships Standard for use with 7/0 (84") doors. Taller doors require use of Extension No. 301347 Top Rod Extender in 12" increments.
Added features include: Nylon bushings at arm pins; contoured cross bar; and adjustable strikes. The body and arm are available in high tensile strength aluminum with an extruded aluminum cross bar. Internal parts are made of a special plated alloy.
The standard 48" (1.22 m) width will fit most doors. For narrower doors, simply cut the bar to fit. Baked acrylic coated satin finish aluminum or standard bronze hardware finishes are available.
If you would like to add a keyed cylinder order a DL911SCKDA or DL911SCKAA Rim Cylinder and two 1224X112FMS longer screws for installation. A Cylinder Mounting pad is not required. Doors requiring keyed entrance, must use a standard Mortise Cylinder with a 'MS' type cam DL2170 or DRA50 with a #86 Mortise Cylinder Mounting Pad. Device is Non-handed and Actuator Link can be placed on either side.
For additional information, contact CRL Technical Sales.
Added features include: Nylon bushings at arm pins; contoured cross bar; and adjustable strikes. The body and arm are available in high tensile strength aluminum with an extruded aluminum cross bar. Internal parts are made of a special plated alloy.
The standard 48" (1.22 m) width will fit most doors. For narrower doors, simply cut the bar to fit. Baked acrylic coated satin finish aluminum or standard bronze hardware finishes are available.
If you would like to add a keyed cylinder order a DL911SCKDA or DL911SCKAA Rim Cylinder and two 1224X112FMS longer screws for installation. A Cylinder Mounting pad is not required. Doors requiring keyed entrance, must use a standard Mortise Cylinder with a 'MS' type cam DL2170 or DRA50 with a #86 Mortise Cylinder Mounting Pad. Device is Non-handed and Actuator Link can be placed on either side.
For additional information, contact CRL Technical Sales.
