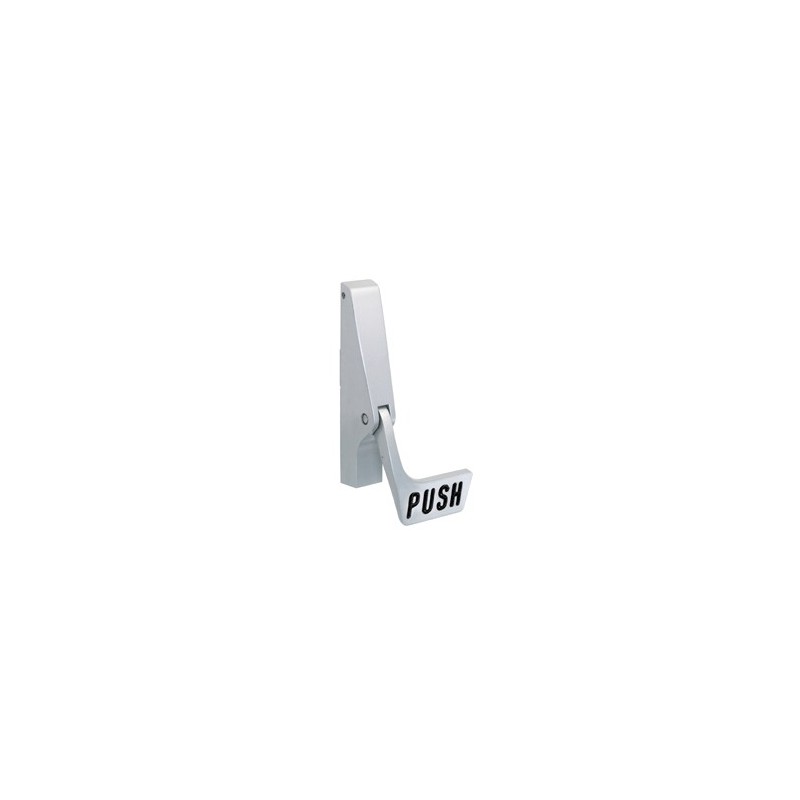

CRL Satin Aluminum Jackson® 10 Series Left-Hand Reverse Bevel Paddle Concealed Vertical Rod Exit Device - 311085PL7628
Catalog Number: 311085PL7628
Also Available in These Catalogs:
CRL83R Door and Window Replacement, PAGE 734W
CRL93A Architectural Hardware, PAGE CH076
DC14 Door Controls Catalog 2014, PAGE D456
Ship Via: Can Ship UPS
Shipping Weight: 3 lb (1.36kg)
Minimum Order: 1 Each
Also Available in These Catalogs:
CRL83R Door and Window Replacement, PAGE 734W
CRL93A Architectural Hardware, PAGE CH076
DC14 Door Controls Catalog 2014, PAGE D456
Ship Via: Can Ship UPS
Shipping Weight: 3 lb (1.36kg)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION
311085PL7313 CRL Dark Bronze Jackson 10 Series Left-Hand Reverse Bevel Paddle Concealed Vertical Rod Exit Device
311085PL7628 CRL Satin Aluminum Jackson 10 Series Left-Hand Reverse Bevel Paddle Concealed Vertical Rod Exit Device
311085PR7313 CRL Dark Bronze Jackson 10 Series Right Hand Reverse Bevel Paddle Concealed Vertical Rod Exit Device
311085PR7628 CRL Satin Aluminum Jackson 10 Series Right Hand Reverse Bevel Paddle Concealed Vertical Rod Exit Device
311085PL7313 CRL Dark Bronze Jackson 10 Series Left-Hand Reverse Bevel Paddle Concealed Vertical Rod Exit Device
311085PL7628 CRL Satin Aluminum Jackson 10 Series Left-Hand Reverse Bevel Paddle Concealed Vertical Rod Exit Device
311085PR7313 CRL Dark Bronze Jackson 10 Series Right Hand Reverse Bevel Paddle Concealed Vertical Rod Exit Device
311085PR7628 CRL Satin Aluminum Jackson 10 Series Right Hand Reverse Bevel Paddle Concealed Vertical Rod Exit Device
B>SPECIFICATIONS:
Contoured Field Sizeable 48" (1.22 m) Long Crossbar
Dual Dogging Feature By Outside Cylinder - By Dogging Pins on Panic Housing
Wear Points Insulated by Nylon Sleeves and Rollers
1085 Concealed Vertical Rod Device
Standard Height 84" (2.13 m)
Requires Mortise Cylinder and No. 30821J
Mounting Pad for Keyed Entry
MATERIALS:
Body and Arms: High Tensile Strength Aluminum
Mechanical Components: Stainless and Hardened Plated Steel
Latch and Strikes: Sintered Steel
Contoured Field Sizeable 48" (1.22 m) Long Crossbar
Dual Dogging Feature By Outside Cylinder - By Dogging Pins on Panic Housing
Wear Points Insulated by Nylon Sleeves and Rollers
1085 Concealed Vertical Rod Device
Standard Height 84" (2.13 m)
Requires Mortise Cylinder and No. 30821J
Mounting Pad for Keyed Entry
MATERIALS:
Body and Arms: High Tensile Strength Aluminum
Mechanical Components: Stainless and Hardened Plated Steel
Latch and Strikes: Sintered Steel
