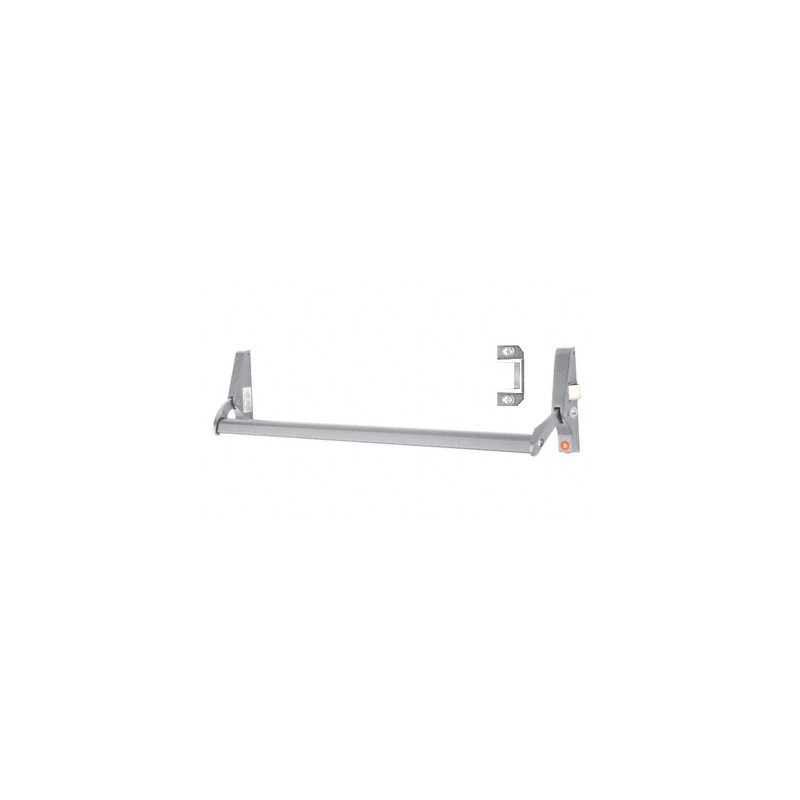

CRL Satin Aluminum 48" Jackson® 10 Series Right Hand Reverse Bevel Crossbar Rim Panic Exit Device - 311095RC4628
CRL Jackson® Exit Devices are universally recognized as the standard for aluminum storefront hardware. These Exit Devices are designed to withstand wear and tear, yet remain aesthetically pleasing for years to come. Each part is manufactured from the highest quality materials, which are hand fitted and adjusted for a smooth, whisper quiet operation. CRL Jackson® Exit Devices are suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors.
Designed for Use with 1-3/4" (44 mm) Narrow, Medium, and Wide Stile Aluminum, Wood, or Hollow Metal Doors
Available with Crossbar or Engraved "Push" Paddle Operation on Active Side
Concealed Fastening for Added Security
Designed for Use with 1-3/4" (44 mm) Narrow, Medium, and Wide Stile Aluminum, Wood, or Hollow Metal Doors
Available with Crossbar or Engraved "Push" Paddle Operation on Active Side
Concealed Fastening for Added Security
Catalog Number: 311095RC4628
Also Available in These Catalogs:
USAL14 U.S. Aluminum Architectural Design Manual, PAGE 03A3
CRL63A Architectural Hardware Master, PAGE 210H
USAL15 U.S. Aluminum Curtain Wall Catalog, PAGE 23H9
CRL14D Door and Entrance Catalog, PAGE 408D
CRL83R Door and Window Replacement, PAGE 734W
CRL93A Architectural Hardware, PAGE CH076
DC14 Door Controls Catalog 2014, PAGE D456
Type: Rim - C-Strike
Handing: Right Hand Reverse Bevel
Ship Via: UPS Oversize Rate
Shipping Weight: 4 lb (1.81kg)
Minimum Order: 1 Each
Also Available in These Catalogs:
USAL14 U.S. Aluminum Architectural Design Manual, PAGE 03A3
CRL63A Architectural Hardware Master, PAGE 210H
USAL15 U.S. Aluminum Curtain Wall Catalog, PAGE 23H9
CRL14D Door and Entrance Catalog, PAGE 408D
CRL83R Door and Window Replacement, PAGE 734W
CRL93A Architectural Hardware, PAGE CH076
DC14 Door Controls Catalog 2014, PAGE D456
Type: Rim - C-Strike
Handing: Right Hand Reverse Bevel
Ship Via: UPS Oversize Rate
Shipping Weight: 4 lb (1.81kg)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
311095LC4628 CRL Satin Aluminum 48" Jackson 10 Series Left Hand Reverse Bevel Crossbar Rim Panic Exit Device
311095RC4628 CRL Satin Aluminum 48" Jackson 10 Series Right Hand Reverse Bevel Crossbar Rim Panic Exit Device
311095LC4313 CRL Dark Bronze 48" Jackson 10 Series Left Hand Reverse Bevel Crossbar Rim Panic Exit Device
311095RC4313 CRL Dark Bronze 48" Jackson 10 Series Right Hand Reverse Bevel Crossbar Rim Panic Exit Device
30733PKG628 CRL Jackson Aluminum Finish Crossbar Assembly Package for Model 1085 and 1095 Exit Devices
311095LC4628 CRL Satin Aluminum 48" Jackson 10 Series Left Hand Reverse Bevel Crossbar Rim Panic Exit Device
311095RC4628 CRL Satin Aluminum 48" Jackson 10 Series Right Hand Reverse Bevel Crossbar Rim Panic Exit Device
311095LC4313 CRL Dark Bronze 48" Jackson 10 Series Left Hand Reverse Bevel Crossbar Rim Panic Exit Device
311095RC4313 CRL Dark Bronze 48" Jackson 10 Series Right Hand Reverse Bevel Crossbar Rim Panic Exit Device
30733PKG628 CRL Jackson Aluminum Finish Crossbar Assembly Package for Model 1085 and 1095 Exit Devices
SPECIFICATIONS:
Contoured Field Sizeable 48" (1.22 m) Long Crossbar
Dual Dogging Feature By Outside Cylinder - By Dogging Pins on Panic Housing
Wear Points Insulated by Nylon Sleeves and Rollers
1095 Rim Device
Requires Rim Cylinder for Keyed Entry
Cylinder Mounting Pad Not Required
MATERIALS:
Body and Arms: High Tensile Strength Aluminum
Mechanical Components: Stainless and Hardened Plated Steel
Latch and Strikes: Sintered Steel
Contoured Field Sizeable 48" (1.22 m) Long Crossbar
Dual Dogging Feature By Outside Cylinder - By Dogging Pins on Panic Housing
Wear Points Insulated by Nylon Sleeves and Rollers
1095 Rim Device
Requires Rim Cylinder for Keyed Entry
Cylinder Mounting Pad Not Required
MATERIALS:
Body and Arms: High Tensile Strength Aluminum
Mechanical Components: Stainless and Hardened Plated Steel
Latch and Strikes: Sintered Steel
