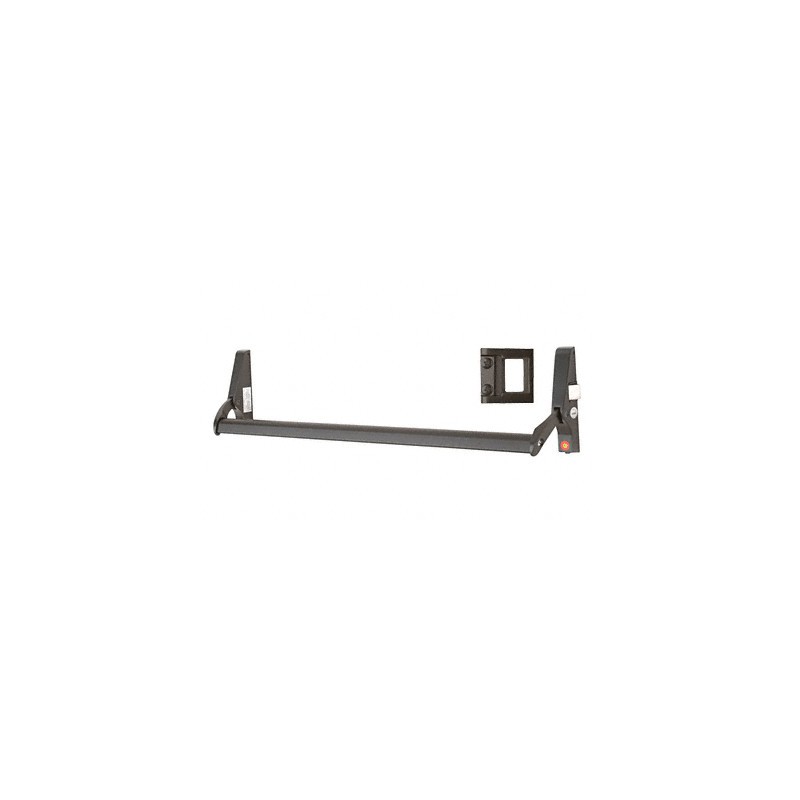

CRL Dark Bronze 48" Jackson® 10 Series Right Hand Reverse Bevel Crossbar Rim Panic Exit Device, 'S' Type Strike - 311095RS4313
CRL Jackson® Exit Devices are universally recognized as the standard for aluminum storefront hardware. This crossbar is designed with simplicity in mind, yet it will provide many years of smooth, reliable operation. Available in both a Rim and Concealed Vertical Rod version this device is suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The 48" (1.22 m) long contoured crossbar is field sizeable, and the device is shipped to fit up to 84" (2.13 m) tall door. Extensions for taller doors are available. The 10 Series Exit Device is the perfect solution when considering a reliable maintenance free means to satisfy life safety requirements.
Concealed Fastening for Added Security
Designed for Use with 1-3/4" (44.5 mm) Narrow, Medium, and Wide Stile Aluminum, Wood or Hollow Metal Doors
Available with Crossbar or Engraved "Push" Paddle Operation on Active Side
Concealed Fastening for Added Security
Designed for Use with 1-3/4" (44.5 mm) Narrow, Medium, and Wide Stile Aluminum, Wood or Hollow Metal Doors
Available with Crossbar or Engraved "Push" Paddle Operation on Active Side
Catalog Number: 311095RS4313
Also Available in These Catalogs:
OP15 Office Partitions, PAGE 146X
CRL83R Door and Window Replacement, PAGE 734W
CRL93A Architectural Hardware, PAGE CH076
DC14 Door Controls Catalog 2014, PAGE D456
Size: 48"
Type: Rim - 'S' Strike
Handing: Right Hand-Reverse Bevel
Ship Via: UPS Oversize Rate
Shipping Weight: 6 lb (2.72kg)
Minimum Order: 1 Each
Also Available in These Catalogs:
OP15 Office Partitions, PAGE 146X
CRL83R Door and Window Replacement, PAGE 734W
CRL93A Architectural Hardware, PAGE CH076
DC14 Door Controls Catalog 2014, PAGE D456
Size: 48"
Type: Rim - 'S' Strike
Handing: Right Hand-Reverse Bevel
Ship Via: UPS Oversize Rate
Shipping Weight: 6 lb (2.72kg)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION
311095LS4628 CRL Satin Aluminum 48" Jackson 10 Series Left Hand Reverse Bevel Crossbar Rim Panic Exit Device, 'S' Type Strike
311095RS4628 CRL Satin Aluminum 48" Jackson 10 Series Right Hand Reverse Bevel Crossbar Rim Panic Exit Device, 'S' Type Strike
311095LS4313 CRL Dark Bronze 48" Jackson 10 Series Left Hand Reverse Bevel Crossbar Rim Panic Exit Device, 'S' Type Strike
311095RS4313 CRL Dark Bronze 48" Jackson 10 Series Right Hand Reverse Bevel Crossbar Rim Panic Exit Device, 'S' Type Strike
311095LS4628 CRL Satin Aluminum 48" Jackson 10 Series Left Hand Reverse Bevel Crossbar Rim Panic Exit Device, 'S' Type Strike
311095RS4628 CRL Satin Aluminum 48" Jackson 10 Series Right Hand Reverse Bevel Crossbar Rim Panic Exit Device, 'S' Type Strike
311095LS4313 CRL Dark Bronze 48" Jackson 10 Series Left Hand Reverse Bevel Crossbar Rim Panic Exit Device, 'S' Type Strike
311095RS4313 CRL Dark Bronze 48" Jackson 10 Series Right Hand Reverse Bevel Crossbar Rim Panic Exit Device, 'S' Type Strike
SPECIFICATIONS:
Contoured Field Sizeable 48" (1.22 m) Long Crossbar
Dual Dogging Feature By Outside Cylinder - By Dogging Pins on Panic Housing
Wear Points Insulated by Nylon Sleeves and Rollers
1095 Rim Device
Requires Rim Cylinder for Keyed Entry
Cylinder Mounting Pad Not Required
MATERIALS:
Body and Arms: High Tensile Strength Aluminum
Mechanical Components: Stainless and Hardened Plated Steel
Latch and Strikes: Sintered Steel
Contoured Field Sizeable 48" (1.22 m) Long Crossbar
Dual Dogging Feature By Outside Cylinder - By Dogging Pins on Panic Housing
Wear Points Insulated by Nylon Sleeves and Rollers
1095 Rim Device
Requires Rim Cylinder for Keyed Entry
Cylinder Mounting Pad Not Required
MATERIALS:
Body and Arms: High Tensile Strength Aluminum
Mechanical Components: Stainless and Hardened Plated Steel
Latch and Strikes: Sintered Steel
