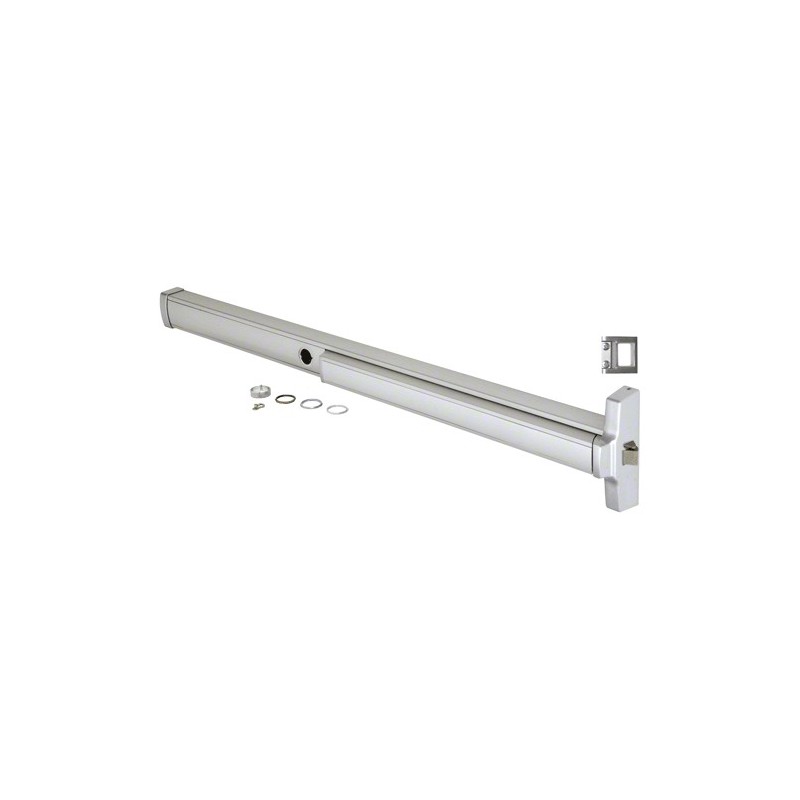

CRL 4' Jackson® Model 2095 Cylinder Dogging Grade 1 Rim Latch Panic Exit Device Right Hand Reverse Bevel "S" Strike Fits 32" to 48" Wide Door Aluminum Finish - 312095CRS4628

CRL Jackson® Model 2095 Rim Latch Panic Devices are UL Listed Certified ANSI 156.3 Grade 1, and manufactured in the Jackson® tradition of high quality and durability. Suitable for use with narrow, medium and wide stile aluminum doors, as well as wood and hollow metal doors, these devices are handed - not reversible, and feature concealed easy-to-use push button dogging, a 3/4" (19 mm) throw deadlocking latch bolt, "Soft Touch" smooth quiet action push pad, and quick and easy installation. May be ordered with optional Cylinder Dogging which uses a 1-1/8" Mortise Cylinder such as DC7185SCKASC. Available in Dark Bronze and Satin Aluminum anodized finish, this device comes standard with Type 'S' Strike #302436xxx, and may be ordered with optional Type "C" Strike #302501xxx. Keyed entry may be provided by ordering and installing a standard Rim Cylinder such as DL911SCKDA, or a Jackson® Outside Lever Trim Model 9500LV using a 1" Mortise Cylinder (sold separately). For wood door application order optional Wood Door Mounting Kit #302521. For double doors, use with Jackson® Mullion 3089620958313.
With Optional Cylinder Dogging and 'S' Strike
3/4" (19 mm) Throw Deadlocking Rim Latchbolt
Use with Narrow, Medium and Wide Stile Aluminum Doors, as Well as Wood and Hollow Metal Doors
UL Listed - Certified ANSI 156.3 Grade 1 Device
