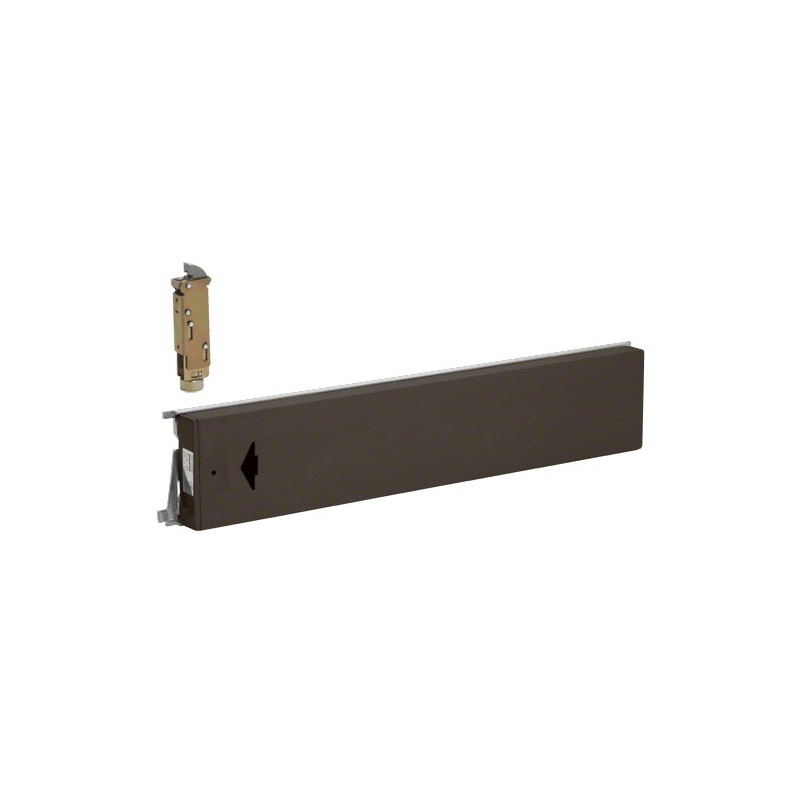

CRL Jackson® Model 3185 Mid-Panel Concealed Vertical Rod Exit Device With Top Latch Arrow Engraved on Push Pad Left Hand Reverse Bevel Dark Bronze Finish - 313185BL7313
CRL Jackson® 3100 Series Mid-Panel Exit Devices are designed as a non-protruding push-pad exit device providing maximum clearance while maintaining an aesthetically pleasing look. Developed in the Jackson® tradition of high quality and durability, this exit device is suitable for use with narrow, medium and wide stile aluminum doors. These devices are handed - not reversible, and provide "dual dogging" allowing the device to be dogged open by either the outside cylinder or by the standard hex key dogging feature. An Installation Mid-Panel Kit is available (sold separately). For doors over 7' tall use 12" Top Rod Extender #301347 or 24" Top Rod Extender #301348. Cylinder mounting pad such as 30821B313 required for installation of a 1" mortise key cylinder such as DL2170SCKDDU.
Suitable for Use with Narrow, Medium, and Wide Stile Doors
Non-Protruding Push Pad
Concealed Vertical Rods
Top Latch and Top Bolt Models Available
Satin Aluminum and Dark Bronze Finishes
Suitable for Use with Narrow, Medium, and Wide Stile Doors
Non-Protruding Push Pad
Concealed Vertical Rods
Top Latch and Top Bolt Models Available
Satin Aluminum and Dark Bronze Finishes
Catalog Number: 313185BL7313
Also Available in These Catalogs:
CRL83R Door and Window Replacement, PAGE 738W
CRL93A Architectural Hardware, PAGE CH080
DC14 Door Controls Catalog 2014, PAGE D460
Ship Via: UPS Oversize Rate
Shipping Weight: 11 lb (4.99kg)
Also Available in These Catalogs:
CRL83R Door and Window Replacement, PAGE 738W
CRL93A Architectural Hardware, PAGE CH080
DC14 Door Controls Catalog 2014, PAGE D460
Ship Via: UPS Oversize Rate
Shipping Weight: 11 lb (4.99kg)
CATALOG NUMBER DESCRIPTION
313185BL7313 CRL Jackson Model 3185 Mid-Panel Concealed Vertical Rod Exit Device With Top Latch Arrow Engraved on Push Pad Left Hand Reverse Bevel Dark Bronze Finish
313185BL7313 CRL Jackson Model 3185 Mid-Panel Concealed Vertical Rod Exit Device With Top Latch Arrow Engraved on Push Pad Left Hand Reverse Bevel Dark Bronze Finish
SPECIFICATIONS:
For Use With Minimum 1-3/4" (44 mm) Narrow, Medium, and Wide Stile Aluminum Doors
Concealed Easy-to-Use Hex Key Dogging or by Outside Cylinder
Wear Points Insulated by Nylon Sleeves and Rollers
Available With Either an Engraved "Arrow" or "Push"
3185 Concealed Vertical Rod Device - Top Latch
Positive Locking, Spring Loaded Top Latch
Requires Mortise Cylinder and No. 30821B Mounting Pad for Keyed Entry
MATERIALS:
Body and Push Pad: Extruded Aluminum
Mechanical Components: Stainless and Hardened Plated Steel
Latch and Strikes: Sintered Steel
For Use With Minimum 1-3/4" (44 mm) Narrow, Medium, and Wide Stile Aluminum Doors
Concealed Easy-to-Use Hex Key Dogging or by Outside Cylinder
Wear Points Insulated by Nylon Sleeves and Rollers
Available With Either an Engraved "Arrow" or "Push"
3185 Concealed Vertical Rod Device - Top Latch
Positive Locking, Spring Loaded Top Latch
Requires Mortise Cylinder and No. 30821B Mounting Pad for Keyed Entry
MATERIALS:
Body and Push Pad: Extruded Aluminum
Mechanical Components: Stainless and Hardened Plated Steel
Latch and Strikes: Sintered Steel
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting Glass Experts customer service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
