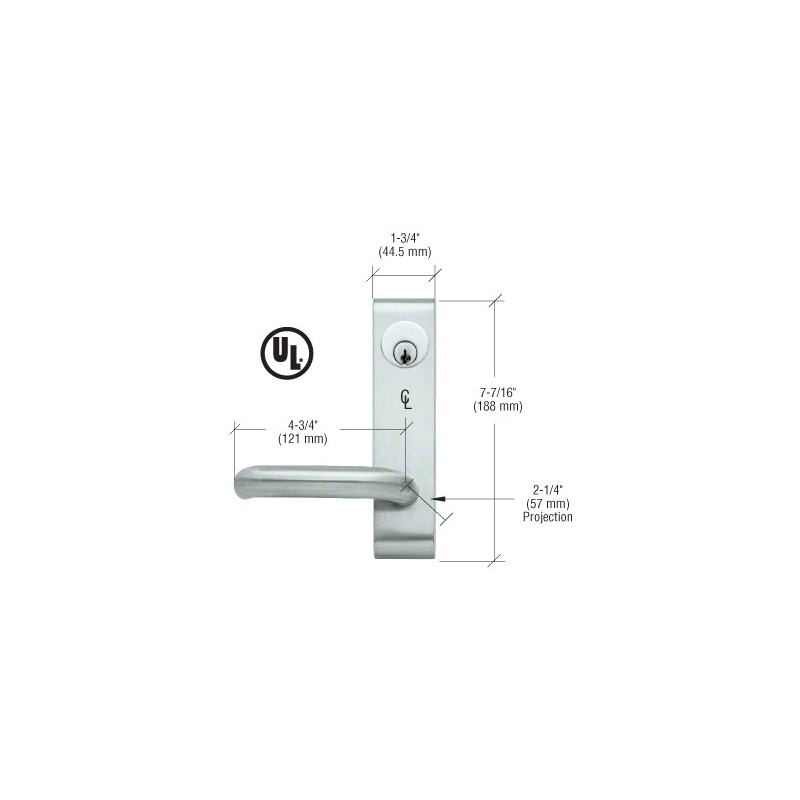

CRL Jackson® 8500 Narrow Stile Locking Outside Lever Trim with a Round Handle in Satin Aluminum - 8500LV01628
The CRL Jackson® 8500 Locking Outside Lever Trim is for use with the Jackson® 2086, 2085, 1285 and 1085 concealed vertical rod exit devices. Its rugged simplicity belies its versatility: It is non-handed and field reversible, classroom function with the key locking and unlocking the lever which comes as either rounded - 01 or flat -02. It uses a standard 1" cylinder with MS type cam such as DL2170SCKA. It can also be ordered as electric 24V DC for secure access control, 8500EL01313.
1-3/4" Wide for Narrow Stile Doors. Also Suitable for Medium and Wide Stile Aluminum and Hollow Metal Doors
Uses Standard 1" Cylinder with MS Type CAM
High Tensile Strength Aluminum Escutcheon and Lever
Plated Hardened Steel Mechanical Components
Non Handed Field Reversible
1-3/4" Wide for Narrow Stile Doors. Also Suitable for Medium and Wide Stile Aluminum and Hollow Metal Doors
Uses Standard 1" Cylinder with MS Type CAM
High Tensile Strength Aluminum Escutcheon and Lever
Plated Hardened Steel Mechanical Components
Non Handed Field Reversible
Catalog Number: 8500LV01628
Also Available in These Catalogs:
CRL83R Door and Window Replacement, PAGE 739W
CRL93A Architectural Hardware, PAGE CH081
DC14 Door Controls Catalog 2014, PAGE D461
Size: 1-3/4"
Ship Via: Can Ship UPS
Shipping Weight: 2 lb (907g)
Minimum Order: 1 Each
Also Available in These Catalogs:
CRL83R Door and Window Replacement, PAGE 739W
CRL93A Architectural Hardware, PAGE CH081
DC14 Door Controls Catalog 2014, PAGE D461
Size: 1-3/4"
Ship Via: Can Ship UPS
Shipping Weight: 2 lb (907g)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
8500LV012628 CRL Jackson 8500 Narrow Stile Locking Outside Lever Trim for a 2" Thick Door with a Round Handle Aluminum Finish
8500LV01628 CRL Jackson 8500 Narrow Stile Locking Outside Lever Trim with a Round Handle in Satin Aluminum
8500LV012628 CRL Jackson 8500 Narrow Stile Locking Outside Lever Trim for a 2" Thick Door with a Round Handle Aluminum Finish
8500LV01628 CRL Jackson 8500 Narrow Stile Locking Outside Lever Trim with a Round Handle in Satin Aluminum
SPECIFICATIONS:
Keyed Entry Requires use of CRL No. DRA10 Mortise Cylinder
ANSI Function 08 Key Locks or Unlocks Lever
SOLENOID:
Input: 24V DC
Current Inrush Required: 0.25 Amps
Continuous Holding: 0.30 Amps
MATERIALS:
Escutcheon: Extruded Aluminum
Lever: High Tensile Strength Aluminum
Mechanical Components: Hardened, Plated Steel
Keyed Entry Requires use of CRL No. DRA10 Mortise Cylinder
ANSI Function 08 Key Locks or Unlocks Lever
SOLENOID:
Input: 24V DC
Current Inrush Required: 0.25 Amps
Continuous Holding: 0.30 Amps
MATERIALS:
Escutcheon: Extruded Aluminum
Lever: High Tensile Strength Aluminum
Mechanical Components: Hardened, Plated Steel
