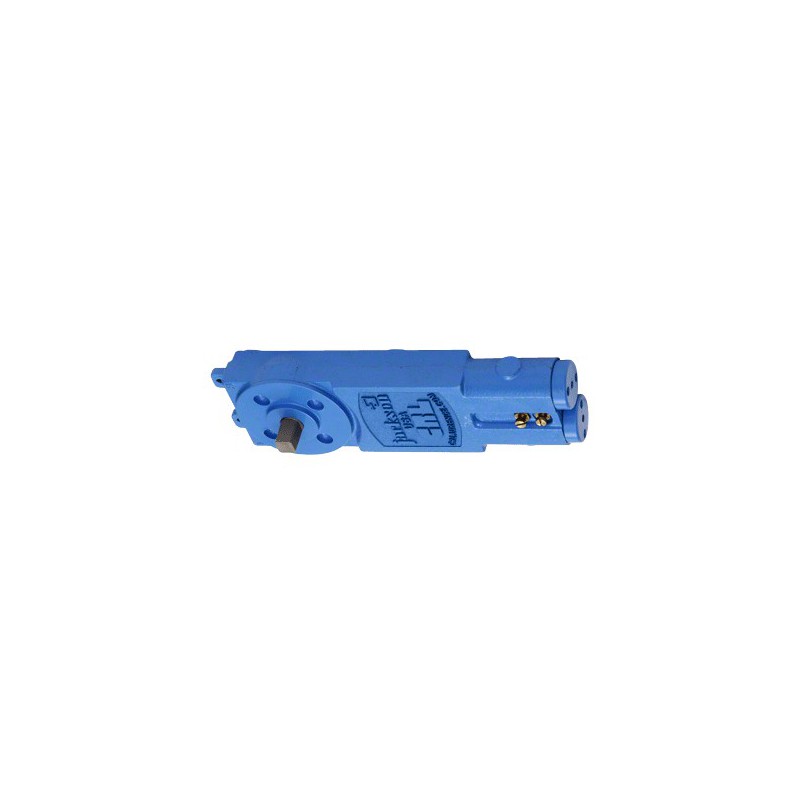

CRL Jackson® Adjustable Spring Power 105º No Hold Open Overhead Concealed Closer with 7/8" Extended Spindle - 20104M17
This CRL Jackson® Adjustable Spring Power Overhead Concealed Closer Body is designed for A.D.A. barrier-free applications and features a 7/8" extended spindle, the preferred length when used in conjunction with Patch Fittings or Rail Hardware on all glass doors. Its spring power is adjustable from a size 2 through 4 using Patented Dual Compression Technology providing finer spring tension adjustment and greater spring efficiency. With fully independent valves, this closer affords maximum adjustability when trying to balance building codes, stack pressure and keeping the door closed. It will easily retrofit most all fixed spring size Overhead Concealed Closers and is the choice of professionals the world over.
Adjustable Spring Power Size 1 (Barrier-Free) to Size 4 (Regular)
Can Retrofit Existing Fixed Spring Closers
Standard and Extended Spindle Models
5 Year Limited Warranty
How to Order
Adjustable Spring Power Size 1 (Barrier-Free) to Size 4 (Regular)
Can Retrofit Existing Fixed Spring Closers
Standard and Extended Spindle Models
5 Year Limited Warranty
How to Order
Catalog Number: 20104M17
Also Available in These Catalogs:
AH18 Architectural Hardware Catalog 2018, PAGE 309Z
CRL63A Architectural Hardware Master, PAGE 450H
CRL83R Door and Window Replacement, PAGE 689W
CRL93A Architectural Hardware, PAGE CH166
DC14 Door Controls Catalog 2014, PAGE D331
Spring Size: Adjustable
Type: 105 No Hold Open
Spindle: 7/8" Extended
Ship Via: Can Ship UPS
Shipping Weight: 10 lb (4.54kg)
Case Qty: 4
Minimum Order: 1 Each
Also Available in These Catalogs:
AH18 Architectural Hardware Catalog 2018, PAGE 309Z
CRL63A Architectural Hardware Master, PAGE 450H
CRL83R Door and Window Replacement, PAGE 689W
CRL93A Architectural Hardware, PAGE CH166
DC14 Door Controls Catalog 2014, PAGE D331
Spring Size: Adjustable
Type: 105 No Hold Open
Spindle: 7/8" Extended
Ship Via: Can Ship UPS
Shipping Weight: 10 lb (4.54kg)
Case Qty: 4
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION
20104M17 CRL Jackson Adjustable Spring Power 105 No Hold Open Overhead Concealed Closer with 7/8" Extended Spindle
20104M18 CRL Jackson Adjustable Spring Power 105 Hold Open Overhead Concealed Closer with 7/8" Extended Spindle
20104M19 CRL Jackson Adjustable Spring Power 90 No Hold Open Overhead Concealed Closer with 7/8" Extended Spindle
20104M20 CRL Jackson Adjustable Spring Power Multi-Size 90 Hold Open Extended Spindle Overhead Concealed Closer
20104M17 CRL Jackson Adjustable Spring Power 105 No Hold Open Overhead Concealed Closer with 7/8" Extended Spindle
20104M18 CRL Jackson Adjustable Spring Power 105 Hold Open Overhead Concealed Closer with 7/8" Extended Spindle
20104M19 CRL Jackson Adjustable Spring Power 90 No Hold Open Overhead Concealed Closer with 7/8" Extended Spindle
20104M20 CRL Jackson Adjustable Spring Power Multi-Size 90 Hold Open Extended Spindle Overhead Concealed Closer
A.D.A. NOTE: Although the Adjustable Spring Power Door Closer can be adjusted to compensate for site conditions, adequate closing force might not be obtained while complying with A.D.A. opening force requirements.
