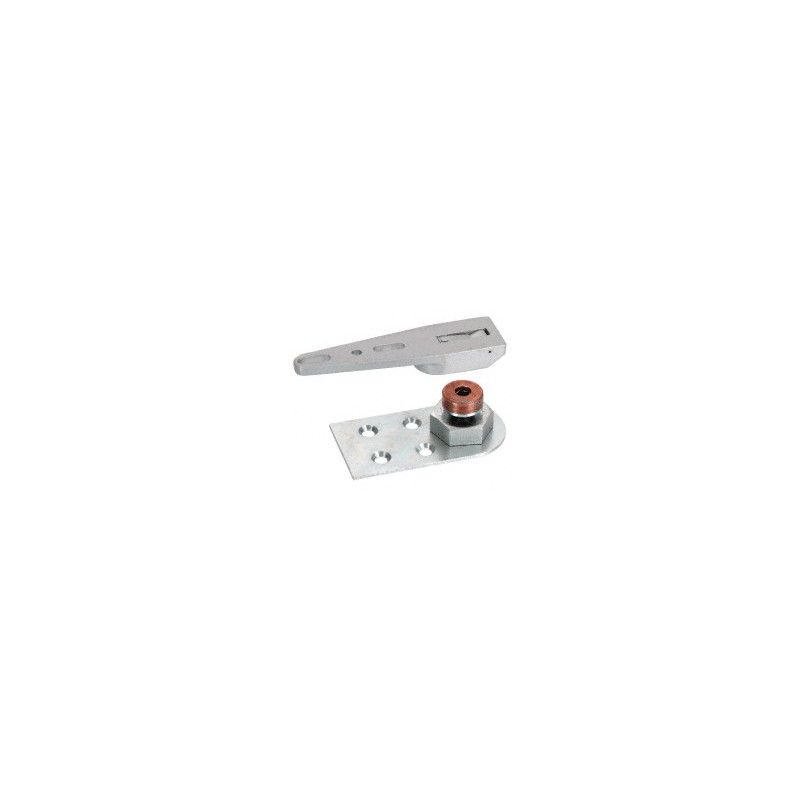

CRL Adjustable End-Load Floor Mount Bottom Pivot Set - CRL8010ADJ

Finish:
$45.59
Quantity

This CRL Door-On Adjustable Bottom Pivot Set is intended for use with end-load applications, and can be used with bottom door rails with a minimum of 1" (25 mm) depth. This pivot allows the door clearance to be adjusted from 1/4" to 1/2" (6 to 12 mm) with the door installed. Maximum weight capacity is 200 lbs. (90.7 kg).
Adjustable without Removing the Door
Bottom Clearance Adjustable from 1/4" to 1/2" (6 to 12 mm)
For Use with End-Load Arm Applications
Catalog Number: CRL8010ADJ
Also Available in These Catalogs:
AH18 Architectural Hardware Catalog 2018, PAGE 320Z
CRL63A Architectural Hardware Master, PAGE 462H
CRL83R Door and Window Replacement, PAGE 704W
CRL93A Architectural Hardware, PAGE CH174
DC14 Door Controls Catalog 2014, PAGE D346
Ship Via: Can Ship UPS
Shipping Weight: 1 lb (454g)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION
CRL8010ADJ CRL Adjustable End-Load Floor Mount Bottom Pivot Set
NOTE Cannot be used with CRL Low Profile Door Rails.
