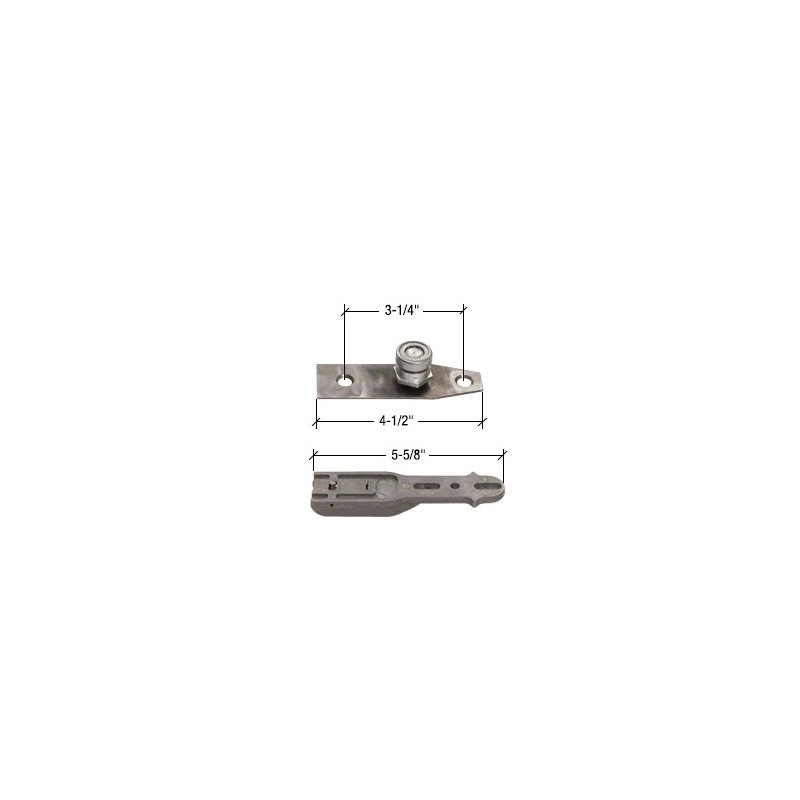

CRL Jackson® "GW" Type End-Load Floor Mount Bottom Pivot Set - 201570

This CRL Jackson® "GW" Type End-Load Floor Mount Bottom Pivot Set mounts directly to the floor, and is intended for use with End-Load applications. A 3/16" (5 mm) height adjustment is possible with the door installed. Height from bottom of plate to top of the pivot when installed is 1-1/4" (31.8 mm).
Designed for Use with Aluminum or Properly Prepared Wood and Hollow Metal Doors
For Floor Mount Installations
For Use with 1" (25 mm) Deep Bottom Rail in End-Load Applications
Catalog Number: 201570
Also Available in These Catalogs:
CRL14D Door and Entrance Catalog, PAGE 444D
CRL63A Architectural Hardware Master, PAGE 453H
CRL83R Door and Window Replacement, PAGE 694W
CRL93A Architectural Hardware, PAGE CH167
DC14 Door Controls Catalog 2014, PAGE D336
Overall Height: 1-1/4"
Ship Via: Can Ship UPS
CATALOG NUMBER DESCRIPTION
201570 CRL Jackson "GW" Type End-Load Floor Mount Bottom Pivot Set
Recommended Maximum Weight Capacity: 125 lbs. (56.7 kg).
