CRL Jackson® Light Duty Spring 105º Hold Open Overhead Concealed Closer With "GE" Side-Load Hardware Package - 21101GE06

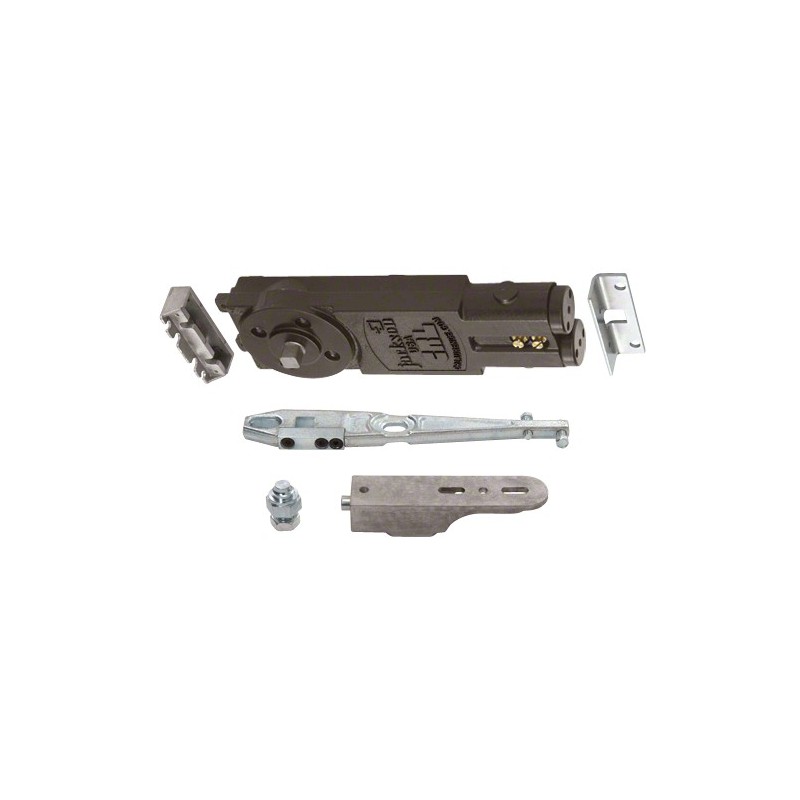

The CRL Jackson® 21101 Series Overhead Concealed Closer with "GE" Side-Load Hardware Package consists of a Closer mechanism, which depending on the selected spring size and function, is suitable for a range of doors from 30" to 48" (762 mm to 1.22 m) wide. The Closer is packaged complete with Cat. No. 20219 Mounting Clips, 20400B Side-Load Arm, Type "GE" 20944 Bottom Pivot Set for Threshold mounting, and complete installation instructions. The Closer has dual independent valves for closing operation (one valve for closing, one valve for latching). 90º and 105º Hold Open and No Hold Open models are available. Closers fit into standard 1-3/4" x 4" (or larger) header extrusions.
"GE" Center-Hung, Side-Load Hardware Package for Doors with 1/2" Deep Top Rails
Suitable for Doors From 30" to 48" (762 mm to 1.22 m) Wide
Five Year Limited Warranty U.L. Listed
How To Order
"GE" Center-Hung, Side-Load Hardware Package for Doors with 1/2" Deep Top Rails
Suitable for Doors From 30" to 48" (762 mm to 1.22 m) Wide
Five Year Limited Warranty U.L. Listed
How To Order
Catalog Number: 21101GE06
Also Available in These Catalogs:
This Item is Not Yet Shown in Any Printed Catalog.
Length: 11-5/8" (295 mm)
Width: 3-11/16" (94 mm)
Ship Via: Can Ship UPS
Shipping Weight: 10 lb (4.54kg)
Case Qty: 4
Minimum Order: 1 Each
Also Available in These Catalogs:
This Item is Not Yet Shown in Any Printed Catalog.
Length: 11-5/8" (295 mm)
Width: 3-11/16" (94 mm)
Ship Via: Can Ship UPS
Shipping Weight: 10 lb (4.54kg)
Case Qty: 4
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION
21101GE06 CRL Jackson Light Duty Spring 105 Hold Open Overhead Concealed Closer With "GE" Side-Load Hardware Package
21101GE07 CRL Jackson Light Duty Spring 90 No Hold Open Overhead Concealed Closer With "GE" Side-Load Hardware Package
21101GE06 CRL Jackson Light Duty Spring 105 Hold Open Overhead Concealed Closer With "GE" Side-Load Hardware Package
21101GE07 CRL Jackson Light Duty Spring 90 No Hold Open Overhead Concealed Closer With "GE" Side-Load Hardware Package
No additional product information available at this time.
