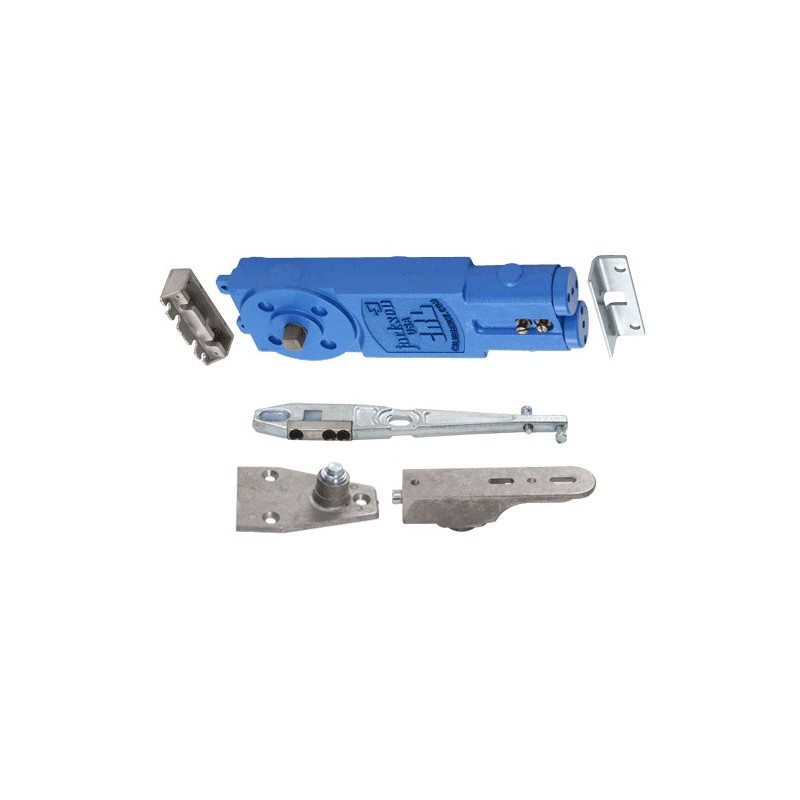

CRL Jackson® Adjustable Spring Power 90º Hold Open Overhead Concealed Closer with "S" Hardware Package - 21101S20
This CRL Jackson® Adjustable Spring Power Overhead Concealed Door Closer is available for A.D.A Barrier-Free applications. The Door Closer is adjustable in a range of Sizes from 1 (Barrier-Free) through 4 (Regular), allowing the spring power to be set for A.D.A. handicap barrier-free opening force requirements, as well as provide door control for a wide range of door types and sizes. This should make it your #1 choice for versatility and adaptability in a range of conditions.
Suitable for Doors from 30" to 48" (762 mm to 1.22 m) Wide to Meet A.D.A. Opening Force Requirements
Floor Mounted Pivot for 1-1/2" (38 mm) Deep Bottom Rail
3/16" (5 mm) Height Adjustment
UL Listed
5 Year Limited Warranty
How to Order
Suitable for Doors from 30" to 48" (762 mm to 1.22 m) Wide to Meet A.D.A. Opening Force Requirements
Floor Mounted Pivot for 1-1/2" (38 mm) Deep Bottom Rail
3/16" (5 mm) Height Adjustment
UL Listed
5 Year Limited Warranty
How to Order
Catalog Number: 21101S20
Also Available in These Catalogs:
USAL15 U.S. Aluminum Curtain Wall Catalog, PAGE 04H9
USAL14 U.S. Aluminum Architectural Design Manual, PAGE 05A9
AH18 Architectural Hardware Catalog 2018, PAGE 306Z
CRL14D Door and Entrance Catalog, PAGE 440D
CRL63A Architectural Hardware Master, PAGE 448H
CRL83R Door and Window Replacement, PAGE 686W
CRL93A Architectural Hardware, PAGE CH164
DC14 Door Controls Catalog 2014, PAGE D327
Spring Size: Adjustable
Type: 90 Hold Open
Ship Via: Can Ship UPS
Shipping Weight: 10 lb (4.54kg)
Minimum Order: 1 Each
Also Available in These Catalogs:
USAL15 U.S. Aluminum Curtain Wall Catalog, PAGE 04H9
USAL14 U.S. Aluminum Architectural Design Manual, PAGE 05A9
AH18 Architectural Hardware Catalog 2018, PAGE 306Z
CRL14D Door and Entrance Catalog, PAGE 440D
CRL63A Architectural Hardware Master, PAGE 448H
CRL83R Door and Window Replacement, PAGE 686W
CRL93A Architectural Hardware, PAGE CH164
DC14 Door Controls Catalog 2014, PAGE D327
Spring Size: Adjustable
Type: 90 Hold Open
Ship Via: Can Ship UPS
Shipping Weight: 10 lb (4.54kg)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION
21101S17 CRL Jackson Adjustable Spring Power 105 No Hold Open Overhead Concealed Closer with "S" Hardware Package
21101S18 CRL Jackson Adjustable Spring Power 105 Hold Open Overhead Concealed Closer with "S" Hardware Package
21101S19 CRL Jackson Adjustable Spring Power 90 No Hold Open Overhead Concealed Closer with "S" Hardware Package
21101S20 CRL Jackson Adjustable Spring Power 90 Hold Open Overhead Concealed Closer with "S" Hardware Package
21101S17 CRL Jackson Adjustable Spring Power 105 No Hold Open Overhead Concealed Closer with "S" Hardware Package
21101S18 CRL Jackson Adjustable Spring Power 105 Hold Open Overhead Concealed Closer with "S" Hardware Package
21101S19 CRL Jackson Adjustable Spring Power 90 No Hold Open Overhead Concealed Closer with "S" Hardware Package
21101S20 CRL Jackson Adjustable Spring Power 90 Hold Open Overhead Concealed Closer with "S" Hardware Package
A.D.A. NOTE: Although the Adjustable Spring Power Door Closer can be adjusted to compensate for site conditions, adequate closing force might not be obtained while complying with A.D.A. opening force requirements.
NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entry way due to over-extension of maximum allowable door swing.
NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entry way due to over-extension of maximum allowable door swing.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting Glass Experts customer service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
