CRL Jackson® Regular Duty Spring 105º Hold Open Overhead Concealed Closer With 'U' Offset Slide-Arm Hardware Package Dark Bronze - 21201U31302
Finish:
$294.88

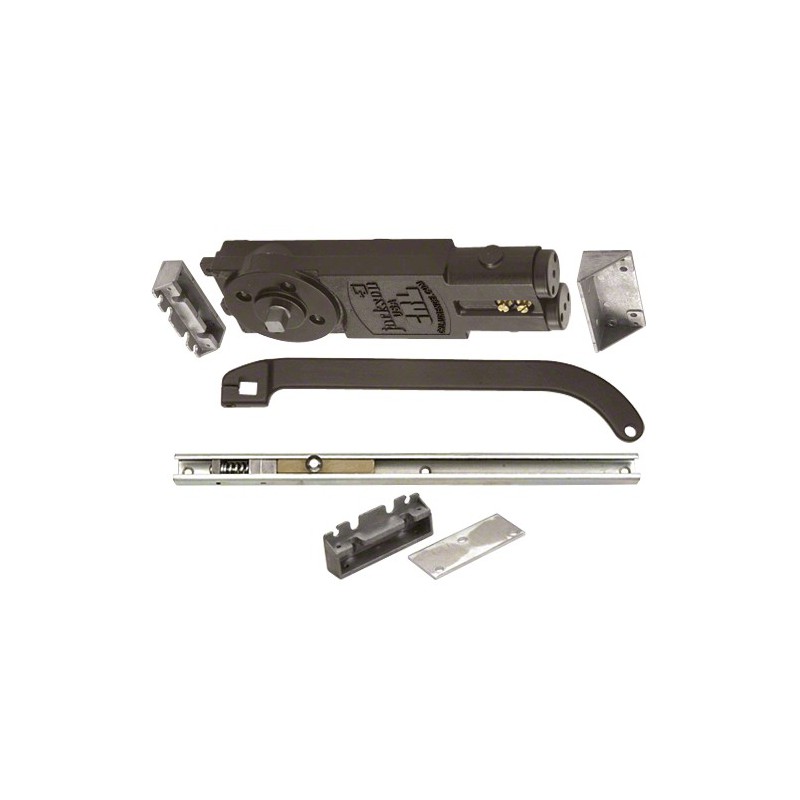

The CRL Jackson® 21201 Series Overhead Concealed Closer with 'U' Offset Slide-Arm Hardware Package consists of a Closer mechanism, which depending on the selected spring size and function, is suitable for a range of doors from 30" to 48" (762 mm to 1.22 m) wide. The Closer is packaged complete with Cat. No. 201387 Mounting Clips, 20942 Offset Arm Package, 20368 Slide Channel, and complete installation instructions. The Closer has dual independent valves for closing operation (one valve for closing, one valve for latching). 90º and 105º, Hold Open and No Hold Open models are available. Closers fit into standard 1-3/4" x 4" (or larger) header extrusions.
U' Offset Slide-Arm Hardware Package for Doors with 7/8" (22.2 mm) Shallow Top Rails
Suitable for Doors From 30" to 48" (762 mm to 1.22 m) Wide
Five Year Limited Warranty U.L. Listed
How To Order
U' Offset Slide-Arm Hardware Package for Doors with 7/8" (22.2 mm) Shallow Top Rails
Suitable for Doors From 30" to 48" (762 mm to 1.22 m) Wide
Five Year Limited Warranty U.L. Listed
How To Order
Catalog Number: 21201U31302
Also Available in These Catalogs:
USAL15 U.S. Aluminum Curtain Wall Catalog, PAGE 05H9
USAL14 U.S. Aluminum Architectural Design Manual, PAGE 06A9
CRL14D Door and Entrance Catalog, PAGE 442D
CRL93A Architectural Hardware, PAGE CH165
Length: 11-5/8" (295 mm)
Width: 3-11/16" (94 mm)
Ship Via: Can Ship UPS
Shipping Weight: 11 lb (4.99kg)
Case Qty: 4
Minimum Order: 1 Each
Also Available in These Catalogs:
USAL15 U.S. Aluminum Curtain Wall Catalog, PAGE 05H9
USAL14 U.S. Aluminum Architectural Design Manual, PAGE 06A9
CRL14D Door and Entrance Catalog, PAGE 442D
CRL93A Architectural Hardware, PAGE CH165
Length: 11-5/8" (295 mm)
Width: 3-11/16" (94 mm)
Ship Via: Can Ship UPS
Shipping Weight: 11 lb (4.99kg)
Case Qty: 4
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
21201U31301 CRL Jackson Regular Duty Spring 105 No Hold Open Overhead Concealed Closer with 'U' Offset Slide-Arm Hardware Package Dark Bronze
21201U31302 CRL Jackson Regular Duty Spring 105 Hold Open Overhead Concealed Closer With 'U' Offset Slide-Arm Hardware Package Dark Bronze
21201U31303 CRL Jackson Regular Duty Spring 90 No Hold Open Overhead Concealed Closer with 'U' Offset Slide-Arm Hardware Package Dark Bronze
21201U62801 CRL Jackson Satin Aluminum Regular Duty Spring 105 No Hold Open Overhead Concealed Closer with 'U' Offset Slide-Arm Hardware Package
21201U62802 CRL Jackson Aluminum Regular Duty Spring 105 Hold Open Overhead Concealed Closer with 'U' Offset Slide-Arm Hardware Package
21201U62803 CRL Jackson Satin Aluminum Regular Duty Spring 90 No Hold Open Overhead Concealed Closer with 'U' Offset Slide-Arm Hardware Package
21201U62804 CRL Jackson Satin Aluminum Regular Duty Spring 90 Hold Open Overhead Concealed Closer with 'U' Offset Slide-Arm Hardware Package
21201U31301 CRL Jackson Regular Duty Spring 105 No Hold Open Overhead Concealed Closer with 'U' Offset Slide-Arm Hardware Package Dark Bronze
21201U31302 CRL Jackson Regular Duty Spring 105 Hold Open Overhead Concealed Closer With 'U' Offset Slide-Arm Hardware Package Dark Bronze
21201U31303 CRL Jackson Regular Duty Spring 90 No Hold Open Overhead Concealed Closer with 'U' Offset Slide-Arm Hardware Package Dark Bronze
21201U62801 CRL Jackson Satin Aluminum Regular Duty Spring 105 No Hold Open Overhead Concealed Closer with 'U' Offset Slide-Arm Hardware Package
21201U62802 CRL Jackson Aluminum Regular Duty Spring 105 Hold Open Overhead Concealed Closer with 'U' Offset Slide-Arm Hardware Package
21201U62803 CRL Jackson Satin Aluminum Regular Duty Spring 90 No Hold Open Overhead Concealed Closer with 'U' Offset Slide-Arm Hardware Package
21201U62804 CRL Jackson Satin Aluminum Regular Duty Spring 90 Hold Open Overhead Concealed Closer with 'U' Offset Slide-Arm Hardware Package
No additional product information available at this time.
