CRL Jackson® Regular Duty Spring 90º No Hold Open Overhead Concealed Closer With 'U' Side-Load Hardware Package - 21101U03

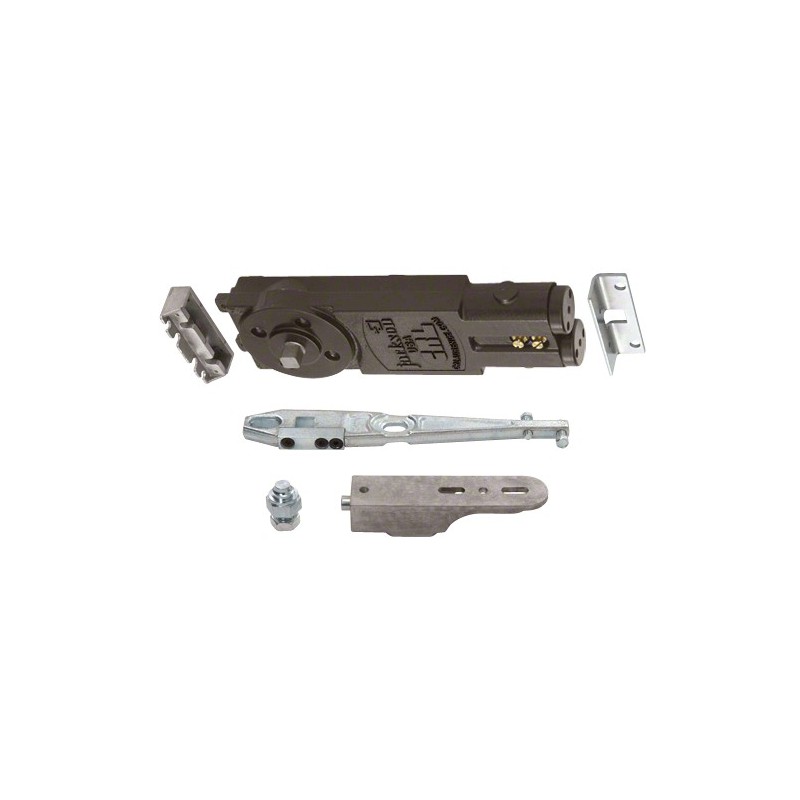

The CRL Jackson® 21101 Series Overhead Concealed Closer with 'U' Side-Load Hardware Package consists of a Closer mechanism, which depending on the selected spring size and function, is suitable for a range of doors from 30" to 48" (762 mm to 1.22 m) wide. The Closer is packaged complete with Cat. No. 201380 Mounting Clips, 20400B Side-Load Arm, Type "GE" 20944 Bottom Pivot Set for Threshold mounting, and complete installation instructions. The Closer has dual independent valves for closing operation (one valve for closing, one valve for latching). 90º and 105º, Hold Open and No Hold Open models are available. Closers fit into standard 1-3/4" x 4" (or larger) header extrusions.
U' Center-Hung, Side-Load Hardware Package For Doors with 1/2" Deep Top Rails
Suitable for Doors From 30" to 48" (762 mm to 1.22 m) Wide
Ten Year Limited Warranty U.L. Listed
How To Order
U' Center-Hung, Side-Load Hardware Package For Doors with 1/2" Deep Top Rails
Suitable for Doors From 30" to 48" (762 mm to 1.22 m) Wide
Ten Year Limited Warranty U.L. Listed
How To Order
Catalog Number: 21101U03
Also Available in These Catalogs:
AH18 Architectural Hardware Catalog 2018, PAGE 306Z
CRL83R Door and Window Replacement, PAGE 686W
CRL93A Architectural Hardware, PAGE CH164
DC14 Door Controls Catalog 2014, PAGE D327
Length: 11-5/8" (295 mm)
Width: 3-11/16" (94 mm)
Ship Via: Can Ship UPS
Shipping Weight: 10 lb (4.54kg)
Case Qty: 4
Minimum Order: 1 Each
Also Available in These Catalogs:
AH18 Architectural Hardware Catalog 2018, PAGE 306Z
CRL83R Door and Window Replacement, PAGE 686W
CRL93A Architectural Hardware, PAGE CH164
DC14 Door Controls Catalog 2014, PAGE D327
Length: 11-5/8" (295 mm)
Width: 3-11/16" (94 mm)
Ship Via: Can Ship UPS
Shipping Weight: 10 lb (4.54kg)
Case Qty: 4
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION
21101U01 CRL Jackson Regular Duty Spring 105 No Hold Open Overhead Concealed Closer with 'U' Side-Load Hardware Package
21101U02 CRL Jackson Regular Duty Spring 105 Hold Open Overhead Concealed Closer with 'U' Side-Load Hardware Package
21101U03 CRL Jackson Regular Duty Spring 90 No Hold Open Overhead Concealed Closer With 'U' Side-Load Hardware Package
21101U04 CRL Jackson Regular Duty Spring 90 Hold Open Overhead Concealed Closer With 'U' Side-Load Hardware Package
21101U01 CRL Jackson Regular Duty Spring 105 No Hold Open Overhead Concealed Closer with 'U' Side-Load Hardware Package
21101U02 CRL Jackson Regular Duty Spring 105 Hold Open Overhead Concealed Closer with 'U' Side-Load Hardware Package
21101U03 CRL Jackson Regular Duty Spring 90 No Hold Open Overhead Concealed Closer With 'U' Side-Load Hardware Package
21101U04 CRL Jackson Regular Duty Spring 90 Hold Open Overhead Concealed Closer With 'U' Side-Load Hardware Package
No additional product information available at this time.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting Glass Experts customer service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
