CRL Polished Stainless Laguna Series Wall Mount Bi-Parting Slider with Softbrake Kit - LSWM8PS

Finish: POLISHED STAINLESS
$1,635.36
Quantity

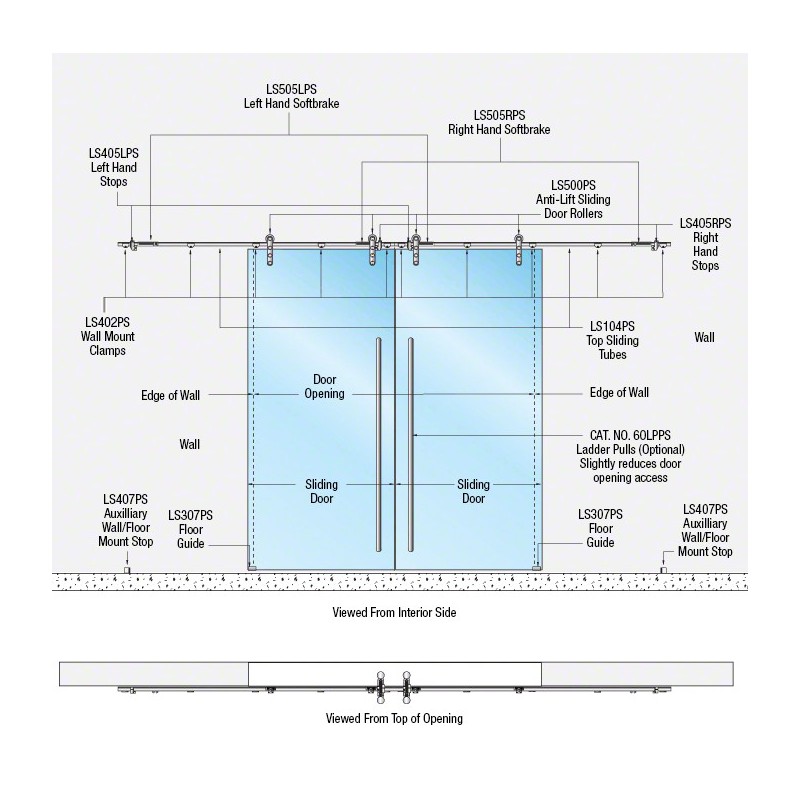

The CRL Laguna Series Wall Mount Bi-Parting Slider with Softbrake Kit contains all the components you will need (except the tempered glass) to complete the installation. The Softbrake braking system helps to control the last 2-1/4" (57 mm) of travel. This model is used in applications where you are attaching two bi-parting sliding doors to the inside face of a sufficiently reinforced wall.
Softbrake Braking System
Improved Anti-Lift Design
Assembly Contains All Necessary Hardware to Complete the Installation With 3/8" or 1/2" (10 or 12 mm) Tempered Glass
Alloy 316 Stainless Steel Construction
Spanner Wrench for Installation Sold Separately
Catalog Number: LSWM8PS
Also Available in These Catalogs:
AH18 Architectural Hardware Catalog 2018, PAGE 358Z
Color: Polished Stainless
Ship Via: No UPS - Common Carrier Only
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
LSWM8BS CRL Brushed Stainless Laguna Series Wall Mount Bi-Parting Slider with Softbrake Kit
LSWM8PS CRL Polished Stainless Laguna Series Wall Mount Bi-Parting Slider with Softbrake Kit
LSWM8MBL CRL Matte Black Laguna Series Wall Mount Bi-Parting Slider with Softbrake Kit
The Anti-Lift Sliding Door Top Rollers can be attached to the glass with either Surface Mount or Flush Mount Fittings (both are supplied). The Rollers have a 1/8" (3 mm) up or down vertical adjustment to aid in door alignment. This system should only be used with 3/8" or 1/2" (10 or 12 mm) tempered glass. Laminated glass cannot be used.
DOOR SYSTEM LIMITATIONS:
Maximum Door Weight: 220 Lbs. (100 kg)
Minimum Door Width: 37-13/16" (960 mm)
Maximum Door Width: 53-9/16" (1.36 m)
Maximum Door Height: 98-7/16" (2.50 m)
Maximum Track Length: 104" (2.64 m)
