CRL Brushed Stainless Laguna Series Single Sliding Door Glass Mount Installation Assembly - LSGM6BS

Finish: BRUSHED STAINLESS
$804.40
Quantity

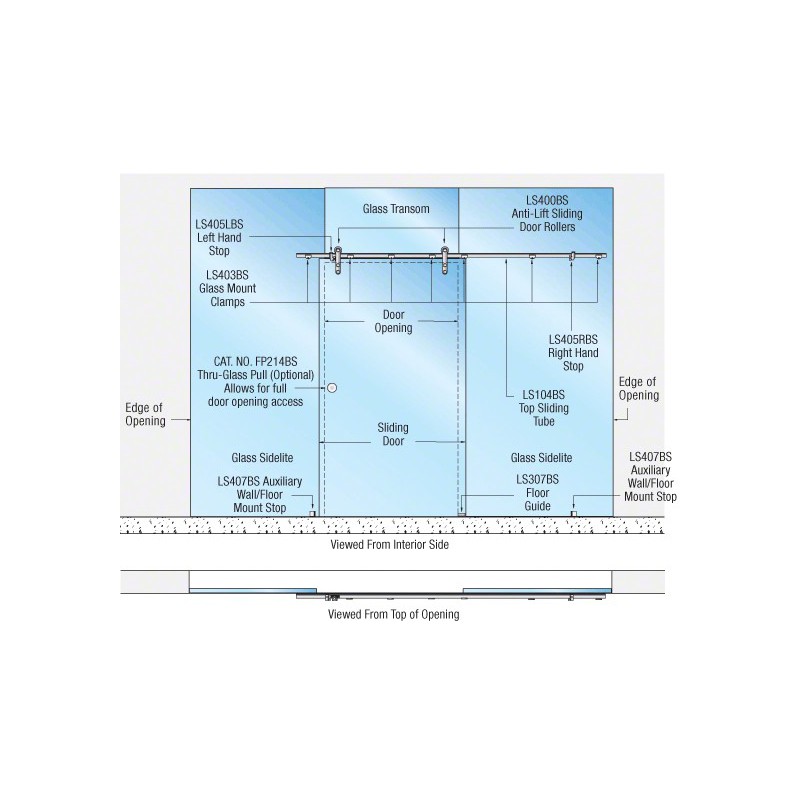

The CRL Laguna Series Glass Mount Single Slider Kit contains all the components you will need (except the tempered glass) to complete this style of installation. This model is used in applications where you are attaching a single sliding door in an 'all-glass' opening where you have a wall on one end next to the door, a glass transom above the door, and a fixed glass panel on the other side of the door. Bi-parting double doors are not possible for this application.
New Anti-Lift Design
Assembly Contains All Necessary Hardware to Complete the Installation with 3/8" or 1/2" (10 or 12 mm) Tempered Glass
Stainless Steel Construction
Spanner Wrench for Installation Sold Separately
Catalog Number: LSGM6BS
Also Available in These Catalogs:
AH18 Architectural Hardware Catalog 2018, PAGE 362Z
CRL93A Architectural Hardware, PAGE CH233
Color: Brushed Stainless
Ship Via: No UPS - Common Carrier Only
Shipping Weight: 30 lb (13.61kg)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
LSGM6BS CRL Brushed Stainless Laguna Series Single Sliding Door Glass Mount Installation Assembly
LSGM6MBL CRL Matte Black Laguna Series Single Sliding Door Glass Mount Installation Assembly
LSGM6PS CRL Polished Stainless Laguna Series Single Sliding Door Glass Mount Installation Assembly
NOTE: Bi-parting double doors are not possible for this application.
The Anti-Lift Sliding Door Top Rollers can be attached to the glass with either Surface Mount or Flush Mount Fittings (both are supplied). The Rollers have a 1/8" (3.2 mm) up or down vertical adjustment to aid in door alignment. This system should only be used with 3/8" or 1/2" (10 or 12 mm) tempered glass. Laminated glass cannot be used.
Complete glass fabrication details and drawings are available by contacting our Technical Sales Department.
DOOR SYSTEM LIMITATIONS:
Maximum Door Weight: 220 Lbs. (100 kg)
Minimum Door Width: 37-13/16" (960 mm)
Maximum Door Width: 53-9/16" (1.36 m)
Maximum Door Height: 98-7/16" (2.50 m)
Maximum Track Length: 104" (2.64 m)
EACH KIT CONTAINS:
Two CRL Laguna Series Anti-Lift Top Rollers with Glass Fittings
One CRL Laguna Series Top Sliding Tube with End Caps at 104" (2.64 m) in Length
One CRL Laguna Series Top Sliding Tube Wall Mount End Cap (Fastener to Wall is Not Included)
Six CRL Laguna Series Top Sliding Tube Glass Mount Clamps
Two CRL Laguna Series Door Stops (One Left Hand and One Right Hand)
One CRL Laguna Series Bottom Floor Guide
