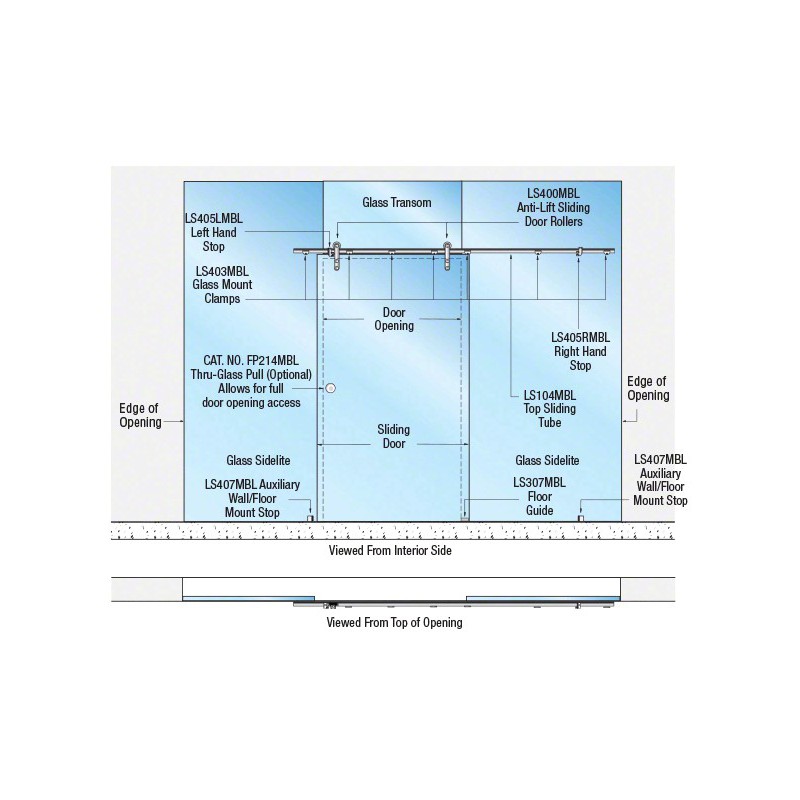

CRL Matte Black Laguna Series Single Sliding Door Glass Mount Installation Assembly - LSGM6MBL

NOTE: Bi-parting double doors are not possible for this application.
The Anti-Lift Sliding Door Top Rollers can be attached to the glass with either Surface Mount or Flush Mount Fittings (both are supplied). The Rollers have a 1/8" (3.2 mm) up or down vertical adjustment to aid in door alignment. This system should only be used with 3/8" or 1/2" (10 or 12 mm) tempered glass. Laminated glass cannot be used.
Complete glass fabrication details and drawings are available by contacting our Technical Sales Department.
DOOR SYSTEM LIMITATIONS:
Maximum Door Weight: 220 Lbs. (100 kg)
Minimum Door Width: 37-13/16" (960 mm)
Maximum Door Width: 53-9/16" (1.36 m)
Maximum Door Height: 98-7/16" (2.50 m)
Maximum Track Length: 104" (2.64 m)
EACH KIT CONTAINS:
Two CRL Laguna Series Anti-Lift Top Rollers with Glass Fittings
One CRL Laguna Series Top Sliding Tube with End Caps at 104" (2.64 m) in Length
One CRL Laguna Series Top Sliding Tube Wall Mount End Cap (Fastener to Wall is Not Included)
Six CRL Laguna Series Top Sliding Tube Glass Mount Clamps
Two CRL Laguna Series Door Stops (One Left Hand and One Right Hand)
One CRL Laguna Series Bottom Floor Guide
