CRL Brushed Nickel Madrid Series Hinge Kit - MA01BN

The CRL Madrid Series of Hinges gives the display and cabinet builder a versatile and functional pivot hinge that does not require glass fabrication. The unique hinge design utilizes tapered shims to hold the glass snug. Because there are no holes to drill, or notches to cut in the glass, the Madrid is one of the easiest-to-mount hinges you will ever use. For most display and cabinet applications, the Madrid's pivot can be mounted directly into the cabinet top and base to provide a quick and easy installation.
Notch Free Top and Bottom Pivot Hinges with No Glass Fabrication Required
Top and Bottom Mount Installation Exposes More Glass, Less Hardware
Kit Fits 3/8" Glass
Use Monolithic Tempered Glass
Catalog Number: MA01BN
Also Available in These Catalogs:
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 131J
SD16 Frameless Shower Door Hardware 2015, PAGE 138S
CRL53R Glass & Glazing Catalog, PAGE 401G
CRL93A Shower Door, PAGE SD056
Color: Brushed Nickel
Glass Thickness: 3/8"
Ship Via: Can Ship UPS
Shipping Weight: 2 lb (907g)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
MA01CH CRL Polished Chrome Madrid Series Hinge Kit
MA010RB CRL Oil Rubbed Bronze Madrid Series Hinge Kit
MA01BN CRL Brushed Nickel Madrid Series Hinge Kit
You must order the Basic Kit and specify the finish you desire. The Basic Kit contains everything you will need for your installation except for the Top Mounting Hardware, which may be purchased separately. The Basic Kits are available for two thickness of glass, 5/16" or 3/8". Pick the appropriate one which meets your needs.

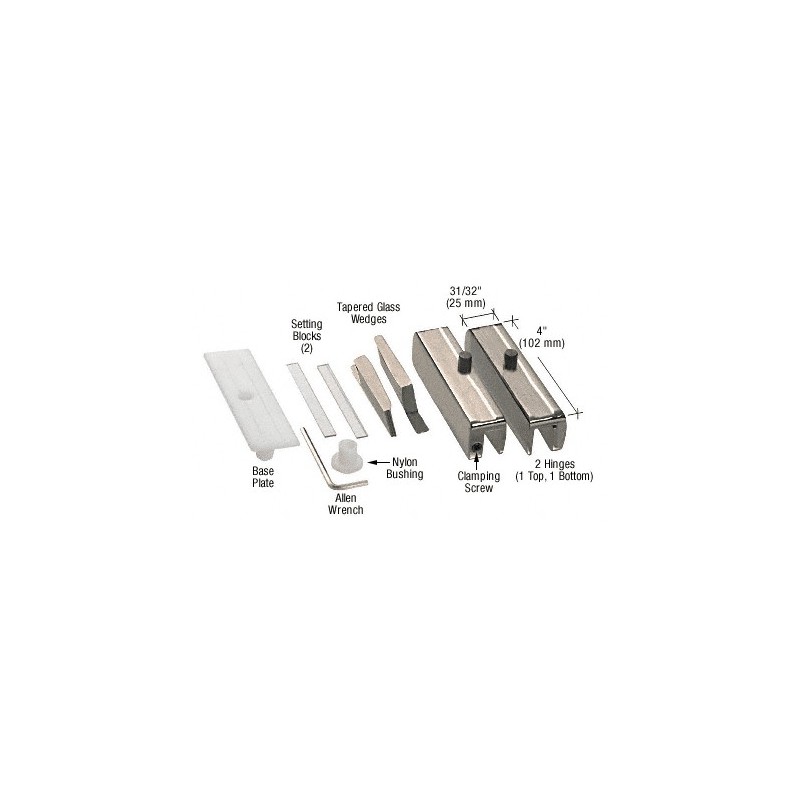

Kit Includes: Tapered Base Plate Shim; Base Plate; Setting Blocks; 2 Hinges (1 Top, 1 Bottom); Allen Wrench; Nylon Bushing; and Tapered Glass Shims.
SPECIFICATIONS:
Glass Thicknesses: 5/16" or 3/8" Tempered Safety Glass
Construction:Solid Brass
Hinge Swings: Full Rotation
Closing Type: Precise Closing to Zero Degrees
Maximum Door Size: Width 36" (914 mm); Weight 120 Lbs. (54 kg)
Includes: Gaskets and Mounting Hardware
