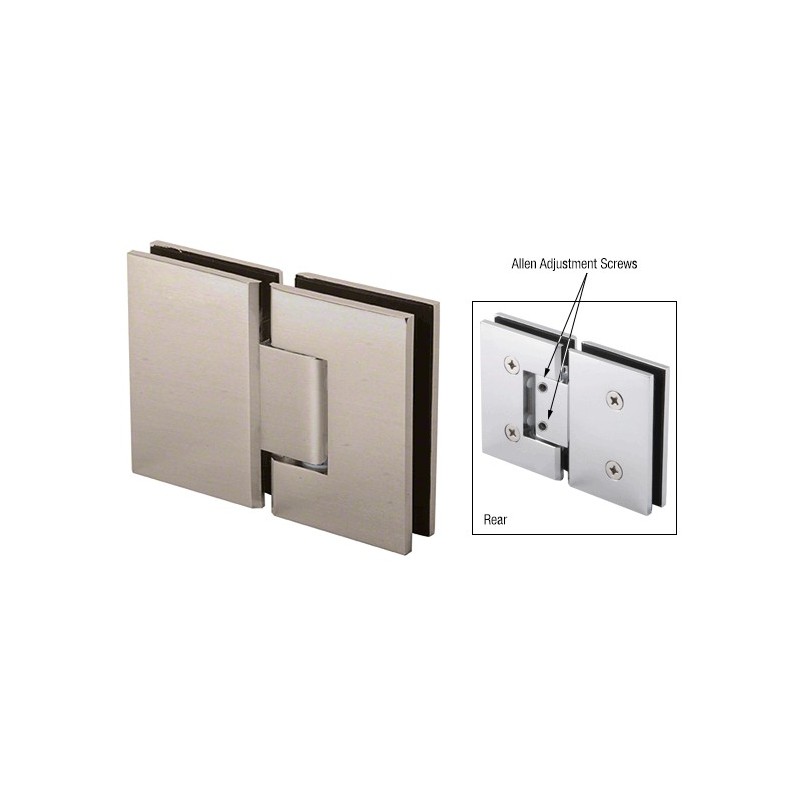

CRL Brushed Nickel 180 Degree Adjustable Glass-to-Glass Melbourne Hinge - MEL380BN
CRL Melbourne Series Hinges feature large hinge plates that provide more clamping force. The required simple rectangular cut-out and inset style gasket system allow ease of installation. Constructed of solid brass, the Melbourne Series offers three versions of wall mount models, a 180 degree glass-to-glass model, and replacement cover plates (for MEL024 only) to conceal the rear hinge plate screws. For use with 1/2", 3/8", and 5/16" (12, 10, and 8 mm) thick tempered glass. Stocked in three popular finishes, with custom finished available.
Large Hinge Plates Provide More Clamping Force
Inset Style Gasket System Allows Ease of Installation
Glass Fabrication Required is a Simple Rectangular Cut-out
For Use With 1/2" 3/8", and 5/16" (12, 10, and 8 mm) Thick Tempered Glass
Large Hinge Plates Provide More Clamping Force
Inset Style Gasket System Allows Ease of Installation
Glass Fabrication Required is a Simple Rectangular Cut-out
For Use With 1/2" 3/8", and 5/16" (12, 10, and 8 mm) Thick Tempered Glass
Catalog Number: MEL380BN
Also Available in These Catalogs:
Color: Brushed Nickel
Ship Via: Can Ship UPS
Minimum Order: 1 Each
Also Available in These Catalogs:
Color: Brushed Nickel
Ship Via: Can Ship UPS
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
MEL380BN CRL Brushed Nickel 180 Degree Adjustable Glass-to-Glass Melbourne Hinge
MEL380MBL CRL Matte Black 180 Degree Adjustable Glass-to-Glass Melbourne Hinge
MEL380BN CRL Brushed Nickel 180 Degree Adjustable Glass-to-Glass Melbourne Hinge
MEL380MBL CRL Matte Black 180 Degree Adjustable Glass-to-Glass Melbourne Hinge
Using two hinges with 1/2", 3/8", and 5/16" glass (12, 10, and 8 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 30" (762 mm).
Using three hinges with 1/2", 3/8", and 5/16" glass (12, 10, and 8 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 34" (864 mm).
SPECIFICATIONS:
Glass Thickness: 1/2", 3/8", and 5/16" (12, 10, and 8 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 degrees in and 90 degrees out (at factory set position).
Closing Type: Self-Centering when within 15 degrees of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
For more information contact CRL Shower Door Technical Sales Department.
Using three hinges with 1/2", 3/8", and 5/16" glass (12, 10, and 8 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 34" (864 mm).
SPECIFICATIONS:
Glass Thickness: 1/2", 3/8", and 5/16" (12, 10, and 8 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 degrees in and 90 degrees out (at factory set position).
Closing Type: Self-Centering when within 15 degrees of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
For more information contact CRL Shower Door Technical Sales Department.
